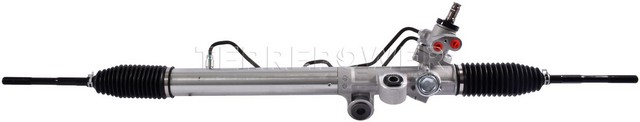

TERREPOWER N103-0264 rack and pinion for the 2006-2010 Hummer H3 and other vehicles turns steering wheel rotation into hydraulically assisted wheel movement. This new hydraulic rack and pinion is designed for dependable service across the life of the vehicle.
- Hydraulic power steering type with 3.25 turns lock to lock
- Inner tie rods and bushings included
- 11 mm thread on both the pressure port and the return port
- Two mounting holes, 73.152 mm (2.88 in) apart
Quick facts
- Part: TERREPOWER N103-0264 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2006-2010 Hummer H3 and other vehicles
- Condition: New
A rack and pinion that leaks fluid, steers heavily or feels loose at the wheel can be worn. Those signs alone do not prove it is the problem, since a worn outer tie rod can cause play too. If the rack and pinion is the cause, this rack and pinion assembly replaces it.
Fits
It fits the 2006-2010 Hummer H3 and the 2009-2010 Hummer H3T. The steering takes one rack and pinion per vehicle, and this listing is that one.
Specifications
Fit and size
- Quantity per vehicle: 1
- End to end length: 1236.66 mm (48.688 in)
- Mounting holes: 2, 73.152 mm (2.88 in) apart

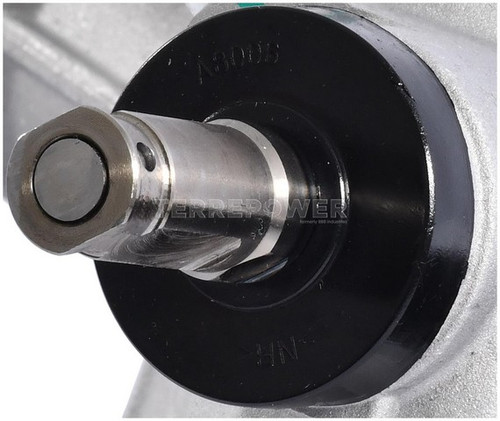

- Steering input shaft diameter: 19.05 mm (0.75 in)
- Steering input shaft length: 47.63 mm (1.875 in)
Build and materials
- Type: Hydraulic
- Condition: New
- Country of origin: China
In the box
One rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Interchange: 19320558 · 94718482 · 94725465
This part cross-references / interchanges with the following part numbers:
19320558, 94718482, 94725465
Frequently Asked Questions
Is this a rack and pinion for the 2006-2010 Hummer H3 and the 2009-2010 Hummer H3T?
Yes. TERREPOWER N103-0264 fits the 2006-2010 Hummer H3 and the 2009-2010 Hummer H3T.
Are the tie rods included with this rack and pinion?
The inner tie rods and bushings are included. The outer tie rods are not, so they are ordered separately.
What size are the power steering port threads on this rack and pinion?
Both the pressure port and the return port have an 11 mm thread.
Can a fluid leak at the rack and pinion mean it needs replacing?
It can. A leak, heavy steering or play in the wheel can mean the rack and pinion is worn, and steering problems should be checked promptly rather than driven on.
Is 94718482 an interchange number for TERREPOWER N103-0264?
Yes. TERREPOWER N103-0264 replaces the 94718482 rack and pinion.
