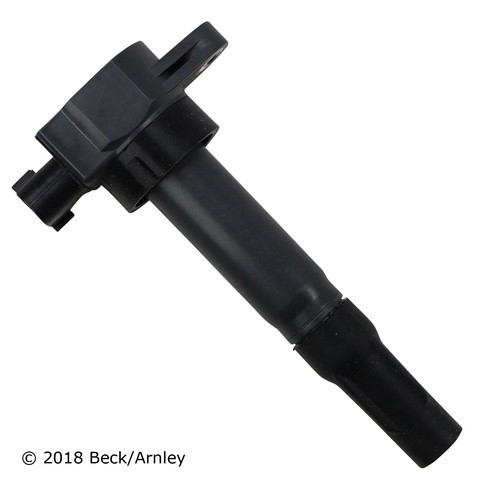

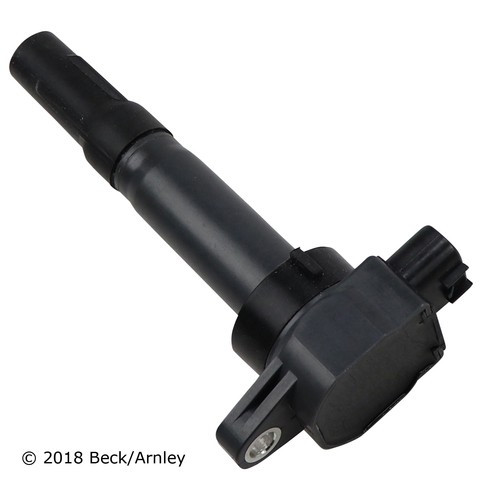

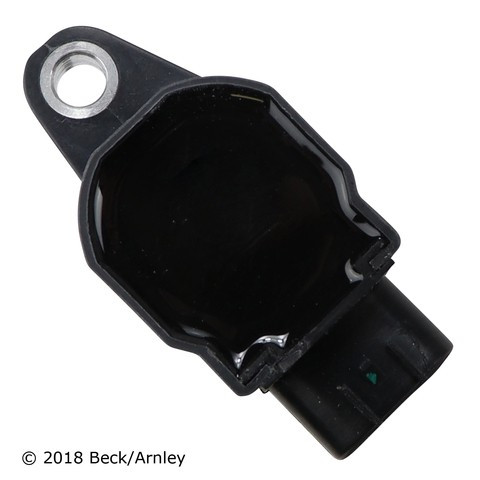

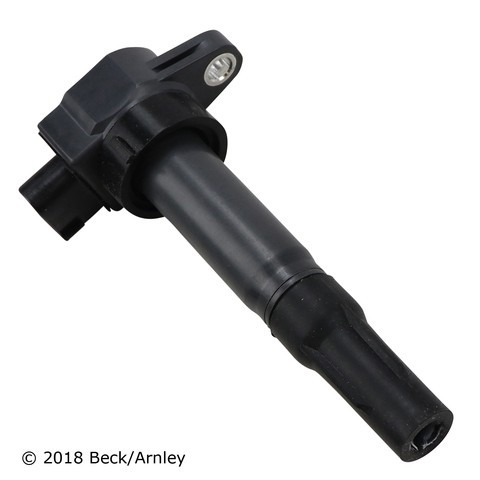

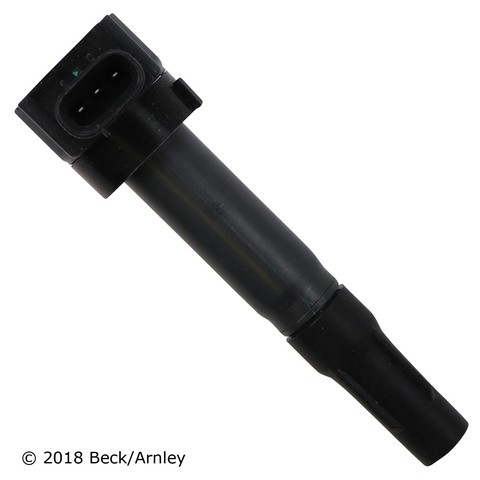

Beck/Arnley 178-8504 direct ignition coil for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles steps battery voltage up to fire a spark plug. This listing is a single coil.
A misfire, rough idle or hard start can mean a coil is weakening. Before you replace one, rule out a worn spark plug or a loose, damaged connector, since either can mimic a bad coil.
It fits the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, the 2010-2013 Suzuki Kizashi 4-cylinder 2.4L and the 2010-2013 Suzuki SX4 4-cylinder 2.0L, and it matches OE form, fit and function. Each of these engines takes one coil per cylinder, four in all.
Fit and size
Build and materials
Interchange: E1134 · UF634 · 3340051K20 · 3340051K40 · C1732
This part cross-references / interchanges with the following part numbers:
Does the Beck/Arnley 178-8504 fit a 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L?
Yes. Beck/Arnley 178-8504 fits the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, and that engine takes four coils, one per cylinder.
Does the Beck/Arnley direct ignition coil use copper windings?
Yes. Both the primary and secondary windings are made from copper, and the coil is made from materials that withstand high temperatures.
Is UF634 the same coil as Beck/Arnley 178-8504?
Yes. UF634 is one of the numbers Beck/Arnley 178-8504 replaces, along with E1134, 3340051K20, 3340051K40 and C1732.
Can a rough idle or misfire mean this ignition coil is failing?
Yes, a misfire, rough idle or hard start can mean a coil is weak. Testing it needs the engine running, so a shop can do that for you.
Is this ignition coil the right one for the 2010-2013 Suzuki SX4 4-cylinder 2.0L?
Yes. The 2010-2013 Suzuki SX4 4-cylinder 2.0L is on the fitment list, and its L4-2.0L engine takes four of these coils.
