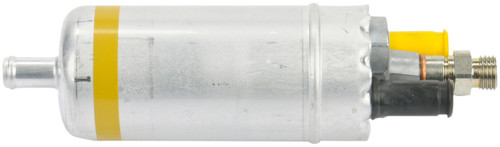

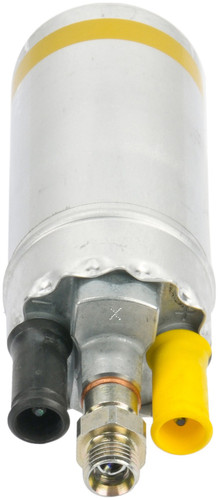

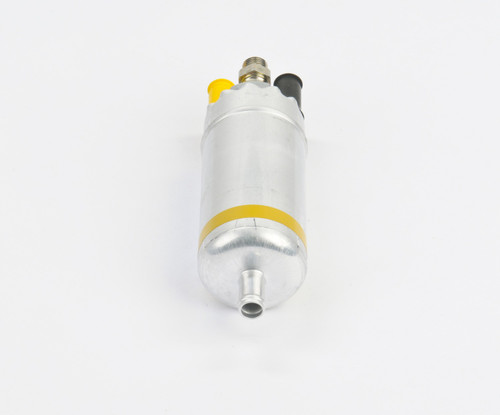

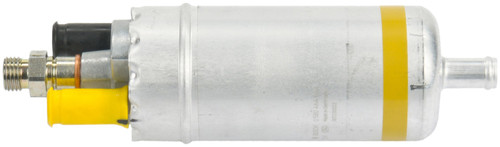

Bosch 69593 electric fuel pump for the 1997-1998 Volvo S90 6-cylinder 2.9L and other vehicles sends fuel from the tank toward the engine. It mounts outside the fuel tank and is a pump only, not a module.
- Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise and hot-start problems of older pump designs
- Carbon commutators made of a special graphite compound reduce wear on the armature and prevent effects from ethanol
- Designed to operate in extreme temperatures, at low fuel levels and in harsh underbody conditions
- Supplies the required pressure and fuel flow with minimum current draw, which lowers fuel consumption
- Electromagnetic shielding prevents on-board electronic interference from the pump
- Function tested at the end of the line, and tested to a minimum of 150k miles
Quick facts
- Part: Bosch 69593 electric fuel pump
- Fits: 1997-1998 Volvo S90 6-cylinder 2.9L and other vehicles
- Position: In-line
- Condition: New
A worn pump can show up as hard starting, stalling or a loss of power, though a clogged fuel filter or a failing fuel pump relay can be behind the same signs, so find the cause before swapping the pump.
Fits
This in-line fuel pump fits the 1997-1998 Volvo S90 6-cylinder 2.9L, the 1991-1995 Volvo 940 4-cylinder 2.3L and the 1992-1994 Volvo 960 6-cylinder 2.9L, along with other Volvo models. The 1997-1998 Volvo S90 6-cylinder 2.9L takes one pump. If your Volvo is not named here, look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: in-line
- Mounting: external, outside the fuel tank
- Quantity per vehicle: 1
- Inlet count: 1
Build and materials
- Type: electric, pump only
- Self-priming: yes
- Terminals: male
- Commutators: carbon, graphite compound
- Condition: New
In the box
One electric fuel pump. A wire harness, filter, gasket or seal, and lock ring are not included.
Installation notes
- Designed for plug-and-play installation.
Interchange: 1389449 · 9142044
Frequently Asked Questions
Does the Bosch 69593 fit the 1991-1995 Volvo 940 4-cylinder 2.3L?
Yes. Bosch 69593 fits the 1991-1995 Volvo 940 4-cylinder 2.3L, and you can check your own year and engine in the "Vehicles it fits" section.
Is the Bosch 69593 a universal electric fuel pump?
No. Bosch 69593 is vehicle-specific, made for particular Volvo models, so it is not a universal electric fuel pump.
Is this Bosch electric pump a pump only or a full module?
It is a pump only. Bosch 69593 comes as one electric fuel pump, without a wire harness, filter, gasket or seal, or lock ring.
Does this in-line fuel pump go inside the fuel tank?
No. This pump is external, mounted outside the tank, and it is self-priming.
What are the carbon commutators in this fuel pump made of?
Bosch 69593 uses carbon commutators made of a special graphite compound, which reduce wear on the armature and prevent effects from ethanol.
