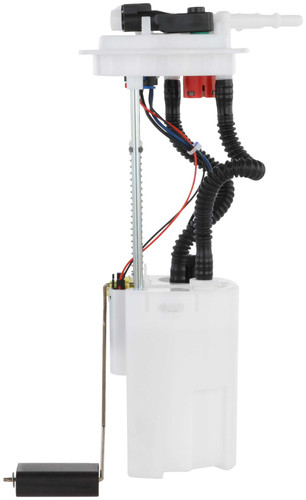

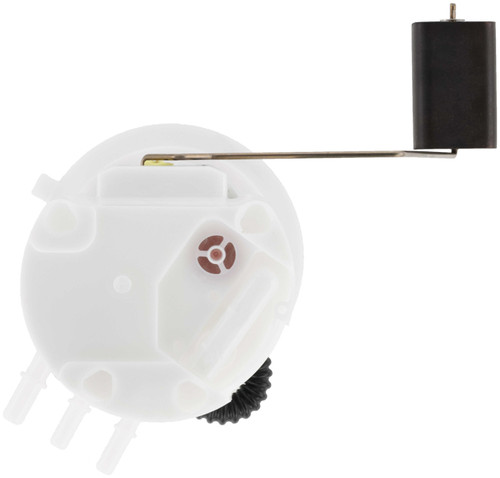

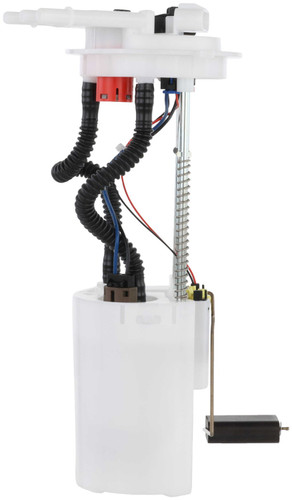

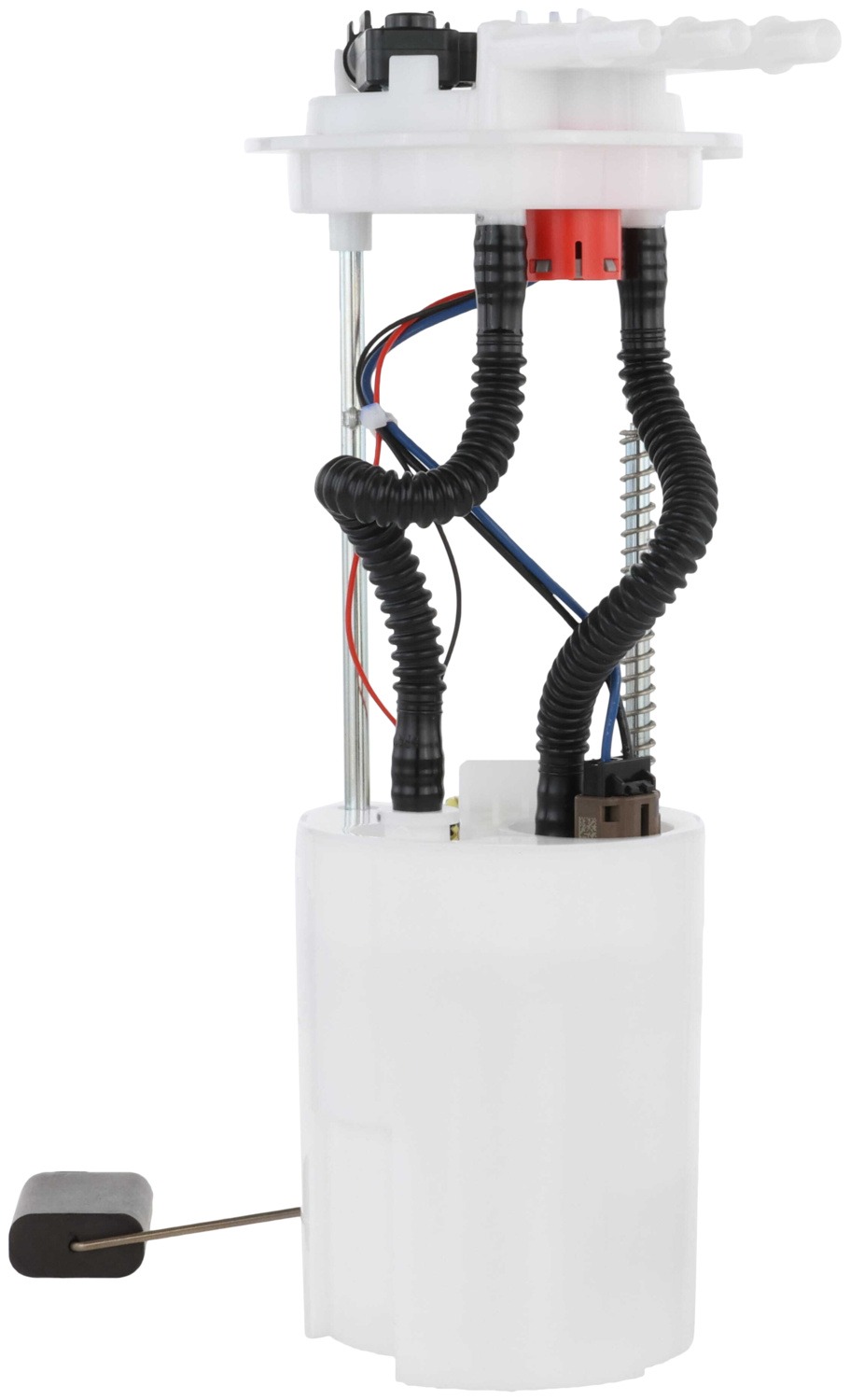

Bosch 67378 fuel pump module for the 1998-2003 Chevrolet Blazer V6 4.3L and other vehicles moves fuel from inside the tank to the fuel injection system. This in-tank electric module, also called a fuel pump assembly, is built on the same production lines and tested to the same quality standards as Bosch OE fuel pumps.
- Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise and hot-start problems associated with older pump designs
- Designed to operate in extreme temperatures and under low fuel conditions
- Every pump is function tested at the end of the production line
- Two layers of filtration protect the pump from debris and fuel system contamination
- Electromagnetic shielding prevents on-board electronic interference from the fuel pump
Quick facts
- Part: Bosch 67378 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2003 Chevrolet Blazer V6 4.3L and other vehicles
- Material: Mixed
- Condition: New
A worn pump can show up as hard starting, sputtering or stalling, or a louder whine from the tank, though each of those can have other causes. Before replacing the module, look at the fuel pump fuse with the ignition off, and leave electrical supply and fuel pressure tests to a shop, since a blown fuse or a wiring fault can look much the same.
Fits
It is a direct-fit replacement for the 1998-2003 Chevrolet Blazer V6 4.3L, the 1998-2001 GMC Jimmy V6 4.3L and the 1998-2001 Oldsmobile Bravada V6 4.3L, and each takes a single module. This listing is one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: in-tank
- Outlet outside diameter: 11.1 mm
- Inlet outside diameter: 11.1 mm
- Outlets: 1
- Inlets: 1
- Voltage: 12 V DC
- Connector: 1 square/rectangular connector, 4 blade terminals
Build and materials
- Pump design: electric, self-priming
- Fuel delivery type: fuel injection, gasoline
- Material: Mixed
- Housing material: polymer / plastic
- Gasket or seal material: synthetic or NBR rubber
- Condition: New
- Country of origin: China
In the box
One module assembly that includes the strainer, fuel filter, fuel sending unit, regulator, fuel tank pressure sensor and an O-ring. Mounting hardware, the lock ring, the suction pipe and a wiring harness are not included, so plan on new mounting hardware and a new lock ring rather than reusing the old ones.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 19331269
Frequently Asked Questions
Does the Bosch 67378 fuel pump module fit a 1998-2001 GMC Jimmy V6 4.3L?
Yes. Bosch 67378 fits the 1998-2001 GMC Jimmy V6 4.3L, and that vehicle takes one module.
Does this Bosch fuel pump module include the fuel sending unit and strainer?
Yes. The module assembly includes the strainer, fuel sending unit, regulator and fuel filter. The lock ring and mounting hardware are not included.
What are the inlet and outlet sizes on this in-tank fuel pump module?
Bosch 67378 has one inlet and one outlet, each with an 11.1 mm outside diameter. It is an electric pump that runs on 12 volts DC.
How can I tell if this fuel pump module is wearing out?
Stalling, a loss of power under load or a louder whine from the tank can mean the pump is wearing out. A shop can test fuel pressure and the pump's electrical supply.
Is this fuel pump module plug-and-play?
Yes, it is designed for simple plug-and-play installation. Mounting hardware, the lock ring and a wiring harness are not included.
