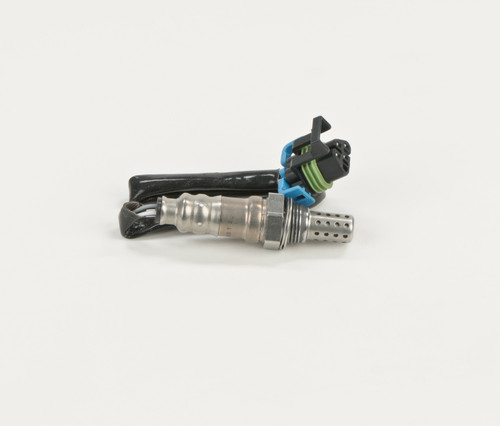

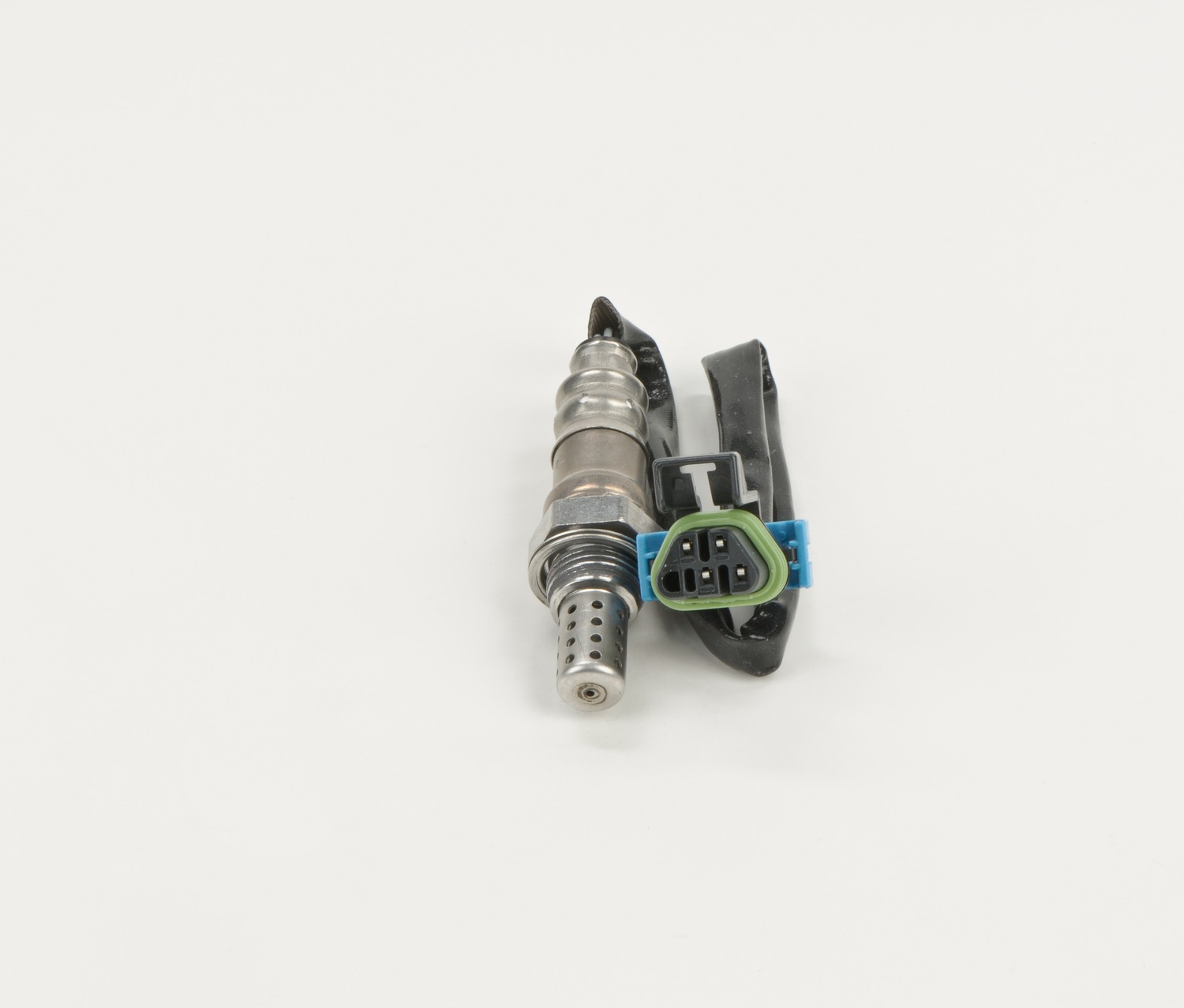

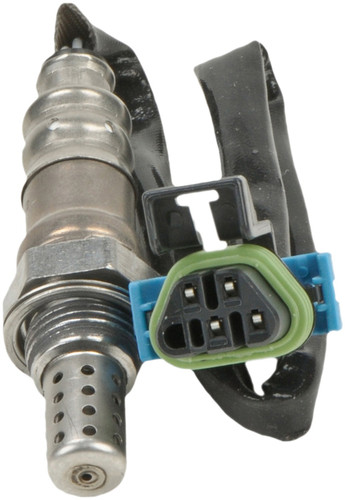

Bosch 15130 oxygen sensor for the 2006-2007 Chevrolet Trailblazer V8 5.3L or 6.0L and other vehicles measures the air-fuel ratio in the exhaust and sends it to the ECU. It is a heated, narrow-band, downstream sensor that helps the ECU keep combustion stable and emissions down.
- Heated narrow-band design with an integrated heater element for quick closed-loop control
- Advanced ceramic element and metal housing built for exhaust streams up to 1,880°F
- TSP coating to resist vibration, corrosion and contamination
- Reaches operating temperature in under 10 seconds for fast signal availability to the ECU
Quick facts
- Part: Bosch 15130 oxygen sensor
- Fits: 2006-2007 Chevrolet Trailblazer V8 5.3L or 6.0L and other vehicles
- Position: Downstream
- Material: Metal (housing)
- Condition: New
A failing sensor can bring a check engine light or poorer fuel economy, and a damaged wire or connector can bring the same. Before replacing the sensor, look over the wiring and connector with the engine off and cool for damage or contamination.
Fits
It is listed for a wide range of Chevrolet, GMC, Buick, Isuzu and Saab models, led by the 2006-2007 Chevrolet Trailblazer V8 5.3L or 6.0L, the 2007 Chevrolet Express 1500 V6 4.3L or V8 5.3L and the 2007 GMC Savana 1500 V6 4.3L or V8 5.3L.
Specifications
Fit and size
- Position: Downstream
- Quantity per application: 2
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 13.8 in
Build and materials
- Sensor type: Narrow-band, heated
- Housing material: Metal
- Coating: TSP coating
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
- Country of origin: United States
In the box
One oxygen sensor with its wiring harness; a mounting bracket is not included. This listing holds one sensor, and the application quantity is two.
Installation notes
- Direct-fit connectors and pre-applied conductive anti-seize on the threads make for quick installation.
Frequently Asked Questions
Is this the right Chevy Trailblazer oxygen sensor for a 2006-2007 Trailblazer with the V8 5.3L or 6.0L?
Yes. Bosch 15130 is a downstream sensor listed for the 2006-2007 Chevrolet Trailblazer V8 5.3L or 6.0L. For another car, look up its make, model, year and engine in the "Vehicles it fits" section.
Does this Bosch O2 sensor fit the 2007 Chevrolet Express 1500 V6 4.3L or V8 5.3L?
Yes. Bosch 15130 is listed for the 2007 Chevrolet Express 1500 V6 4.3L or V8 5.3L, and also for the 2007 GMC Savana 1500 V6 4.3L or V8 5.3L.
Is this Bosch premium oxygen sensor upstream or downstream, and is it heated?
It is a downstream sensor. Bosch 15130 is a heated narrow-band unit with an M18 - 1.5 thread and a 22 mm hex.
Does the Bosch 15130 come with the wiring harness and a mounting bracket?
The wiring harness is included; the mounting bracket is not. This listing is one sensor, and the application quantity is two.
Do the threads on this oxygen sensor already have anti-seize on them?
Yes. The M18 - 1.5 threads come with pre-applied conductive anti-seize, and the sensor has direct-fit connectors.
