O2 Sensor for 2005-2009 Land Rover LR3 & More - Bosch 13476

$243.99

Part number: 13476

UPC: 028851134767

Condition: New

Weight: 0.30 LBS

Item Package Quantity: 1

$243.99

Current Stock: 16

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

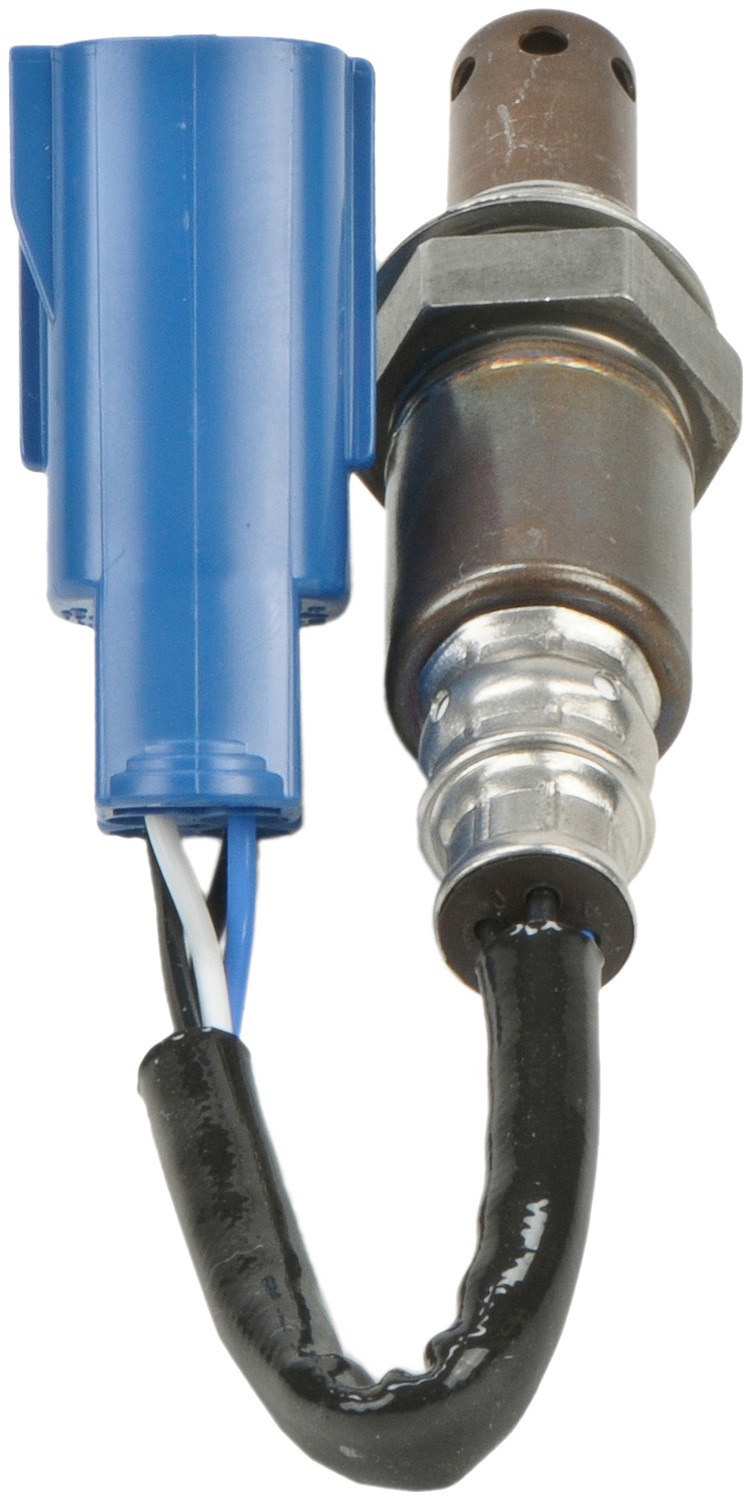

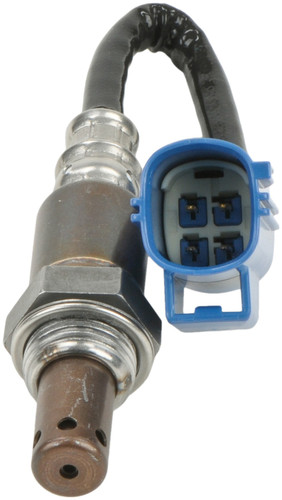

Bosch Oxygen Sensor P/N:13476

$243.99

Description

Bosch 13476 O2 sensor for the 2005-2009 Land Rover LR3 4.4L and other vehicles reports the air-fuel ratio to the ECU. As a wideband A/F oxygen sensor, it takes continuous, high-precision measurements across the full lambda range.

Ceramic construction for steady readings during rapid load changes and harsh thermal cycles
Built to withstand exhaust streams up to 1,880°F
Metal housing, integrated heater element and TSP coating to resist vibration, corrosion and contamination
Reaches operating temperature in under 7 seconds for quick closed-loop control

Quick facts

Part: Bosch 13476 O2 sensor
Also called: oxygen sensor
Fits: 2005-2009 Land Rover LR3 4.4L and other vehicles
Position: Upstream
Material: Metal housing
Condition: New

A failing sensor can show up as a check engine light, a rough idle or poorer fuel economy. Before you replace it, rule out an exhaust leak near the sensor and damaged wiring, since either can feed the ECU a bad reading. The vehicles take two upstream sensors, so order two and fit them together.

Fits

This is a direct-fit O2 sensor for the 2005-2007 Land Rover LR3 V6-4.0L and the 2005-2009 Land Rover LR3 V8-4.4L, and a Bosch sensor for the 2006-2009 Land Rover Range Rover Sport V8-4.2L and V8-4.4L.

Specifications

Fit and size

Position: Upstream
Quantity per vehicle: 2
Thread size: M18 - 1.5, with a 22 mm hex
Length: 9.3 in overall, 8.1 in from sealing surface to end of connector
Wiring harness length: 5.8 in
Connector: rectangle, male, 4 wires, 4 male blade terminals

Build and materials

Sensor type: Wide-band, heated
Mounting type: Threaded
Housing material: Metal
Condition: New
Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
Country of origin: Japan

In the box

The sensor comes with its wiring harness. A mounting bracket is not included.

Installation notes

Conductive anti-seize is pre-applied to the threads.
The connector is a direct-fit design for quick installation.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is Bosch 13476 an upstream sensor for the 2006-2009 Land Rover Range Rover Sport V8-4.4L?

Yes, Bosch 13476 is an upstream wide-band O2 sensor that fits the 2006-2009 Land Rover Range Rover Sport V8-4.2L and V8-4.4L.

Is the Bosch 13476 a wide-band sensor or a switching type?

This sensor is wide-band: it reads the air-fuel ratio continuously over the full lambda range, and its integrated heater brings it to operating temperature in under 7 seconds.

Does Bosch 13476 come with its wiring harness?

Yes, Bosch 13476 includes its wiring harness, 5.8 in long with a 4-wire rectangle connector. A mounting bracket is not included.

What thread size and hex does this upstream O2 sensor have?

This sensor has an M18 - 1.5 thread and a 22 mm hex.

Does this Bosch O2 sensor have anti-seize on the threads?

Yes, conductive anti-seize is pre-applied to the threads of this sensor, and its connector is a direct-fit type.
