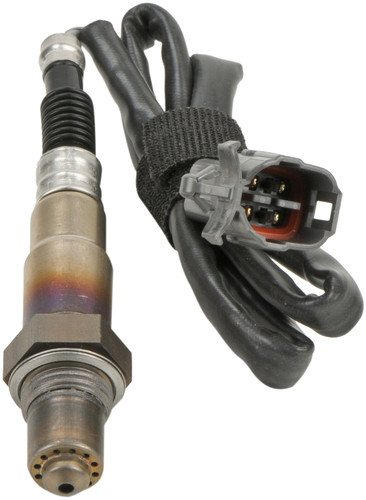

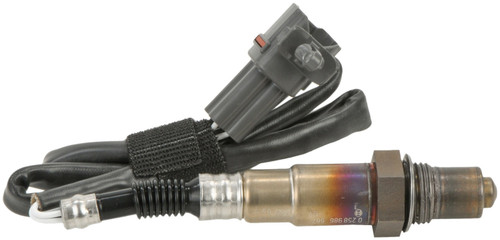

Bosch 15635 oxygen sensor for the 2002-2006 Suzuki XL-7 V6 2.7L and other vehicles measures exhaust oxygen for the ECU. Like Bosch oxygen sensors in general, this downstream switching-type sensor gives the ECU precise air-fuel-ratio readings that help keep combustion stable and reduce emissions.
- Reaches operating temperature in under 10 seconds, so the ECU gets a signal quickly for closed-loop control
- Integrated heater element and advanced ceramic element for consistent readings under thermal and vibration loads
- Handles exhaust streams up to 1,880°F
- TSP coating to resist vibration, corrosion and contamination
Quick facts
- Part: Bosch 15635 oxygen sensor
- Fits: the 2002-2006 Suzuki XL-7 V6 2.7L and other vehicles
- Position: Downstream
- Material: Metal housing
- Condition: New
A failing oxygen sensor can show up as a check engine light, rising fuel use or a rough idle, though a wiring or exhaust fault can look the same. Before replacing it, look over the connector and wiring with the engine off and cool for melted insulation, chafing or bent pins.
Fits
The 2002-2006 Suzuki XL-7 V6 2.7L, the 2001-2002 Chevrolet Tracker 4-cylinder 1.6L and the 2002-2003 Tracker 4-cylinder 2.0L, and the 2001-2002 Suzuki Vitara 4-cylinder 1.6L and the 2001-2003 Vitara 4-cylinder 2.0L all fit this sensor, along with other vehicles.
Specifications
Fit and size
- Position: Downstream
- Quantity per vehicle: varies by engine
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 24.8 in
Build and materials
- Sensor type: narrow-band, heated
- Housing material: metal
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included. This listing holds one sensor; the 2002-2006 Suzuki XL-7 V6 2.7L takes two, while the 4-cylinder engines among the vehicles named above take one.
Installation notes
- Conductive anti-seize is pre-applied on the threads.
- Direct-fit connectors are made for quick installation.
Frequently Asked Questions
Is the Bosch 15635 a Suzuki XL-7 oxygen sensor for a 2002-2006 XL-7 V6 2.7L?
Yes. The Bosch 15635 is a downstream sensor that fits the 2002-2006 Suzuki XL-7 V6 2.7L, and that engine takes two.
Is this Vitara oxygen sensor right for a 2001-2003 Suzuki Vitara 4-cylinder 2.0L?
Yes, Bosch 15635 fits the 2001-2003 Suzuki Vitara 4-cylinder 2.0L and the 2001-2002 Suzuki Vitara 4-cylinder 1.6L. If your car is not named here, look it up in the "Vehicles it fits" section.
What kind of Bosch premium oxygen sensor is the 15635?
Bosch 15635 is a heated, narrow-band, switching-type sensor with a metal housing, an M18 - 1.5 thread and a 22 mm hex.
Does this Bosch O2 sensor include the wiring harness?
Yes, the wiring harness comes with this oxygen sensor. A mounting bracket is not included.
What warranty covers the Bosch 15635 oxygen sensor?
Bosch backs the 15635 with a 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks.
