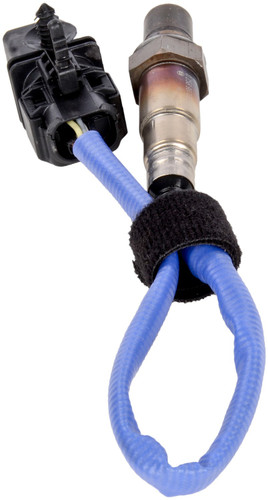

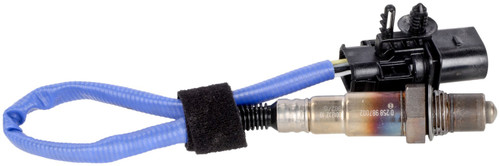

Bosch 17300 oxygen sensor for the 2005-2007 Cadillac CTS V6 2.8L, the 2005-2008 CTS V6 3.6L and other vehicles reads the air-fuel ratio in the exhaust and sends it to the ECU. The ECU uses that reading to adjust fuel delivery, which helps fuel economy and emissions.
- Wideband A/F design measures the air-fuel ratio continuously across the full lambda range
- Reaches operating temperature in under 7 seconds for quick closed-loop control
- Integrated heater element with optimized heater control
- Withstands exhaust streams up to 1,880°F; TSP coating resists vibration, corrosion and contamination
Quick facts
- Part: Bosch 17300 oxygen sensor
- Fits: 2005-2007 Cadillac CTS V6 2.8L, the 2005-2008 CTS V6 3.6L and other vehicles
- Position: Upstream
- Material: Metal housing
- Condition: New
A worn sensor can show up as a check engine light, rough running or poorer fuel economy. Before you replace it, rule out damaged wiring, a loose connector and an exhaust leak near the sensor, since any of these can set a similar oxygen sensor code.
Fits
It is an oxygen sensor for the 2005-2007 Cadillac CTS V6 2.8L and the 2005-2008 CTS V6 3.6L, and for the 2005 Cadillac STS V8 4.6L and the 2005-2007 STS V6 3.6L, plus the 2005 Cadillac SRX V8 4.6L and the 2005-2006 SRX V6 3.6L. These engines take two sensors, and this listing is one.
Specifications
Fit and size
- Position: Upstream
- Quantity per vehicle: 2
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Overall length: 16.0 in
- Length (sealing surface to end of connector): 14.8 in
- Terminal quantity: 6
Build and materials
- Sensor type: Wide-band
- Housing material: Metal
- Mounting type: Threaded
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness.
Installation notes
- Conductive anti-seize is already applied to the threads.
- The connectors are made for quick installation.
Frequently Asked Questions
Is this Bosch O2 sensor right for the 2005-2008 Cadillac CTS V6 3.6L?
Yes, Bosch 17300 is an upstream oxygen sensor for the 2005-2008 Cadillac CTS V6 3.6L; this listing is one sensor, and the engine takes two.
Is this Bosch premium oxygen sensor a wideband or a switching type?
It is a wideband sensor. Bosch 17300 measures the air-fuel ratio continuously across the full lambda range and has an integrated heater element.
Does the 17300 oxygen sensor come with a wiring harness?
Yes. The sensor comes with its wiring harness, and conductive anti-seize is already applied to the threads.
What thread size and hex size does this upstream oxygen sensor have?
This upstream oxygen sensor has an M18 - 1.5 thread and a 22 mm hex. Its overall length is 16.0 in, with 14.8 in from the sealing surface to the end of the connector.
What warranty does Bosch give on this oxygen sensor?
Bosch gives a 1-year, unlimited-mileage warranty on this oxygen sensor for non-commercial passenger cars and light trucks.
