Front Left Brake Caliper for 2012-2020 Ford F-150 & More - Raybestos FRC12616

$182.99
WARNING:California Proposition 65▾

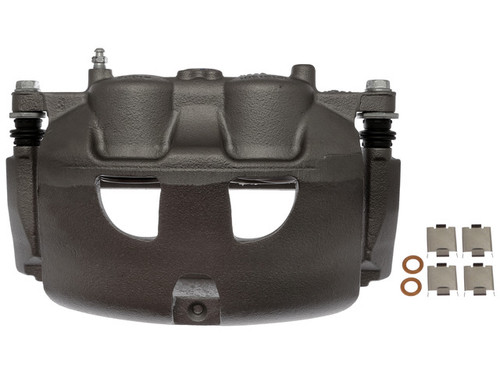

Raybestos Brakes Disc Brake Caliper FRC12616

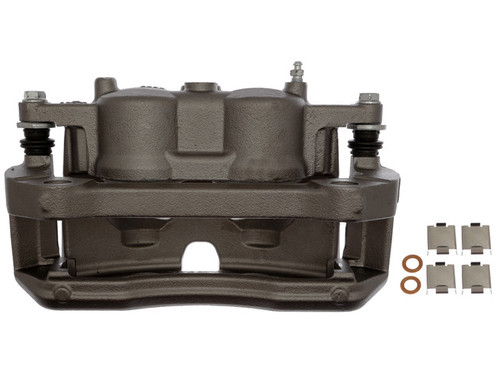

Raybestos Brakes Disc Brake Caliper FRC12616 - view 2
Raybestos Brakes Disc Brake Caliper FRC12616 - view 3
Raybestos Brakes Disc Brake Caliper FRC12616 - view 4
Raybestos Brakes Disc Brake Caliper FRC12616
Raybestos Brakes Disc Brake Caliper FRC12616 - view 2
Raybestos Brakes Disc Brake Caliper FRC12616 - view 3
Raybestos Brakes Disc Brake Caliper FRC12616 - view 4

Vehicles this part fits
    Part number: FRC12616
    UPC: 887213096521
    Condition: New
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $182.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

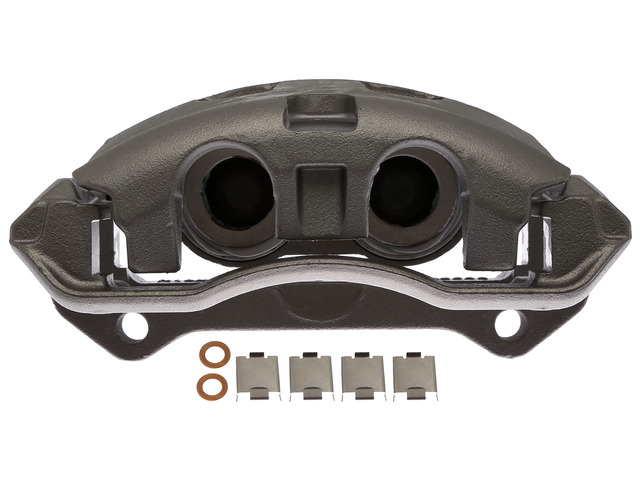

    Raybestos Brakes Disc Brake Caliper P/N:FRC12616
    Raybestos Brakes Disc Brake Caliper P/N:FRC12616
    $182.99
    $182.99

    Keep the front brakes on your 2012-2020 Ford F-150 clamping smoothly with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC12616) — a 2012-2020 Ford F-150 brake caliper that drops in as the front-left direct-fit replacement for the 2012-2020 Ford F-150 and 2012-2020 Ford Lobo (all engines). The caliper houses the pistons that press the pads against the rotor; a seized, leaking, or sticking original can cause uneven braking or pull, and this remanufactured unit replaces it.

    • Remanufactured OE: Built from inspected OE castings with all-new rubber and sealing parts — seals, boots, and bleeder screws — while guide pins and brackets are checked before reuse.
    • New wear items for leak-free operation: New seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings; EPDM70 rubber components for heat resistance and durability, with silicone boots on heavy-duty applications where applicable.
    • 100% pressure tested and made with materials matching OE specifications.
    • Specs: Two 2.122 in (53.899 mm) pistons, floating cast-iron caliper with a coated finish, 3/8-24 bleeder screw thread, and M16 x 1.5 bracket mounting holes. Mounting bracket included.

    Sold individually as the left front unit; for balanced braking, replacing the right-side caliper as a matched pair is recommended best practice. Country of origin: Mexico.

    Interchange: 18-B5405 · 99-17980B · 18-P5405 · 141.65100 · 142.65100
    18B5405 · 9917980B · 18P5405 · 14165100 · 14265100 · SC3353 · BRCF301 · CL3Z2B121A · CL3Z2B121B · FL3Z2B121A · FL3Z2B121B · FL3Z2B121C · JL3Z2B121B

    This part cross-references / interchanges with the following part numbers:

    18-B5405, 99-17980B, 18-P5405, 141.65100, 142.65100, SC3353, BRCF301, CL3Z2B121A, CL3Z2B121B, FL3Z2B121A, FL3Z2B121B, FL3Z2B121C, JL3Z2B121B

    Frequently Asked Questions

    Does this caliper fit a 2012-2020 Ford F-150?

    Yes — it's the front-left direct-fit replacement for the 2012-2020 Ford F-150 and 2012-2020 Ford Lobo (all engines). Check the "Vehicles it fits" section to confirm it matches your vehicle.

    Is the mounting bracket included?

    Yes. This is a semi-loaded caliper and bracket assembly, so the caliper and its mounting bracket are included.

    Is this caliper remanufactured?

    Yes. It's remanufactured from inspected OE castings with all-new seals, boots, bleeder screws, banjo bolts, and O-rings, then 100% pressure tested.

    What are the piston specs?

    It's a floating cast-iron caliper with two pistons measuring 2.122 in (53.899 mm), a coated finish, and a 3/8-24 bleeder screw thread.

    Do I need to replace both front calipers?

    It's sold individually as the left front unit. Replacing the left and right front calipers together as a matched pair is recommended for balanced braking.
