Remanufactured Rear Right Brake Caliper for 2012-2020 Ford F-150 - Raybestos FRC12617

$173.99

Vehicles this part fits

    Part number: FRC12617
    UPC: 887213096538
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $173.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC12617
    Raybestos Brakes Disc Brake Caliper P/N:FRC12617
    $173.99
    $173.99

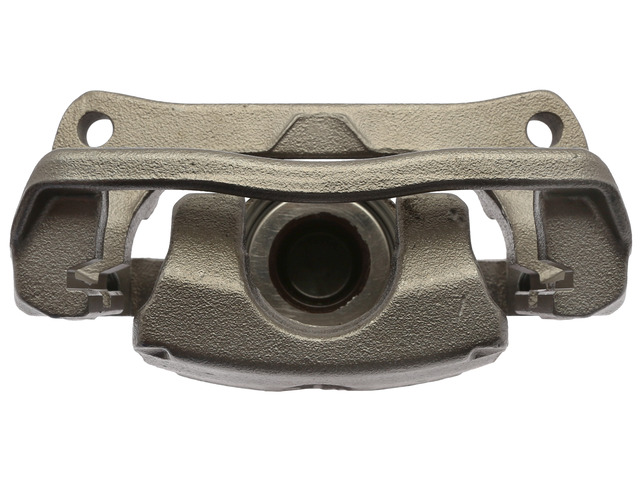

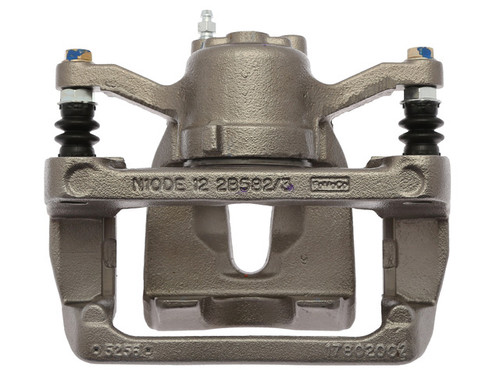

    Raybestos Brakes FRC12617 rear right brake caliper for the 2012-2020 Ford F-150 is a remanufactured caliper that squeezes the pads against the rotor. This floating disc brake caliper is supplied as a semi-loaded caliper and bracket assembly.

    • Raybestos R-Line non-plated remanufactured caliper
    • Castings, guide pins and brackets are inspected before they are reused

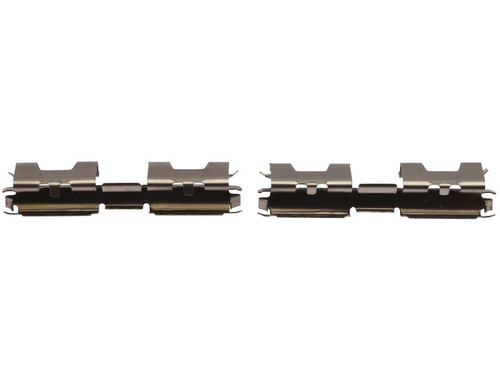

    • New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability
    • Silicone boots for heavy duty applications, where applicable

    Quick facts

    • Part: Raybestos Brakes FRC12617 brake caliper
    • Also called: disc brake caliper
    • Fits: 2012-2020 Ford F-150
    • Position: Rear right
    • Material: Cast iron casting
    • Condition: Remanufactured

    A caliper that leaks fluid, drags or wears the pads unevenly can be behind a pull to one side or a burning smell after driving. Worn pads, seized guide pins or a damaged rotor can produce these symptoms too, so find the cause before you buy a caliper.

    Fits

    It is a direct-fit replacement for the 2012-2020 Ford F-150, which takes one caliper at the rear right. This listing is one caliper; the rear left is a separate part ordered on its own, and calipers are normally changed as a left-and-right pair.

    Specifications

    Fit and size

    • Position: Rear right
    • Quantity per vehicle: 1 (rear right position)
    • Piston diameter: 53.9 mm (2.122 in)
    • Bleeder screw thread: M10x1
    • Bracket mounting hole size: 14.000 mm
    • Bracket mounting hole thread pitch: 1.500 mm

    Build and materials

    • Caliper type: Floating
    • Construction: Semi-loaded caliper and bracket assembly
    • Casting material: Cast iron
    • Condition: Remanufactured
    • Country of origin: Mexico

    Interchange: 18-B5396 · 99-17981A · 18-P5396 · 141.65547 · 141.65549 · 10-13411
    SC3356 · CL3Z2552A · CL3Z2B511A · CL3Z2B511C · FL3Z2552B · FL3Z2552C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B5396, 99-17981A, 18-P5396, 141.65547, 141.65549, SC3356, CL3Z2552A, CL3Z2B511A, CL3Z2B511C, FL3Z2552B, FL3Z2552C, 10-13411

    Frequently Asked Questions

    Does the Raybestos Brakes FRC12617 caliper fit the rear right side of a 2012-2020 Ford F-150?

    Yes. Raybestos Brakes FRC12617 is the rear right caliper for the 2012-2020 Ford F-150, and the rear left takes its own separate caliper.

    What size is the piston on this rear right caliper?

    The piston diameter is 53.9 mm (2.122 in) on a floating-type caliper. The bleeder screw thread is M10x1.

    Does the Raybestos R-Line caliper get new seals and rubber parts?

    Yes. It is remanufactured with new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings, while the castings, guide pins and brackets are inspected before reuse.

    Does Raybestos Brakes FRC12617 replace caliper number 18-B5396?

    Yes. 18-B5396 is one of the numbers this caliper replaces, and the other cross-reference numbers are on the Interchange line.

    Is it okay to keep driving with a leaking brake caliper?

    No. A leaking or sticking caliper affects braking, so have it inspected and replaced promptly by a qualified shop instead of driving on it.
