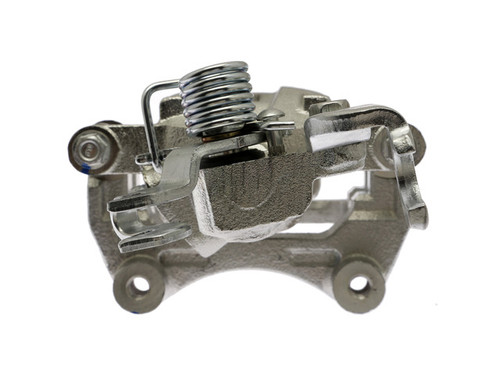

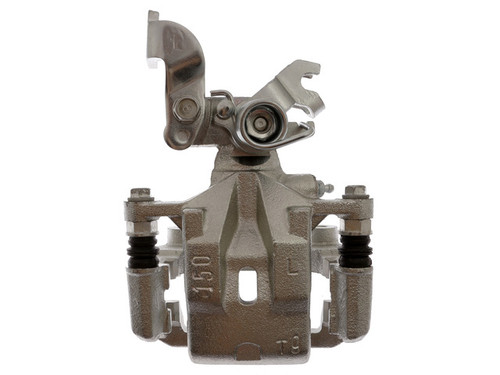

Raybestos Brakes FRC11931 rear left brake caliper for the 2006-2012 Ford Fusion and other vehicles squeezes the pads against the rotor. This remanufactured semi-loaded caliper and bracket assembly uses materials matching OE specifications.
- Raybestos R-Line non-plated remanufactured caliper
- All new rubber and sealing components, including seals, boots and bleeders
- Castings, guide pins and brackets inspected before they are reused
- Abutment hardware, banjo bolts, O-rings and bleeder screws replaced with new parts for leak-free operation
- 100% pressure tested
- EPDM70 rubber components for heat resistance, performance and durability
Quick facts
- Part: Raybestos Brakes FRC11931 brake caliper
- Also called: disc brake caliper
- Fits: the 2006-2012 Ford Fusion and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
Fluid leaking at the caliper, a dragging brake or uneven pad wear can mean a caliper needs replacing. Before you replace it, rule out worn pads, a damaged rotor or a tired brake hose, which can give a similar pull or noise.
Fits
The vehicles this caliper fits include the 2006-2012 Ford Fusion, the 2006-2013 Mazda 6 and the 2007-2012 Lincoln MKZ. This listing is one caliper for the rear left; the 2006-2012 Ford Fusion needs one on that side, the rear right is a separate part, and both are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Piston diameter: 33.9 mm (1.335 in)
- Bleeder screw thread: M10x1
- Bracket mounting hole size: 10 mm, thread pitch 1.25 mm
Build and materials
- Type: Semi-loaded caliper and bracket assembly
- Caliper type: Integral parking brake
- Casting material: Cast iron
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded caliper and bracket assembly.
Interchange: 15-13320 · 99-17930A · 18-B5002 · 18-P5002 · 141.61556 · 14-3320
SC0397
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
15-13320, 99-17930A, 18-B5002, 18-P5002, 141.61556, SC0397, 14-3320
Frequently Asked Questions
Is Raybestos Brakes FRC11931 the right rear left Ford Fusion caliper for the 2006-2012 Ford Fusion?
Yes. Raybestos Brakes FRC11931 covers the rear left position through that whole range, so a 2010 Ford Fusion rear caliper is included. The rear right is a separate part.
Does this brake caliper fit the 2007-2012 Lincoln MKZ?
Yes. It fits the rear left of the 2007-2012 Lincoln MKZ. Other cars are covered too, so look up your own car in the "Vehicles it fits" section on this page.
Is this disc brake caliper semi-loaded?
Yes. Raybestos Brakes FRC11931 is a remanufactured semi-loaded caliper and bracket assembly with an integral parking brake and a 33.9 mm (1.335 in) piston.
How do I know if a rear left caliper is sticking or leaking?
Fluid leaking around the caliper, a brake that drags or pulls to one side, and uneven pad wear can all be signs of a caliper problem. A shop can confirm the cause.
Is this remanufactured caliper pressure tested?
Yes. Every Raybestos R-Line caliper is 100% pressure tested. The seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all replaced with new parts.
