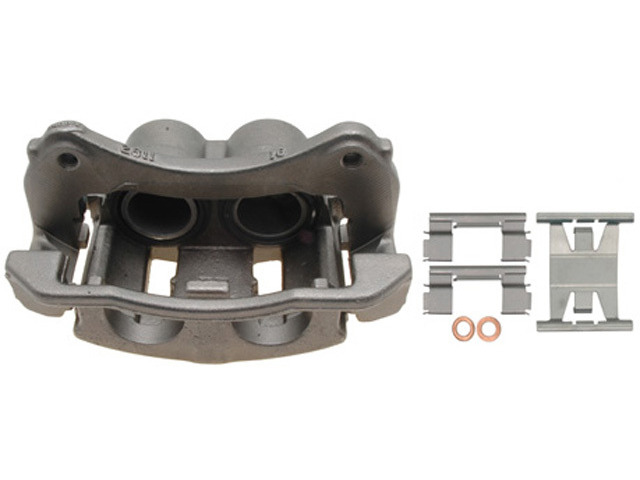

Bring fresh seals and a pressure-tested unit to the front left wheel with the Raybestos R-Line remanufactured semi-loaded caliper and bracket assembly, part number FRC11524. It is a floating caliper that presses the brake pads against the rotor when you apply the pedal. It fits many vehicles, among them the 1995-2001 Ford Explorer, 1995-2002 Ford Ranger and 1995-2008 Mazda B3000. See the Buyer's Guide tab for the full list.
This Raybestos R-Line brake caliper is a non-plated, remanufactured OE unit rebuilt with all-new rubber and sealing components. Castings, guide pins and brackets are carefully inspected before they are reused, and each caliper is rigorously tested.
- New sealing and wear parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials, intended to help keep the caliper leak-free.
- OE-matched materials: materials match OE specifications and vehicle-specific designs.
- EPDM70 rubber components: chosen for heat resistance, performance and durability.
- 100% pressure tested: every unit is pressure tested.
Specifications: floating caliper type with a cast iron casting, 1.807 in (45.9 mm) piston diameter, 3/8-24 bleeder screw thread, and a 12.000 mm bracket mounting hole size with a 1.750 mm thread pitch. Country of origin: Mexico.
Signs a disc brake caliper may need replacing include fluid seeping from the caliper, a pull to one side under braking, a dragging brake and uneven pad wear. Other brake parts can cause the same symptoms, so diagnose the cause before replacing. This caliper is sold individually for the front left position. Replacing both front calipers together is recommended for even, balanced braking.
Interchange: 18-B4607 · 99-01170B · 99-17849B · 18-P4607 · 141.65038 · 11-3200 · 14-3200
18B4607 · 9901170B · 9917849B · 18P4607 · 14165038 · 113200 · 143200 · SC0373
This part cross-references / interchanges with the following part numbers:
18-B4607, 99-01170B, 99-17849B, 18-P4607, 141.65038, SC0373, 11-3200, 14-3200
