Rear Right Brake Caliper for 1998-2007 Honda Accord & More - Raybestos FRC11117

$145.99

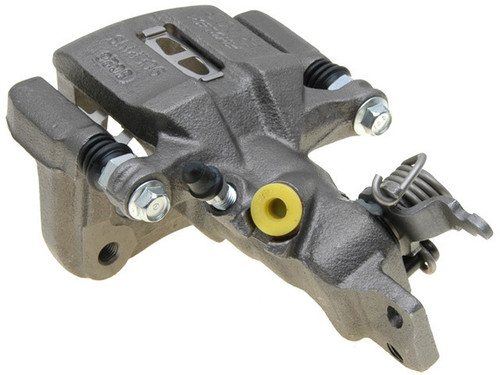

Raybestos Brakes Disc Brake Caliper FRC11117

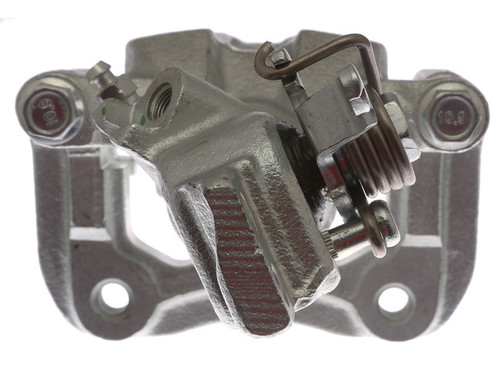

Raybestos Brakes Disc Brake Caliper FRC11117 - view 2

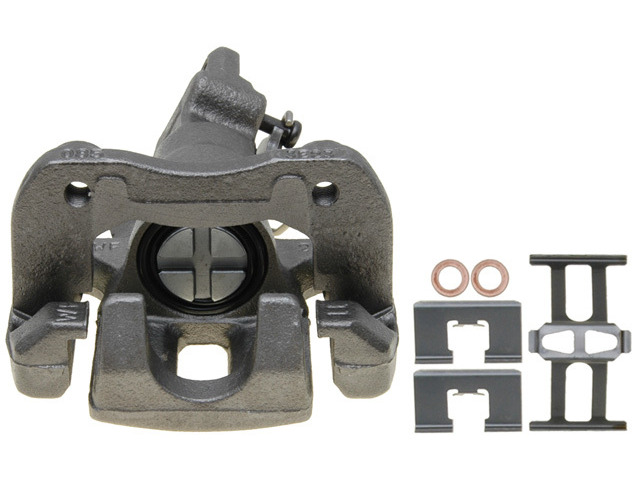

Raybestos Brakes Disc Brake Caliper FRC11117 - view 3

Part number: FRC11117

UPC: 753497956458

Condition: New

Weight: 7.90 LBS

Item Package Quantity: 1

$145.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC11117

$145.99

Description

Raybestos Brakes FRC11117 rear right brake caliper for the 1998-2007 Honda Accord and other vehicles presses the pads against the rotor. This remanufactured disc brake caliper is a semi-loaded caliper and bracket assembly with an integral parking brake.

Raybestos R-Line non-plated remanufactured brake caliper
Castings, guide pins and brackets are inspected before reuse
New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
Silicone boots for heavy-duty applications, where applicable
Each caliper is 100% pressure tested
EPDM70 rubber components for heat resistance and durability

Quick facts

Part: Raybestos Brakes FRC11117 brake caliper
Also called: disc brake caliper
Fits: 1998-2007 Honda Accord and other vehicles
Position: Rear right
Material: Cast iron
Condition: Remanufactured

Pulling to one side, a dragging brake or a fluid leak at the wheel can mean a caliper is sticking or leaking. These signs alone do not prove the caliper is at fault, since a collapsed brake hose is another common cause.

Fits

This caliper fits the 1998-2007 Honda Accord and the 2004-2008 Acura TSX. A rear axle takes one caliper on each side, and this listing is the right one; the left is a separate caliper that is normally replaced at the same time.

Specifications

Fit and size

Position: Rear right
Quantity per application: 1
Piston diameter: 33.8 mm (1.331 in)
Bleeder screw thread: M10x1.25
Bracket mounting hole: 10 mm, thread pitch 1.25 mm

Build and materials

Type: semi-loaded caliper and bracket assembly
Caliper type: integral parking brake
Casting material: cast iron
Condition: remanufactured
Country of origin: Mexico

Interchange: 15-15117 · 99-00940A · 19-B2068 · 19-P2068 · 141.40551 · 142.40551 · 14-5117
SC1888S · 43018SDAA00RM

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

15-15117, 99-00940A, 19-B2068, 19-P2068, 141.40551, 142.40551, SC1888S, 43018SDAA00RM, 14-5117

Buyer's Q&A

Frequently Asked Questions

Is FRC11117 the right caliper for the 1998-2007 Honda Accord rear right wheel?

Yes. Raybestos Brakes FRC11117 is the rear right caliper for the 1998-2007 Honda Accord. The rear left wheel takes a separate caliper.

Is there a rear right brake caliper for the 2004-2008 Acura TSX in this listing?

Yes. Raybestos Brakes FRC11117 fits the 2004-2008 Acura TSX as the rear right caliper, with an integral parking brake.

What is the piston diameter and bleeder screw thread on this rear right caliper?

The piston diameter is 33.8 mm (1.331 in), and the bleeder screw thread is M10x1.25.

Which parts are replaced when this caliper is remanufactured?

Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts. Castings, guide pins and brackets are inspected before reuse, and each caliper is pressure tested.

Does Raybestos Brakes FRC11117 replace caliper number 15-15117?

Yes. 15-15117 is one of the numbers this caliper replaces, along with 99-00940A and 14-5117.
