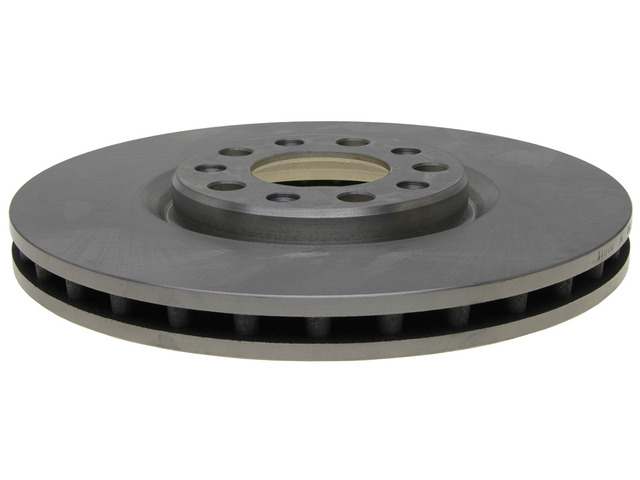

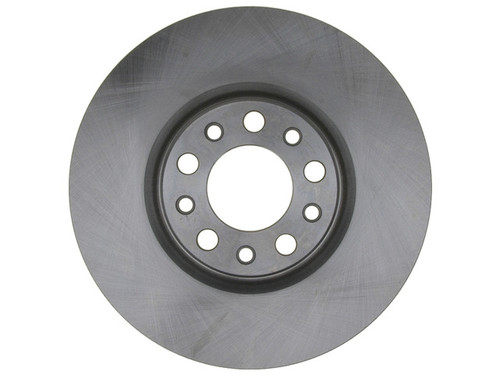

Built for everyday driving, the Raybestos R-Line Brake Rotor, part number 780995R, gives your front brakes a fresh cast iron braking surface. It is a direct-fit front replacement for the 2013-2016 Dodge Dart and the 2015-2017 Chrysler 200, all engines.
This vented, conventional-style disc brake rotor has a smooth, non-directional braking surface. It measures 12.008 in (305 mm) across, with a nominal thickness of 1.102 in (28 mm), a discard thickness of 1.024 in (26 mm) and an overall height of 1.56 in (39.6 mm). It has five 0.65 in (16.5 mm) mounting bolt holes on a 4.331 in (110 mm) bolt circle and a 2.76 in (70.1 mm) center hole. An ABS tone ring is not included. Country of origin: China.
The listed applications use two front rotors. If you are replacing the rotors on a 2013-2016 Dodge Dart or a 2015-2017 Chrysler 200, we recommend replacing both sides together as a matched pair for even, balanced braking. This rotor is sold individually, and this listing is for one.
Will this rotor replace the front 2013 Dodge Dart brake rotors?
Yes. Raybestos 780995R is cataloged as a front direct-fit rotor for the 2013-2016 Dodge Dart with all engines. See the Buyer's Guide tab for every listed vehicle.
Should I replace the brake pads and rotors together on a 2015 Dodge Dart?
Brake pads are not included with this rotor and are sold separately. Fitting fresh pads with new rotors is common practice, and we recommend replacing both front rotors as a pair.
What are the key measurements of Raybestos 780995R?
It has a 12.008 in (305 mm) outside diameter, a 1.102 in (28 mm) nominal thickness and a 1.024 in (26 mm) discard thickness, with five bolt holes on a 110 mm bolt circle.
What signs mean a brake rotor may need replacing?
Common signs include a pulsating brake pedal, vibration or noise when braking, deep scoring or grooves, and a rotor worn to or below its discard thickness.
Is an ABS tone ring included with this rotor?
No, an ABS tone ring is not included with 780995R. The rotor is sold individually, and this listing is for one.
