Front Brake Rotor for 2014-2023 Jeep Cherokee & More - Raybestos 781768

$101.99

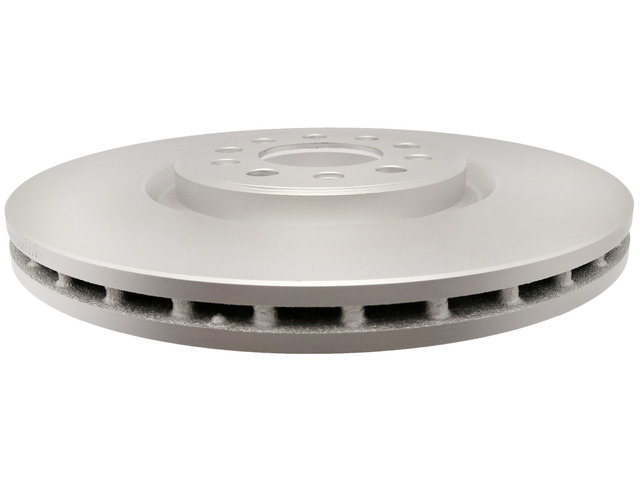

Raybestos Brakes Disc Brake Rotor 781768

Raybestos Brakes Disc Brake Rotor 781768 - view 2

Raybestos Brakes Disc Brake Rotor 781768 - view 3

Part number: 781768

UPC: 887213137040

Condition: New

Weight: 1.78 LBS

Item Package Quantity: 1

$101.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:781768

$101.99

Description

Raybestos 781768 front brake rotor for the 2014-2023 Jeep Cherokee and other vehicles gives the brake pads a vented cast iron surface to clamp against and slow the wheel.

Raybestos Specialty Street Performance rotor with rust prevention
Cast iron body that suppresses noise and keeps brakes running cool, quiet and vibration free
Cooling vanes for cooling and reduced fade
Black fusion coating on the hat or Grey Fusion 4.0® coating, depending on the application
Turned finish that minimizes noise and improves responsiveness for smoother stops

Quick facts

Part: Raybestos 781768 brake rotor
Also called: disc brake rotor
Fits: the 2014-2023 Jeep Cherokee and other vehicles
Position: Front
Material: Cast Iron
Condition: New

A shudder through the pedal, grinding or visible grooves in the rotor face can mean a disc brake rotor is worn. These signs alone do not prove the rotor is at fault, since a sticking caliper can produce similar symptoms. Front rotors are normally replaced together on the same axle, and this listing is a single rotor.

Fits

It is listed for a wide range of Jeep, Dodge, Chrysler and Alfa Romeo models, including the 2025 Jeep Compass and the 2023-2025 Dodge Hornet. Open the "Vehicles it fits" section to check your exact model and engine.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 330 mm (12.992 in)
Inside diameter: 198.1 mm (7.799 in)
Center hole diameter: 70.1 mm (2.76 in)
Bolt circle: 110 mm (4.331 in), 5 lug holes
Bolt hole diameter: 15.7 mm (0.618 in)
Nominal thickness: 28 mm (1.102 in)
Discard thickness: 26.4 mm (1.039 in)
Overall height: 39.6 mm (1.559 in)

Build and materials

Type: Vented, conventional
Surface: Smooth, non-directional
Material: Cast iron
ABS tone ring: not included
Condition: New
Country of origin: China

In the box

One front brake rotor; the front axle takes two. The ABS tone ring is not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is this the right Jeep Cherokee brake rotor for a 2014-2023 model?

Yes, Raybestos 781768 is a front rotor listed for the 2014-2023 Jeep Cherokee. If you drive another model, open the "Vehicles it fits" section to check your car.

Do these Jeep Compass brake rotors fit a 2025 Jeep Compass?

Yes, the 2025 Jeep Compass is in the fitment for this front rotor. It takes two on the front axle, and this listing is one.

What size are these Raybestos rotors?

Raybestos 781768 is 330 mm across and 28 mm thick when new, with 5 lug holes on a 110 mm bolt circle. It is a vented design.

How thin can this front brake rotor wear before it needs replacing?

The discard thickness is 26.4 mm (1.039 in), against 28 mm (1.102 in) new. A rotor measuring at or below that with a micrometer is due for replacement.

Does this rotor come with an ABS tone ring?

No, the ABS tone ring is not included with Raybestos 781768. The listing is one cast iron front rotor.
