Front Brake Rotor for 2012-2025 Ford F-250 Super Duty & More - Raybestos 681016R

$235.99

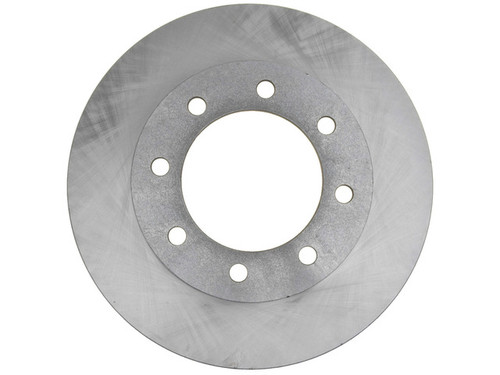

Raybestos Brakes Disc Brake Rotor 681016R
Raybestos Brakes Disc Brake Rotor 681016R - view 2
Raybestos Brakes Disc Brake Rotor 681016R - view 3
Raybestos Brakes Disc Brake Rotor 681016R
Raybestos Brakes Disc Brake Rotor 681016R - view 2
Raybestos Brakes Disc Brake Rotor 681016R - view 3

Vehicles this part fits
    Part number: 681016R
    UPC: 887213083712
    Condition: New
    Weight: 10.59 LBS
    Item Package Quantity: 1
    $235.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Raybestos Brakes Disc Brake Rotor P/N:681016R
    Raybestos Brakes Disc Brake Rotor P/N:681016R
    $235.99
    $235.99

    Raybestos Brakes 681016R front brake rotor for the 2012-2025 Ford F-250 Super Duty and other vehicles is the disc the brake pads clamp against to slow the wheel.

    • Raybestos R-Line rotor made for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration
    • Vented cast iron construction with a smooth, non-directional surface

    Quick facts

    • Part: Raybestos Brakes 681016R brake rotor
    • Also called: disc brake rotor
    • Fits: 2012-2025 Ford F-250 Super Duty and other vehicles
    • Position: Front
    • Material: Cast iron
    • Condition: New

    Pedal pulsation, noise when braking or visible grooves on the rotor face can mean it is worn or uneven. These signs alone do not prove the rotor is the problem, since worn pads can cause similar noise.

    Fits

    It fits the 2012-2025 Ford F-250 Super Duty, the 2012-2025 Ford F-350 Super Duty and the 2013-2016 Ford F-450 Super Duty. It was developed from OE samples for OE fit, form and function. These trucks take two front rotors, one per front wheel, and this listing is one rotor, so order two and fit them together.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 363.05 mm (14.293 in)
    • Inside diameter: 231 mm (9.094 in)
    • Center hole diameter: 129.05 mm (5.08 in)
    • Bolt circle: 171.5 mm (6.752 in), 8 lug holes
    • Bolt hole diameter: 16.15 mm (0.636 in)
    • Overall height: 100.1 mm (3.94 in)
    • Nominal thickness: 38.5 mm (1.515 in)
    • Discard thickness: 36.4 mm (1.433 in)

    Build and materials

    • Type: Vented, conventional
    • Surface: Smooth, non-directional
    • Material: Cast iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Frequently Asked Questions

    Are these 2012-2025 Ford F-250 Super Duty brake rotors for the front axle?

    Yes. Raybestos Brakes 681016R is a front rotor for the 2012-2025 Ford F-250 Super Duty, which takes two; this listing is one rotor.

    Is this disc brake rotor vented or solid?

    Vented. The Raybestos Brakes 681016R is a cast iron rotor with a smooth, non-directional surface and a 363.05 mm outside diameter.

    At what thickness should these rotors be replaced?

    The discard thickness is 36.4 mm (1.433 in), against a new thickness of 38.5 mm (1.515 in). A shop can measure it for you.

    Does this rotor come with an ABS tone ring?

    No. This rotor does not include an ABS tone ring, and it is a conventional rotor with 8 lug holes on a 171.5 mm bolt circle.

    Are these R-Line rotors mill balanced?

    Yes. The edges are mill balanced and 100 percent validated, which helps minimize thickness variation and vibration.
