Rear Brake Rotor for 2015-2023 Ford Mustang - Raybestos 681955

$75.99

Raybestos Brakes Disc Brake Rotor 681955

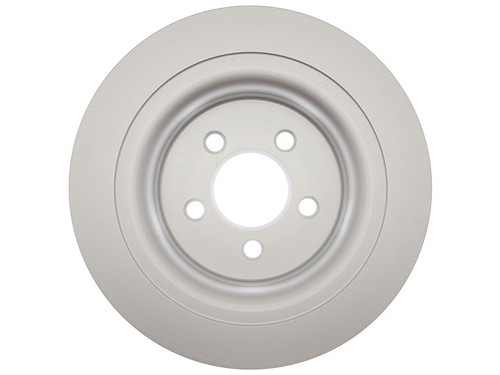

Raybestos Brakes Disc Brake Rotor 681955 - view 2

Raybestos Brakes Disc Brake Rotor 681955 - view 3

Part number: 681955

UPC: 887213192766

Condition: New

Weight: 1.78 LBS

Item Package Quantity: 1

$75.99

Current Stock: 3

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:681955

$75.99

Description

Raybestos 681955 rear brake rotor for the 2015-2023 Ford Mustang is the disc the rear pads clamp against to slow the car. Among Raybestos rotors, this Street Performance model is vented and coated for rust prevention.

Raybestos Specialty Street Performance coated rotor line
Raybestos performance rotors use enhanced iron that suppresses noise and keeps brakes running cool, quiet and vibration free
Vented design with cooling vanes that provide cooling and reduced fade
Application-specific fusion coating: black on the hat, with Grey Fusion 4.0 on the inboard surface and vanes or on the entire rotor
Turned finish to minimize noise and improve responsiveness for smoother stops

Quick facts

Part: Raybestos 681955 brake rotor
Also called: disc brake rotor
Fits: 2015-2023 Ford Mustang
Position: Rear
Condition: New

A worn disc brake rotor can show up as a pulsing brake pedal, noise when braking or visible grooves in the surface. Before replacing it, look over the rotor with the engine off and the brakes cool, and measure its thickness against the 23.5 mm discard figure; a shop can test anything beyond that. The 2015-2023 Ford Mustang takes two, one on each side of the rear axle, so order two and fit them together. This listing is one rotor.

Fits

Raybestos 681955 is a direct-fit replacement for the rear axle of the 2015-2023 Ford Mustang. Its cooling vanes match OE configurations.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Outside diameter: 330 mm (12.992 in)
Inside diameter: 246 mm (9.685 in)
Center hole diameter: 71 mm (2.795 in)
Bolt circle: 114.3 mm (4.5 in), 5 lug holes
Mounting bolt hole diameter: 15.75 mm (0.62 in)
Overall height: 43.6 mm (1.717 in)
Nominal thickness: 25 mm (0.984 in)
Discard thickness: 23.5 mm (0.925 in)

Build and materials

Type: vented, conventional
Surface type: smooth
Coating: application-specific fusion coating
ABS tone ring: not included
Condition: new
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Are these 2015-2023 Ford Mustang rotors for the front or rear axle?

They are rear rotors. Raybestos 681955 fits the rear axle of the 2015-2023 Ford Mustang.

Which coating do these Raybestos coated rotors have?

The finish depends on the application: black fusion coating on the hat with Grey Fusion 4.0 on the inboard surface and cooling vanes, or Grey Fusion 4.0 on the entire rotor.

How large are Raybestos performance rotors like the 681955?

The Raybestos 681955 is a vented rotor, 330 mm (12.992 in) across, with a 71 mm center hole and five lug holes on a 114.3 mm bolt circle.

At what thickness should this rear rotor be replaced?

Its discard thickness is 23.5 mm (0.925 in), against a nominal thickness of 25 mm. A rotor measuring at or below the discard figure is due for replacement.

Do Raybestos brakes and rotors like this 681955 come with pads?

No. This listing is one rear brake rotor; brake pads are sold separately.
