Front Brake Rotor for 2008-2012 Jeep Liberty & More - Raybestos 780703R

$121.99

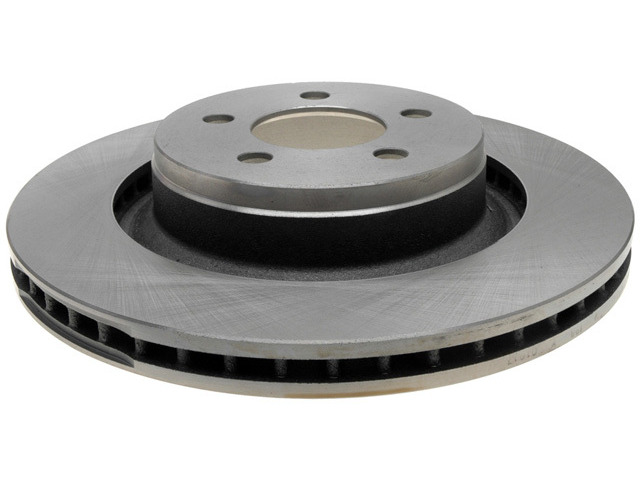

Raybestos Brakes Disc Brake Rotor 780703R

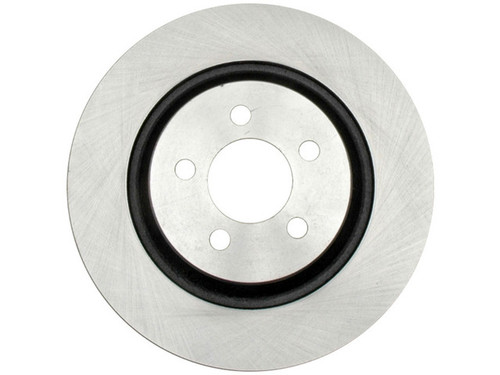

Raybestos Brakes Disc Brake Rotor 780703R - view 2

Raybestos Brakes Disc Brake Rotor 780703R - view 3

Part number: 780703R

UPC: 829352692349

Condition: New

Weight: 6.46 LBS

Item Package Quantity: 1

$121.99

Current Stock: 24

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:780703R

$121.99

Description

Raybestos 780703R front brake rotor for the 2008-2012 Jeep Liberty and other vehicles gives the brake pads a smooth, vented surface to clamp against. Raybestos rotors like this one are developed from OE samples for OE fit, form and function.

Raybestos R-Line rotors are engineered for everyday driving conditions
G3000-qualified material for dependable braking
Meets the SAE standard for tensile strength, for structural integrity
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and extended pad life
Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

Quick facts

Part: Raybestos 780703R brake rotor
Also called: disc brake rotor
Fits: 2008-2012 Jeep Liberty and other vehicles
Position: Front
Condition: New

Pedal pulsation, brake noise or visible grooves on the rotor face can mean the rotor is worn, though worn pads or a sticking caliper can also be behind them.

Fits

This is a direct-fit replacement for the 2008-2012 Jeep Liberty and the 2008-2011 Dodge Nitro.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 332 mm (13.07 in)
Inside diameter: 218.55 mm (8.604 in)
Center hole diameter: 72.05 mm (2.837 in)
Bolt circle: 114.3 mm (4.5 in), 5 lug holes
Mounting bolt hole diameter: 16.6 mm (0.654 in)
Nominal thickness: 28.05 mm (1.105 in)
Discard thickness: 26.4 mm (1.039 in)
Overall height: 64.1 mm (2.524 in)

Build and materials

Type: Vented, conventional
Surface: Smooth
ABS tone ring: not included
Condition: New
Country of origin: China

In the box

One front disc brake rotor. The 2008-2012 Jeep Liberty and the 2008-2011 Dodge Nitro take two, so order two and fit them together.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is this the right Jeep Liberty rotor for a 2008-2012 model?

Yes. Raybestos 780703R is a front rotor for the 2008-2012 Jeep Liberty, and it also fits the 2008-2011 Dodge Nitro.

Does this Raybestos brakes and rotors listing include brake pads?

No. Raybestos 780703R is one front brake rotor, and brake pads are sold separately. The ABS tone ring is not included either.

How thin can this front rotor get before it needs replacing?

The discard thickness is 26.4 mm (1.039 in), against a nominal thickness of 28.05 mm (1.105 in). A rotor measuring at or below 26.4 mm is due for replacement.

Is this rotor vented, and what size is it?

Yes, it is a vented rotor with a smooth surface. It measures 332 mm (13.07 in) across, with 5 lug holes on a 114.3 mm (4.5 in) bolt circle.

What are Raybestos performance rotors in the R-Line series engineered for?

R-Line series rotors like this Raybestos 780703R are engineered for everyday driving conditions. They have low initial lateral runout and thickness variation for less pedal pulsation and brake noise.
