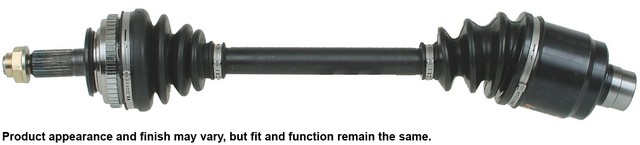

CARDONE New CV Axle Assembly 66-4121

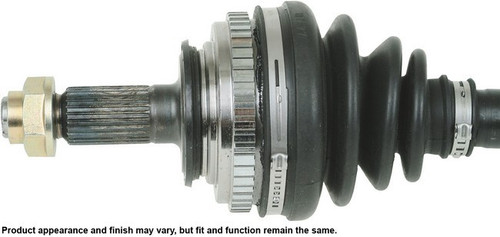

CARDONE New CV Axle Assembly 66-4121 - view 2
CARDONE New CV Axle Assembly 66-4121 - view 3
CARDONE New CV Axle Assembly 66-4121
CARDONE New CV Axle Assembly 66-4121 - view 2
CARDONE New CV Axle Assembly 66-4121 - view 3

Front CV Axle for 2002-2005 Honda Civic & More - CARDONE New 66-4121

Be the first to review this product
$61.99
MPN: 66-4121
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1

Have questions?

Ask an Expert
CARDONE New CV Axle Assembly P/N:66-4121
CARDONE New CV Axle Assembly P/N:66-4121
$61.99

Deliver engine power to the front wheels with the CARDONE New CV Axle Assembly 66-4121, a Honda Civic cv axle built for the 1999-2000 and 2002-2005 Honda Civic, 1994-1997 Honda Civic Del Sol and 1994-2001 Acura Integra. This new axle is cataloged for both the front left and front right positions. CARDONE engineers it to meet O.E. form, fit and function.

CARDONE bases its design on extensive CV drive axle testing. The company researched why original CVs typically fail and designed new solutions to help avoid a repeat failure.

  • Neoprene boots: The black boots have 3 ribs and are designed with additional bellows, when needed, to resist bellow stress and cracking. Cracking is the leading cause of boot failure. Pneumatically crimped boot clamps seal each boot to its housing.
  • Straightness-checked steel shaft: Each 27 mm (1.063 in) steel shaft is individually verified for straightness to help limit vibration. Axle measurements are validated after assembly for a proper fit.
  • Precision-rolled splines and threads: The 27 inboard and 26 outboard splines are rolled for proper engagement with the transmission and hub. The threads are rolled for proper axle-nut fit. The transmission seal diameter is machined after heat treatment for a correct surface finish that promotes seal life.
  • Ready to install: The unit arrives with its CV joints, a toothed 50-tooth ABS tone ring, a new M24x1.5 hex axle nut (36 mm socket) and an instruction sheet. The joints use high-quality grease made to withstand high-temperature and high-torque demands.

Compressed length: 22.125 in (561.98 mm). Condition: new. Country of origin: China. Sold individually, one per position.

See the Buyer's Guide tab for full fitment details.

Frequently Asked Questions

Does this front axle fit both the left and right sides?

Yes. It is cataloged for both the front left and front right positions on the listed applications. It is sold individually, so order two if you are replacing both sides.

Is a new axle nut included?

Yes. A new M24x1.5 hex retaining nut is supplied, since the original may be worn or stripped. Tighten it with a torque wrench to the vehicle manufacturer's specification, never with an impact wrench.

What are signs a CV axle may need replacing?

Common signs include clicking when accelerating through a tight turn, grease around the wheel area from a torn boot, or vibration under acceleration. Diagnose first, as other parts can cause similar symptoms.

Does this axle include an ABS tone ring?

Yes. It includes a toothed ABS tone ring with 50 teeth. Avoid damaging the wheel speed sensor or its wiring during installation, because that damage can cause an erratic signal and an ABS warning light.

Should I replace the transaxle seal during installation?

CARDONE advises installing new transaxle seals when replacing CV drive axles to avoid leaks. Support the axle rather than letting it hang, and remove and install one axle at a time.
