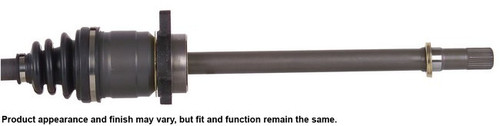

CARDONE New CV Axle Assembly 66-6245
CARDONE New CV Axle Assembly 66-6245 - view 2
CARDONE New CV Axle Assembly 66-6245 - view 3
CARDONE New CV Axle Assembly 66-6245
CARDONE New CV Axle Assembly 66-6245 - view 2
CARDONE New CV Axle Assembly 66-6245 - view 3

Front Right CV Axle for 2003-2007 Nissan Murano - CARDONE New 66-6245

Be the first to review this product
$179.99
MPN: 66-6245
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
CARDONE New CV Axle Assembly P/N:66-6245
CARDONE New CV Axle Assembly P/N:66-6245
$179.99

CARDONE New 66-6245 front right CV axle for the 2003-2007 Nissan Murano carries power from the transmission to the wheel. This CV axle assembly is a new part and comes with its CV joints.

  • Neoprene boots with extra bellows where needed resist bellow stress and cracking, the leading cause of boot failure
  • Shaft individually verified for straightness for vibration-free performance at all speeds
  • New axle retaining nut supplied with the axle
  • Boot clamps pneumatically crimped to seal the boot to the housing
  • Grease withstands high temperature and high torque demands
  • Precision-rolled splines and threads for fit in the hub, the transmission and the axle nut

Quick facts

  • Part: CARDONE New 66-6245 CV axle
  • Also called: CV axle assembly
  • Fits: 2003-2007 Nissan Murano
  • Position: Front right
  • Material: Steel shaft, neoprene boot
  • Condition: New

Clicking or snapping when you turn hard under power, a vibration, or grease thrown onto the chassis and suspension can mean a CV axle is wearing out. Before you replace it, look at the boot for tears and grease with the engine off, since a broken engine mount can also misalign the axle and cause similar symptoms.

Fits

This axle fits the 2003-2007 Nissan Murano, which takes one on the front right. The front left is a separate part and is ordered separately.

Specifications

Fit and size

  • Position: front right
  • Quantity per vehicle: 1
  • Shaft diameter: 29 mm (1.142 in)
  • Compressed length: 1012.83 mm (39.875 in)
  • Splines: 29 inboard, 29 outboard
  • Inboard joint mount holes: 3
  • Axle nut: hex, M24x1.5 thread, 36 mm (1.417 in) socket, 19 mm (0.748 in) long

Build and materials

  • Shaft material: steel
  • Boot material: neoprene
  • CV joints: included
  • Dynamic damper: attached
  • ABS tone ring: not included
  • Condition: new
  • Country of origin: China

In the box

One CV axle with its axle retaining nut and an instruction sheet.

Installation notes

  • Remove and install one axle at a time.
  • Tighten the axle nut with a torque wrench to the vehicle manufacturer's specification; never use an impact wrench.
  • Use a press-type tool to free the old stub shaft from the hub, never a hammer.
  • Install new transaxle seals to avoid leaks.

Interchange: 391001AA0A · 39100CA100 · 39100CC20A

This part cross-references / interchanges with the following part numbers:

391001AA0A, 39100CA100, 39100CC20A

Frequently Asked Questions

Is this front axle the right one for a 2006 Nissan Murano in the 2003-2007 range?

Yes. CARDONE New 66-6245 is the front right CV axle for the 2003-2007 Nissan Murano, and the vehicle takes one on that side. The front left is a separate part.

Does the CARDONE 66-6245 CV axle come with a new axle nut?

Yes. CARDONE New 66-6245 comes with a new hex axle retaining nut (M24x1.5) and an instruction sheet. The ABS tone ring is not included.

What are the shaft diameter and compressed length of this CV axle?

The shaft is 29 mm (1.142 in) in diameter and the compressed length is 1012.83 mm (39.875 in). Both the inboard and outboard ends have 29 splines.

Why does my ABS light stay on after installing a new CV axle?

The sensor ring, sensor or sensor wiring near the axle may have been damaged during installation, sending an erratic speed signal to the ABS module. This axle comes without an ABS tone ring.

Can I use an impact wrench to tighten the nut on this CV axle?

No. Use a torque wrench and tighten the nut to the vehicle manufacturer's specification. An impact wrench should never be used on the retaining nut.
