Rear CV Axle for 1966-1979 Volkswagen Beetle & More - CARDONE New 66-7023

$137.99

Vehicles this part fits

    Part number: 66-7023
    UPC: 884548205925
    Condition: New
    Weight: 11.20 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $137.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-7023
    CARDONE New CV Axle Assembly P/N:66-7023
    $137.99
    $137.99

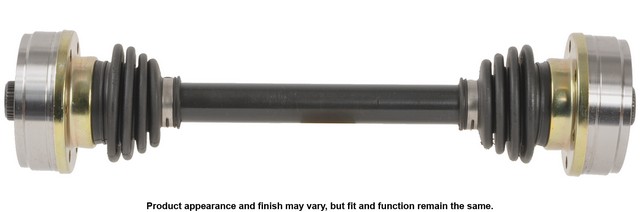

    CARDONE New 66-7023 rear CV axle for the 1966-1979 Volkswagen Beetle and other vehicles carries drive torque to the rear wheel while the suspension moves. This complete CV axle assembly includes its CV joints.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking
    • Each shaft is individually verified for straightness to help limit vibration at speed
    • Pneumatically crimped boot clamps seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for proper fit in the hub, the transmission and the axle nut
    • Transmission seal diameter precision-machined after heat treatment for the correct surface finish

    Quick facts

    • Part: CARDONE New 66-7023 CV axle
    • Also called: CV axle assembly
    • Fits: 1966-1979 Volkswagen Beetle and other vehicles
    • Position: Rear right, rear left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping on a hard turn under throttle, or grease thrown onto nearby chassis and suspension parts, can mean a joint or boot is failing. Before replacing the axle, look with the engine off and cold for a torn boot or flung grease that you can see without lifting the car. If you find none, the cause may be elsewhere, such as an engine mount, so have a shop find it first.

    Fits

    It fits the 1966-1979 Volkswagen Beetle and the 1966-1968 Porsche 912. This listing is one axle for either rear side; the matching axle on the other side is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: rear right, rear left
    • Quantity per application: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 417 mm (16.417 in)
    • Inboard joint type: bolt-on
    • Outboard joint type: flanged

    Build and materials

    • Condition: new
    • Shaft material: steel
    • Boot material: neoprene
    • Boot ribs: 3
    • ABS tone ring: not included
    • Country of origin: China

    In the box

    One complete CV axle and one instruction sheet. The axle nut is not included; a prevailing torque lock nut should never be reused, so plan on a new one.

    Installation notes

    • Remove and install one axle at a time, and never let an axle hang unsupported.
    • Tighten the axle nut with a torque wrench to the vehicle maker's specification, never with an impact wrench.
    • Install new transaxle seals when replacing axles to avoid leaks.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this CV axle the right one for a 1966-1979 VW Beetle?

    Yes. CARDONE New 66-7023 is listed for the 1966-1979 Volkswagen Beetle, for either rear side, with a quantity of one per application.

    Does this CV axle come with an axle nut?

    No. CARDONE 66-7023 comes as one complete axle with an instruction sheet. The axle nut is not included, so plan on a new one.

    What size is the shaft on this CV axle?

    The shaft diameter is 27 mm (1.063 in) and the compressed length is 417 mm (16.417 in).

    What can cause a thump and vibration when accelerating with a CV axle?

    A thump and vibration under acceleration can come from a damaged CV joint, among other causes. A shop can pin down which part is responsible.

    How do I get the stub shaft out of the hub on a CV axle?

    Use the proper press-type tool. Never strike the outer joint stub shaft with a hammer, which can damage the axle and the hub bearing assembly.
