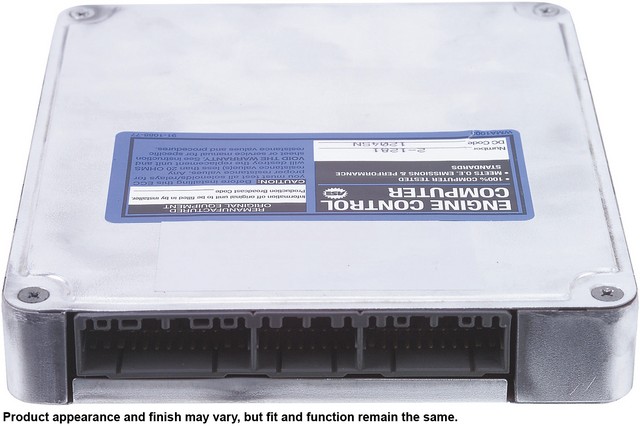

A1 CARDONE 72-1281 engine control module (ecm) for the 1993 Toyota Corolla 4-cylinder 1.8L is a remanufactured computer that controls the engine. This A1 CARDONE ecm is rebuilt after reverse engineering shows why the original unit failed, so its design weaknesses can be corrected.
- Critical components are re-soldered or replaced for solid electrical connections that help prevent intermittent failures
- Each unit is 100% computer tested, on automated equipment or by bench test depending on application
- On-car vehicle validation tests durability and performance
- 54 blade terminals and 3 rectangular connectors, all male
Quick facts
- Part: A1 CARDONE 72-1281 engine control module (ecm)
- Fits: 1993 Toyota Corolla 4-cylinder 1.8L
- Condition: Remanufactured
A check engine light that stays on after a reset, an engine that shuts off for no reason or intermittent starting can mean the module is failing, but a bad wiring harness or short-circuited solenoids may be the real culprit, so find out which before replacing the module.
Fits
This engine control module is a direct-fit replacement for the 1993 Toyota Corolla 4-cylinder 1.8L, and that car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 6.6 in
- Width: 157.48 mm (6.2 in)
- Height: 1.2 in
- Terminals: 54, blade, male
- Connectors: 3, rectangular, male
Build and materials
- Condition: Remanufactured
- Flashable: No
- Removable PROM: No
- Country of origin: Mexico
In the box
One engine control module and one instruction sheet. Mounting hardware is not included, and the old hardware may not be reusable.
Interchange: 8966102050 · 896611A050
Frequently Asked Questions
Does the A1 CARDONE 72-1281 fit the 1993 Toyota Corolla 4-cylinder 1.8L?
Yes. A1 CARDONE 72-1281 is a direct-fit engine control module for the 1993 Toyota Corolla 4-cylinder 1.8L, which takes one.
Does this remanufactured engine control module come with mounting hardware?
No. The box holds the module and an instruction sheet. Mounting hardware is not included.
How many terminals and connectors does the A1 CARDONE 72-1281 have?
The A1 CARDONE 72-1281 has 54 blade terminals and 3 rectangular connectors. Both the terminals and the connectors are male.
What's the difference between this engine control module and a PCM?
ECM stands for Electronic Control Module and PCM for Powertrain Control Module. Both control the engine, but a PCM also has control over the transmission.
How is the A1 CARDONE 72-1281 tested?
Each unit is 100% computer tested, using automated computer equipment or a bench test depending on application. On-car vehicle validation also tests durability and performance.
