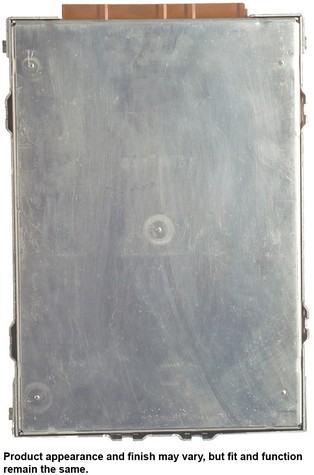

A1 CARDONE 77-8322 engine control module (ecm) for the 1988-1989 Cadillac Commercial Chassis V8 4.5L and other vehicles is a remanufactured computer that controls the engine.
- Reverse engineering shows how the original unit failed, so design weaknesses can be corrected
- Critical components are re-soldered or replaced, which helps prevent intermittent failures
- Every unit is 100% computer tested, using automated equipment or bench testing depending on application
- On-car vehicle validation checks durability and performance
- Remanufacturing reduces the energy and raw material needed to make a new part by 80%
Quick facts
- Part: A1 CARDONE 77-8322 engine control module (ecm)
- Fits: 1988-1989 Cadillac Commercial Chassis V8 4.5L and other vehicles
- Condition: Remanufactured
A check engine light that stays on after a reset, an engine that shuts off for no reason or intermittent starting problems can mean the module is failing. Poor grounds and power, a bad wiring harness and short-circuited solenoids or relays can be behind the same signs, so find the cause before buying a replacement.
Fits
The 1988-1989 Cadillac Commercial Chassis V8 4.5L, the 1988-1989 Cadillac DeVille V8 4.5L and the 1988-1989 Cadillac Eldorado V8 4.5L all take this module, and so do more Cadillac models. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, rectangular, female
- Terminals: 56, pin type, male
- Length: 8.81 in (223.77 mm)
- Width: 6.01 in (152.65 mm)
- Height: 1.5 in
Build and materials
- Condition: Remanufactured
- Grade: Standard Replacement
- Flashable: No
- Removable PROM: Yes
- Contains a circuit board
- Country of origin: Mexico
In the box
One module and one instruction sheet. Mounting hardware is not included, so plan on new mounting hardware, since the old pieces may not be reusable. This listing holds one module, and the vehicle needs one.
Installation notes
- Some GM applications have a knock module that must be transferred to the replacement module.
- The instruction sheet that comes with the module covers the installation steps.
Interchange: 1228322
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the A1 CARDONE 77-8322 fit the 1988-1989 Cadillac DeVille V8 4.5L?
Yes. A1 CARDONE 77-8322 fits the 1988-1989 Cadillac DeVille V8 4.5L. Other Cadillac models are covered in the "Vehicles it fits" section.
Does this A1 CARDONE ecm come with mounting hardware?
No. The box holds one module and an instruction sheet; mounting hardware is not included.
How many pins does the A1 CARDONE 77-8322 module have?
The module has 56 male pin terminals and 2 rectangular female connectors.
Can a loss of spark mean an engine control module is failing?
It can, and so can a loss of fuel injection or a loss of pulse to the fuel pump. A shop can test the module to confirm.
Is the A1 CARDONE 77-8322 an ECM or a PCM?
It is an engine control module (ECM). An ECM controls the engine, while a PCM also has control over the transmission.
