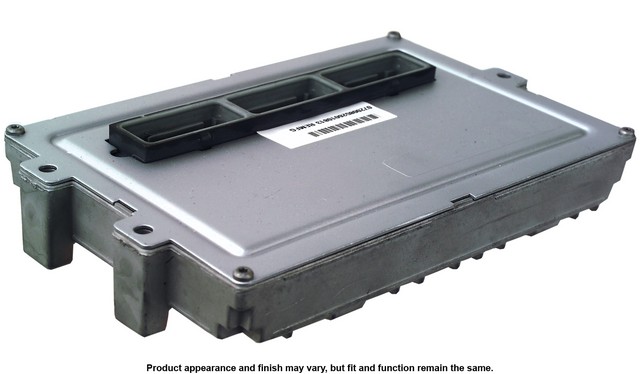

A1 CARDONE 79-4685V engine control module (ecm) for the 2000 Jeep Grand Cherokee V8 4.7L is a remanufactured computer that controls the engine. An ECM controls the engine, while a PCM also has control over the transmission.
- Reverse engineering of the original failure lets engineers find and correct design weaknesses
- Critical components are re-soldered or replaced for sound electrical connections
- Every unit is 100% computer tested, on automated equipment or a bench tester depending on application
- On-car vehicle validation tests durability and performance
- Remanufacturing cuts the energy and raw material needed to make a new part by 80%
Quick facts
- Part: A1 CARDONE 79-4685V engine control module (ecm)
- Fits: 2000 Jeep Grand Cherokee V8 4.7L
- Condition: Remanufactured
A check engine light that stays on after a reset, an engine that shuts off for no reason or intermittent starting problems can mean the module is failing. Weak grounds or power, a damaged wiring harness and shorted solenoids or relays can be behind those symptoms as well, so track down the real cause before buying a module.
Fits
This A1 CARDONE ecm is a direct-fit replacement for the 2000 Jeep Grand Cherokee V8 4.7L, and the vehicle takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 9.4 in
- Width: 6.7 in (170.18 mm)
- Height: 1.6 in
- Connectors: 3, rectangular, female
- Terminals: 96, male pin
- Mounting holes: 3
Build and materials
- Condition: Remanufactured
- Grade: Standard replacement
- Flashable: Yes
- Removable PROM: No
- Country of origin: Mexico
In the box
One remanufactured engine control module and one instruction sheet. Mounting hardware is not included, so plan on new fasteners.
Installation notes
- The instruction sheet that comes with the module covers the steps.
- Make sure the module is properly flash programmed for the vehicle.
Interchange: 56044683AB · 56044683AC · 56044683AD · 56044683AF · 56044683AG · 56044683AH · 56044683AI
This part cross-references / interchanges with the following part numbers:
56044683AB, 56044683AC, 56044683AD, 56044683AF, 56044683AG, 56044683AH, 56044683AI
Frequently Asked Questions
Is this A1 CARDONE 79-4685V ecm the right one for a 2000 Jeep Grand Cherokee V8 4.7L?
Yes. A1 CARDONE 79-4685V is listed for the 2000 Jeep Grand Cherokee V8 4.7L, and the vehicle takes one module.
Does this remanufactured engine control module come with mounting hardware?
No. A1 CARDONE 79-4685V comes with the module and an instruction sheet only. Mounting hardware is not included.
How many connectors and pins does this engine control module have?
The module has three rectangular female connectors and 96 male pin terminals, with three mounting holes.
Is an ECM the same as a PCM?
No. Both control the engine, but a PCM also has control over the transmission.
Can a bad ecm cause loss of spark?
Yes, a failing engine control module can be one source of lost spark, lost fuel injection or no pulse on the fuel pump. Other faults can cause them too, so a shop should test it.
