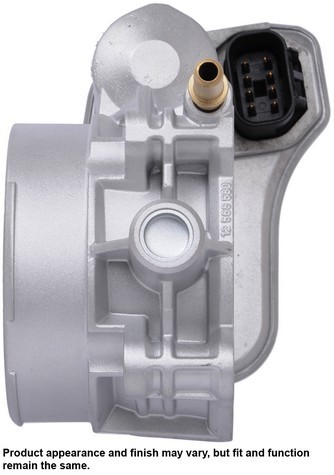

A1 CARDONE 67-3006 fuel injection throttle body for the 2006-2007 Chevrolet Impala V8 5.3L and other vehicles meters the air that enters the engine. This remanufactured throttle body is built to function like the original.
- Disassembled and inspected, with each component renewed or replaced
- Specialized cleaning process that keeps the throttle bore surface from being deformed
- Integrated high and low throttle position sensors tested throughout the entire operational range
- Final assembly tested for response time and air flow at multiple points
- Single venturi with a circular inlet and outlet
Quick facts
- Part: A1 CARDONE 67-3006 fuel injection throttle body
- Fits: 2006-2007 Chevrolet Impala V8 5.3L and other vehicles
- Condition: Remanufactured
Rough idle, slow response to the pedal or a check engine light do not by themselves point to this part; a dirty mass airflow sensor is another common source of them.
Fits
This throttle body also fits the 2004-2006 Chevrolet Colorado 5-cylinder 3.5L and the 2007 Colorado 5-cylinder 3.7L, as well as the 2004-2006 GMC Canyon 5-cylinder 3.5L and the 2007 Canyon 5-cylinder 3.7L, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 85 mm (3.35 in)
- Bore diameter: 77 mm (3.035 in)
- Outlet diameter: 77 mm (3.035 in)
- Inlet and outlet type: Circle
Build and materials
- Throttle body type: Electric
- Throttle position sensor: included
- Terminal type: Blade
- Connector shape: Rectangular
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One throttle body and one instruction sheet. Mounting hardware, gaskets or seals, fuel injectors, an idle air control motor and a throttle body spacer are not included, so plan on new mounting hardware rather than reusing the old.
Interchange: 12568580
Frequently Asked Questions
Does the A1 CARDONE 67-3006 throttle body fit the 2006-2007 Chevrolet Impala V8 5.3L?
Yes. A1 CARDONE 67-3006 fits the 2006-2007 Chevrolet Impala V8 5.3L and takes one per vehicle. If your car is a different model, look for it in the "Vehicles it fits" section.
Does this throttle body come with a gasket or mounting hardware?
No. The box holds one throttle body and an instruction sheet. Gaskets or seals, mounting hardware, fuel injectors and an idle air control motor are not included.
What are the inlet and bore sizes of the A1 CARDONE 67-3006?
A1 CARDONE 67-3006 has an 85 mm (3.35 in) inlet, and its bore and outlet are both 77 mm (3.035 in).
Is the throttle position sensor included with this throttle body?
Yes. This remanufactured throttle body includes integrated high and low throttle position sensors, which are tested throughout the entire operational range.
What can a failing throttle body feel like while driving?
A rough idle, slow response when you press the pedal or a check engine light can go with a worn throttle body. A shop can scan for codes to help find the cause.
