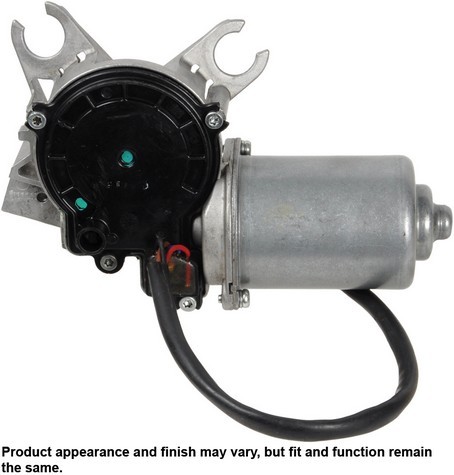

A1 CARDONE 40-10013 front windshield wiper motor for the 2008-2015 Chevrolet Captiva Sport and other vehicles drives the wiper arms across the glass. This remanufactured unit is re-engineered, built and tested to match O.E. performance.
- Armature, field, bearing and parking switch or pulse board tested or gauged; finished motor function-tested on the vehicle
- Every motor bearing re-impregnated or replaced as needed
- Lubricant applied to the output gear for load capacity and long life
- Weak solder points 100% reflowed to extend life expectancy
- Motor magnets 100% recharged for performance and reliability
Quick facts
- Part: A1 CARDONE 40-10013 windshield wiper motor
- Fits: 2008-2015 Chevrolet Captiva Sport and other vehicles
- Position: Front
- Material: Cast aluminum
- Condition: Remanufactured
A defective washer pump (some wiper motors will not run with one), a poor ground at the harness or ground strap, or a faulty switch can be behind wipers that stop mid-glass or do not move, so find the cause before buying a motor.
Fits
It fits the 2008-2015 Chevrolet Captiva Sport and the 2008-2010 Saturn Vue. As a remanufactured Original Equipment part, it is a direct fit for these vehicles.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 1
- Mounting type: direct bolt, grommet
- Mounting holes: 4
- Wiper speeds: 2
- Terminals: 4 male blade, 4 wires
- Wiring harness length: 330.2 mm
Build and materials
- Material: cast aluminum
- Condition: remanufactured
- Electronic components: circuit board
- Country of origin: Mexico
In the box
One windshield wiper motor with its wiring harness and one instruction sheet. The washer pump is not included. This listing holds one motor, and each vehicle takes one.
Interchange: 20829042 · 96673024 · 96673047
This part cross-references / interchanges with the following part numbers:
20829042, 96673024, 96673047
Frequently Asked Questions
Does this windshield wiper motor fit the 2008-2010 Saturn Vue?
Yes. A1 CARDONE 40-10013 fits the 2008-2010 Saturn Vue and the 2008-2015 Chevrolet Captiva Sport.
Does the A1 CARDONE windshield wiper motor come with its wiring harness?
Yes. A1 CARDONE 40-10013 includes its wiring harness and an instruction sheet. The washer pump is not included.
How many speeds does this remanufactured windshield wiper motor have?
This windshield wiper motor has two speeds and a four-terminal male blade connector.
What gets tested on this remanufactured windshield wiper motor?
The armature, field, bearing and parking switch or pulse board are tested or gauged, and the finished motor is tested for each function on the vehicle.
Is 96673024 an interchange number for this windshield wiper motor?
Yes. 96673024 is listed as an interchange number for A1 CARDONE 40-10013, along with 20829042 and 96673047.
