Cloyes 9-4220S timing chain kit for the 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles replaces the chains, tensioners, guides and sprockets of the engine's timing drive. The kit puts the timing parts in one box so the whole set is changed at once.
- Chains are pre-stressed and heat-treated
- Precision pitch control for chain-to-sprocket fit, to reduce noise and fatigue and keep timing accurate
- CAD-designed, heat-treated sprockets with precision-tooled tooth form, bore, off-set and timing index
- Chain guides give the timing chain a track that keeps the crankshaft and camshaft in alignment
- Every part is tested for function, fitment and durability
Quick facts
- Part: Cloyes 9-4220S timing chain kit
- Also called: engine timing chain kit
- Fits: 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles
- Condition: New
A rattle from the front of the engine or a timing-related warning light can mean a stretched chain or worn guides. Before you replace this engine timing chain kit, rule out other sources of those signs first so you fix the right thing. Once you do replace it, change the timing parts together, as the kit supplies them.
Fits
This direct-fit timing chain kit suits the 2009-2019 Toyota Corolla 4-cylinder 1.8L, the 2010-2019 Toyota Prius 4-cylinder 1.8L and the 2017-2019 Toyota Prius Prime 4-cylinder 1.8L, with one kit per car. If your car is not named here, run its year, make and model through the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: L4-1.8L
Build and materials
- Condition: New
- Warranty: Cloyes Limited Lifetime Warranty
- Country of origin: China
In the box

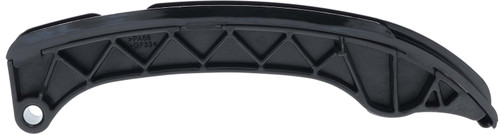

One timing chain, one oil pump chain, one timing chain tensioner, one oil pump chain tensioner, two timing chain guides, one timing chain tensioner guide, two timing crankshaft sprockets and one oil pump sprocket.
Frequently Asked Questions
Will the Cloyes 9-4220S timing chain kit fit a 2009-2019 Toyota Corolla 4-cylinder 1.8L?
Yes. Cloyes 9-4220S is listed for the 2009-2019 Toyota Corolla 4-cylinder 1.8L, and that car takes one kit.
Which chains, guides and sprockets come in the Cloyes 9-4220S kit?
Cloyes 9-4220S holds a timing chain, an oil pump chain, two tensioners, three guides and three sprockets: two crankshaft sprockets and one oil pump sprocket.
Are the chains in this timing chain kit heat-treated?
Yes. The chains are pre-stressed and heat-treated, and the sprockets are heat-treated as well.
Can I keep driving with a rattling timing chain?
No. A rattling timing chain can mean worn timing parts, so have the engine checked or the parts replaced promptly instead of driving on it.
How do the tensioners in a timing chain kit keep the chain tight?
Timing chain tensioners can use spring tension or hydraulic pressure to hold the chain at the right tension, depending on the application.
