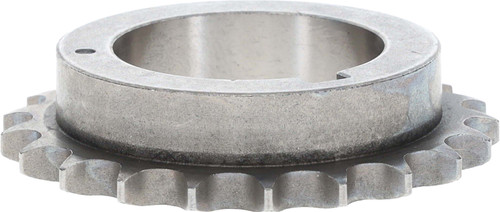

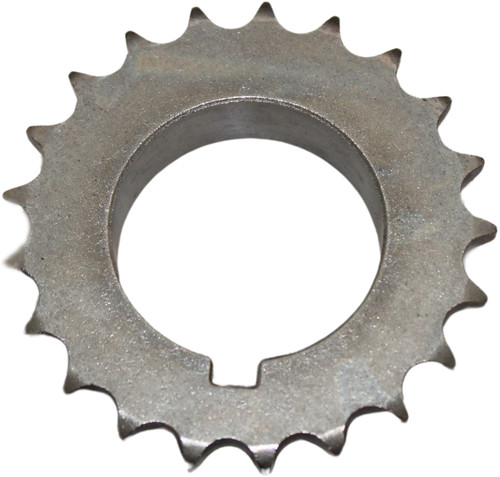

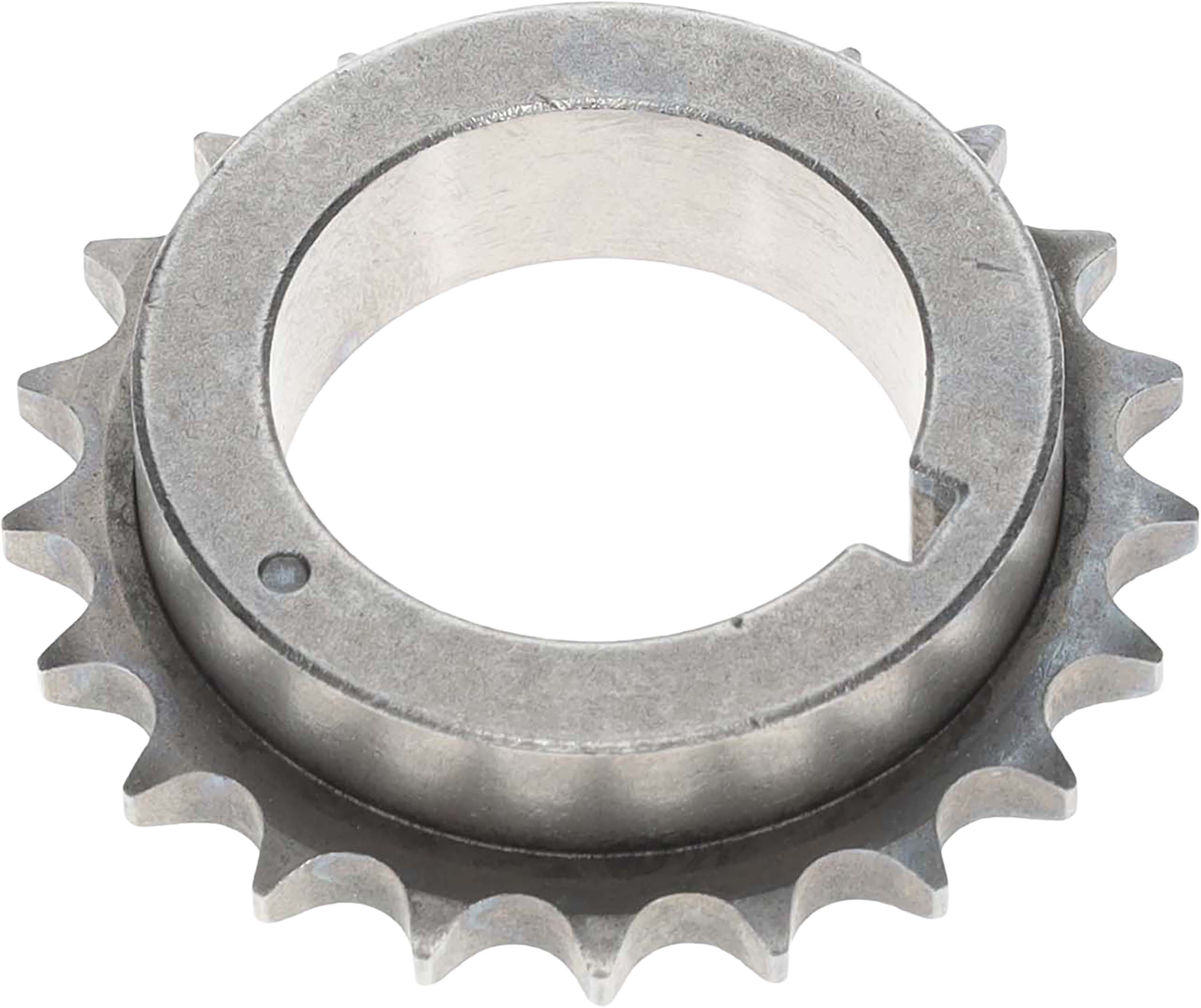

Cloyes S1127 outer timing crankshaft sprocket for the 2013-2017 Mazda CX-5 4-cylinder 2.0L and other vehicles drives the timing chain from the crankshaft. Also called an engine timing crankshaft sprocket, it works with the chain, tensioners, guides and other sprockets to keep engine timing precise.
- Precision-tooled tooth form, bore, off-set and timing index for fit and long-term performance
- CAD designed and heat-treated for smooth installation and reliable performance
- Each sprocket is tested for function, fitment and durability
- Stand-alone sprocket, sold individually
Quick facts
- Part: Cloyes S1127 timing crankshaft sprocket
- Also called: engine timing crankshaft sprocket
- Fits: 2013-2017 Mazda CX-5 4-cylinder 2.0L and other vehicles
- Position: Outer
- Condition: New
Worn or damaged sprocket teeth can show up as a rattle near the timing chain, rough running or a timing-related warning light. A stretched chain, a worn tensioner or worn guides can be behind those symptoms too, so work out which part is at fault before you order.
Fits
It is a direct-fit replacement, listed for a wide range of Mazda models, led by the 2013-2017 Mazda CX-5 4-cylinder 2.0L, the 2016-2020 Mazda CX-3 4-cylinder 2.0L and the 2016-2020 Mazda MX-5 4-cylinder 2.0L. This listing is one sprocket, and a 2016-2020 Mazda CX-3 4-cylinder 2.0L takes one. Driving a different Mazda? Look up your year and engine in the Buyer's Guide tab on this page.
Specifications
Fit and size
- Position: Outer
- Quantity per vehicle: 1
- Mounting hole diameter: 30.036 mm (1.183 in)
- Mounting hole quantity: 1
- Tooth width: 4.064 mm (0.16 in)
- Width: 12.179 mm (0.48 in)
- Timing mark quantity: 1
Build and materials
- Chain type: Roller, 1 chain row
- Heat-treated
- Condition: New
- Warranty: Cloyes Limited Lifetime Warranty
