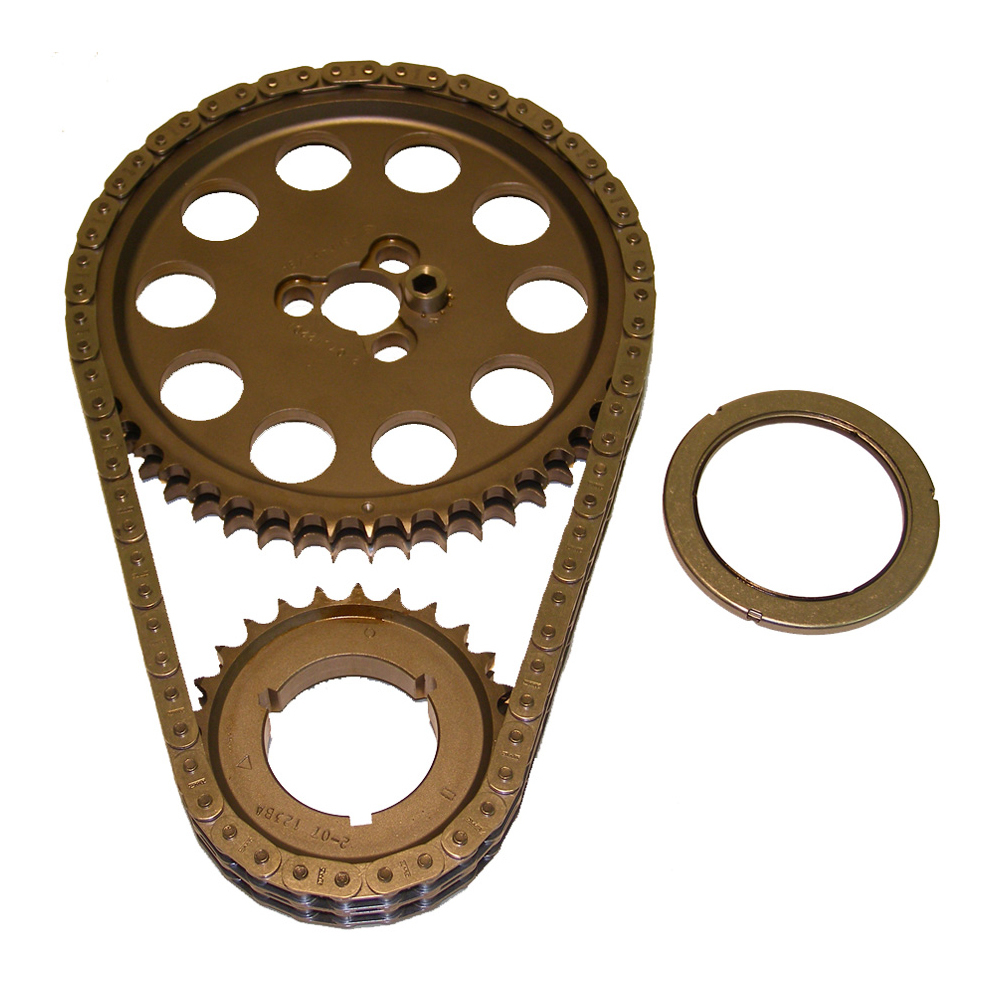

Cloyes 9-3110A timing set for the 1990-1993 Chevrolet C1500 V8 7.4L and other vehicles drives the camshaft from the crankshaft so valve timing stays in step with the pistons. This Cloyes Hex-A-Just timing set is a double roller set for tuning cam timing.
- Infinite valve timing adjustment of +/-6 degrees to tune engine performance output
- One-piece camshaft sprocket with a billet eccentric camshaft dowel bushing
- Billet steel sprockets, both heat treated for durability
- TRUE Roller chain with a 0.250" roller diameter for reduced friction
- Captured needle camshaft sprocket thrust bearing to minimize block thrust surface friction
- Cloyes High Performance double roller timing set
Quick facts
- Part: Cloyes 9-3110A timing set
- Also called: engine timing set
- Fits: 1990-1993 Chevrolet C1500 V8 7.4L and other vehicles
- Condition: New
A worn timing set can show up as a rattle from the front of the engine or rough running, though those symptoms can start elsewhere. Before replacing it, have a shop inspect the chain slack and sprocket teeth with the engine off.
Fits
The set is listed for a wide range of Chevrolet and GMC models, including the 1990-1993 Chevrolet C1500 V8 7.4L, the 1965-1969 Chevrolet Impala V8 6.5L, the 1966-1969 Impala V8 7.0L, the 1970-1974 Impala V8 6.6L and the 1970-1976 Impala V8 7.4L, and the 1967-1969 Chevrolet Camaro V8 6.5L, the 1969 Camaro V8 7.0L and the 1970-1972 Camaro V8 6.6L. If your car or truck isn't named here, look up its year and engine on the Buyer's Guide tab.
Specifications
Fit and size
- Quantity per vehicle: 1
- Chain roller diameter: 0.250"
- Valve timing adjustment: +/-6 degrees
Build and materials
- Type: double roller timing set
- Sprockets: billet steel, heat treated
- Camshaft sprocket: one piece, billet eccentric dowel bushing
- Thrust bearing: captured needle
- Condition: New
In the box
Two billet steel sprockets, a double roller chain and a captured needle camshaft sprocket thrust bearing. This listing is one set, and each vehicle takes one.
