Cloyes 9-3600TX9 timing set for the 1959-1967 Chevrolet Impala V8 4.6L, the 1962-1969 Impala V8 5.3L, the 1968 Impala V8 5.0L, the 1969-1971 Impala V8 5.7L, the 1970-1976 Impala V8 6.6L, the 1974-1982 Impala V8 5.7L, the 1979-1984 Impala V8 5.0L, the 1980-1982 Impala V8 4.4L, the 1980-1984 Impala V6 3.8L and other vehicles links the crankshaft to the camshaft with a double roller chain, so the valves open in time with the pistons. As an engine timing set, this Cloyes timing set is a High Performance design with billet steel sprockets.
- Billet crankshaft sprocket with nine keyways for +/- 8 degrees of adjustability
- Both billet steel sprockets are heat treated for durability
- True roller chain with a 0.250 in roller diameter for reduced friction
- Captured needle camshaft sprocket thrust bearing to minimize block thrust surface friction
- Three-piece set hand-matched for the correct center distance and minimal runout
Quick facts
- Part: Cloyes 9-3600TX9 timing set
- Also called: engine timing set
- Fits: the 1959-1967 Chevrolet Impala V8 4.6L, the 1962-1969 Impala V8 5.3L, the 1968 Impala V8 5.0L, the 1969-1971 Impala V8 5.7L, the 1970-1976 Impala V8 6.6L, the 1974-1982 Impala V8 5.7L, the 1979-1984 Impala V8 5.0L, the 1980-1982 Impala V8 4.4L, the 1980-1984 Impala V6 3.8L and other vehicles
- Condition: New
A stretched chain or worn sprockets can show up as a rattle from the front of the engine or as uneven running. Before you replace the timing set, rule out other sources of front-of-engine noise, such as a loose accessory component, and ignition faults that also make an engine run rough.
Fits
The vehicles it fits include the 1978-1979 Chevrolet Malibu V6 3.3L, the 1978-1981 Malibu V8 5.7L, the 1979-1982 Malibu V8 4.4L, the 1979-1983 Malibu V8 5.0L, the 1980-1983 Malibu V6 3.8L, and the 1961-1966 Chevrolet Suburban V8 4.6L and the 1966 Suburban V8 5.3L. Order one set per engine. If your car is not named here, look up your year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per application: 1
- Set: 3 pieces
- Chain roller diameter: 0.250 in
- Crankshaft sprocket: 9 keyways, +/- 8 degrees adjustability
Build and materials
- Chain type: double roller, true roller
- Sprockets: billet steel, heat treated
- Thrust bearing: captured needle, for the camshaft sprocket
- Condition: New
In the box

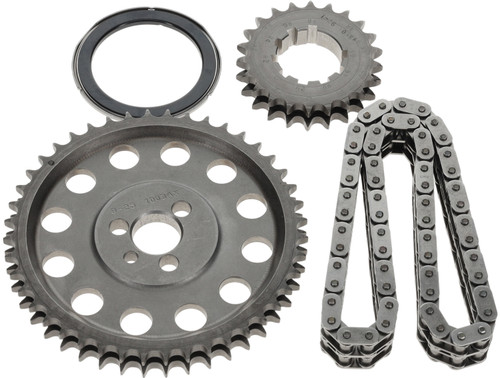

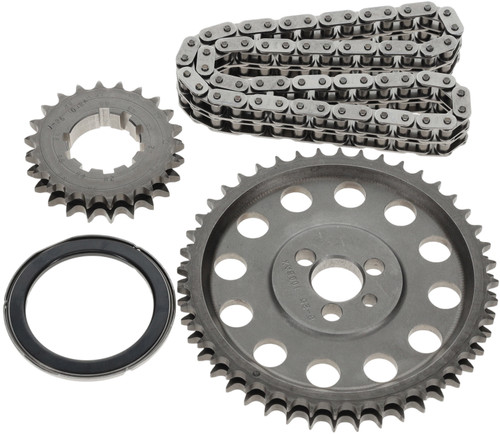

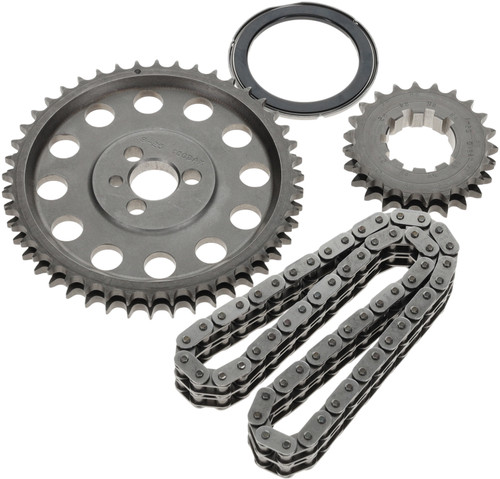

One timing set with a billet steel crankshaft sprocket, a billet steel camshaft sprocket, a roller chain and a captured needle camshaft sprocket thrust bearing.
Frequently Asked Questions
Does the Cloyes 9-3600TX9 fit the 1978-1979 Chevrolet Malibu V6 3.3L?
Yes. Cloyes 9-3600TX9 fits the 1978-1979 Chevrolet Malibu V6 3.3L, and the engine takes one set. For any other car, check its year, model and engine in the "Vehicles it fits" section.
Does the Cloyes 9-3600TX9 timing set come with a thrust bearing?
Yes. The Cloyes 9-3600TX9 includes a captured needle camshaft sprocket thrust bearing, plus the two billet steel sprockets and the roller chain.
How far can the crankshaft sprocket on this double roller timing set be adjusted?
The billet crankshaft sprocket has nine keyways, which give +/- 8 degrees of adjustability.
Can a rattle at the front of the engine point to a worn timing chain?
Yes, it can. A rattle at the front of the engine or rough running can be a sign of chain stretch or sprocket wear, though other parts can make similar noises, so a shop can inspect the timing drive.
Does Cloyes offer 9-3600TX9 with a reduced center distance?
Yes. Cloyes makes 0.005 in and 0.010 in reduced center distance sets; add -5 or -10 to the end of 9-3600TX9 when ordering.
