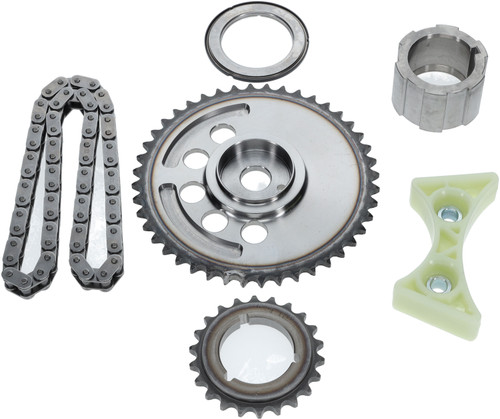

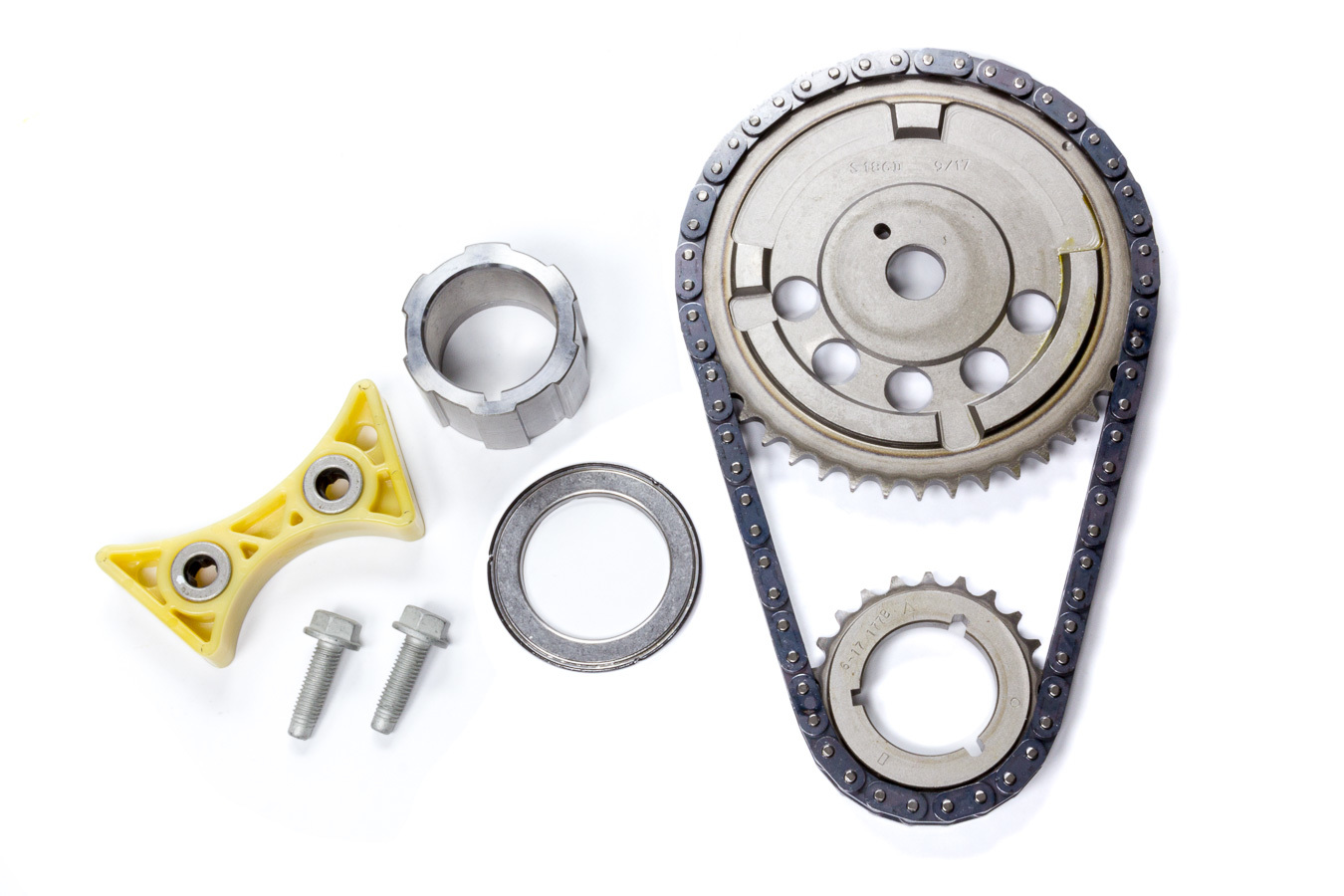

Cloyes 9-3673TX3 timing set for the 2007-2013 GMC Sierra 1500 V8 4.8L or 6.0L, the 2007-2015 Sierra 1500 V8 5.3L or 6.2L and other vehicles links the crankshaft to the camshaft so the valves open and close in time. Also called an engine timing set, it uses a single roller chain and is built for performance use.
A stretched chain or worn sprockets can show up as a rattle from the front of the engine, a check-engine light or uneven running. A failing camshaft position sensor or crankshaft position sensor can also produce some of these signs, so find the cause before you replace the set.
This timing set is listed for a wide range of Chevrolet and GMC models, including the 2007-2009 Chevrolet Tahoe V8 4.8L, the 2007-2015 Tahoe V8 5.3L, the 2008-2009 Tahoe V8 6.2L and the 2008-2013 Tahoe V8 6.0L. The 2007-2009 GMC Yukon V8 4.8L, the 2007-2015 Yukon V8 5.3L or 6.2L and the 2008-2013 Yukon V8 6.0L are on the list too, and every one of these engines takes one set. Open the Buyer's Guide tab to check your exact model and engine.
Fit and size
Build and materials
Does the Cloyes 9-3673TX3 fit the 2007-2015 Chevrolet Tahoe V8 5.3L?
Yes. Cloyes 9-3673TX3 is listed for the 2007-2015 Chevrolet Tahoe V8 5.3L, and that engine takes one set. For any other model, open the Buyer's Guide tab.
How much can the crankshaft sprocket be adjusted on this timing set?
The billet crankshaft sprocket has three keyways, which give +/- 4 degrees of adjustability.
What kind of chain comes with Cloyes 9-3673TX3?
Cloyes 9-3673TX3 uses a single roller chain with a true roller design and a 0.250 in roller diameter, which reduces friction.
Does this timing set include a camshaft thrust bearing?
Yes. A captured needle thrust bearing goes with the camshaft sprocket to minimize friction at the block thrust surface.
Why does this timing set come hand-matched?
The three pieces are matched by hand so the set gives the correct center distance and keeps runout to a minimum.
