Cloyes 9-3658TX9 timing set for the 1999-2007 Chevrolet Silverado 1500 V8 4.8L or 5.3L, the 2003-2007 Silverado 1500 V8 6.0L and other vehicles keeps the camshaft turning in step with the crankshaft. This performance set is built around a roller chain and two billet steel sprockets.
- Billet crankshaft sprocket with nine keyways for +/- 8 degrees of adjustability
- Billet steel crankshaft and camshaft sprockets, both heat treated for durability
- True roller chain with a 0.250 in roller diameter for reduced friction
- Captured needle camshaft sprocket thrust bearing to minimize block thrust surface friction
- Three-piece set hand-matched for the correct center distance and minimal runout
Quick facts
- Part: Cloyes 9-3658TX9 timing set
- Also called: engine timing set
- Fits: 1999-2007 Chevrolet Silverado 1500 V8 4.8L or 5.3L, the 2003-2007 Silverado 1500 V8 6.0L and other vehicles
- Material: Steel
- Condition: New
A worn engine timing set can show up as a rattle from the front of the engine, rough running or a timing-related warning light, though other parts can cause those signs too. Before replacing the set, find the cause: with the engine off and cool, look at the drained oil for metal flakes during an oil change, and leave the timing tests that need the engine running to a shop. Each engine takes one set, with one chain running between the crankshaft and camshaft sprockets.
Fits
This timing set is a direct-fit replacement for the 1999-2007 GMC Sierra 1500 V8 4.8L or 5.3L, the 2001-2007 Sierra 1500 V8 6.0L, the 1999-2004 Chevrolet Silverado 2500 V8 6.0L, the 1999-2007 Silverado 2500 V8 5.3L, the 2001-2002 Silverado 2500 V8 5.7L and the 2006-2007 Silverado 2500 V8 4.8L. If your vehicle is not named here, open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pieces in the set: 3
- Roller diameter: 0.250 in
- Crankshaft sprocket: nine keyways, +/- 8 degrees adjustability
Build and materials
- Material: Steel
- Sprockets: billet steel, heat treated
- Chain: single roller, true roller
- Camshaft sprocket thrust bearing: captured needle
- Condition: New
In the box

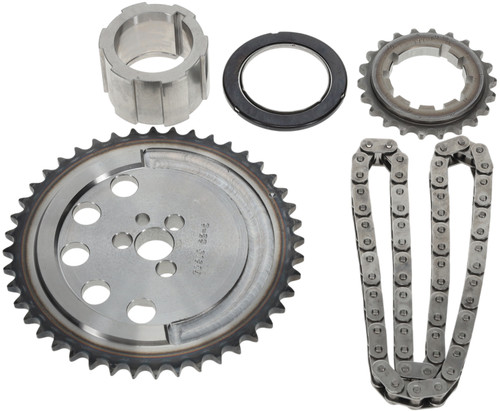

One timing set: a billet crankshaft sprocket, a billet camshaft sprocket, a roller chain and a captured needle camshaft sprocket thrust bearing.
Frequently Asked Questions
Does the Cloyes 9-3658TX9 timing set fit the 1999-2007 GMC Sierra 1500 V8 4.8L or 5.3L?
Yes, Cloyes 9-3658TX9 fits the 1999-2007 GMC Sierra 1500 V8 4.8L or 5.3L and the 2001-2007 Sierra 1500 V8 6.0L; for any other truck, look up your exact engine in the "Vehicles it fits" section.
How far can the crankshaft sprocket on this timing set be adjusted?
The billet crankshaft sprocket has nine keyways, which gives +/- 8 degrees of adjustability.
What kind of chain does this timing set use?
It uses a single roller chain with 0.250 in true rollers to reduce friction, paired with heat-treated billet steel sprockets.
Does the Cloyes 9-3658TX9 come with a camshaft thrust bearing?
Yes, the Cloyes 9-3658TX9 includes a captured needle camshaft sprocket thrust bearing, which minimizes block thrust surface friction, along with the two sprockets and the chain.
Are the sprockets and chain in this timing set matched to each other?
Yes, the three-piece set is hand-matched so the center distance is correct and runout is kept to a minimum.
