Timing Set for 2006-2007 Cadillac CTS & More - Cloyes 9-3672TX9Z

$453.99
WARNING:California Proposition 65▾
Cloyes High Performance Engine Timing Set 9-3672TX9Z - view 2
Cloyes High Performance Engine Timing Set 9-3672TX9Z
video
Cloyes High Performance Engine Timing Set 9-3672TX9Z - view 2
Cloyes High Performance Engine Timing Set 9-3672TX9Z
video

Vehicles this part fits
    Part number: 9-3672TX9Z
    UPC: 750385809797
    Condition: New
    Weight: 3.00 LBS
    Item Package Quantity: 1
    $453.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Cloyes High Performance Engine Timing Set P/N:9-3672TX9Z
    Cloyes High Performance Engine Timing Set P/N:9-3672TX9Z
    $453.99
    $453.99

    Cloyes 9-3672TX9Z timing set for the 2006-2007 Cadillac CTS V8 6.0L and other vehicles keeps the camshaft in time with the crankshaft. It is a single roller set with a "Z" chain that is approximately 33% stronger overall than the standard high performance chain.

    • Billet crankshaft sprocket with nine keyways for +/- 8 degrees of adjustability
    • Both billet steel sprockets are heat treated for durability
    • True roller "Z" chain with a 0.250" roller diameter for reduced friction
    • "Z" chain has a press-fit center link design that increases load distribution, with heat treated links pre-stressed to increase fatigue life
    • Captured needle camshaft sprocket thrust bearing to minimize block thrust surface friction
    • 3-piece set hand-matched to qualify the correct center distance and minimize runout

    Quick facts

    • Part: Cloyes 9-3672TX9Z timing set
    • Also called: engine timing set
    • Fits: 2006-2007 Cadillac CTS V8 6.0L and other vehicles
    • Material: Billet steel sprockets
    • Condition: New

    A rattle from the front of the engine, rough running or a check engine light can mean the timing set is worn, though a weak chain tensioner or a faulty camshaft position sensor can be behind them too, so find the actual cause first. This listing is one set, and each engine takes one.

    Fits

    It fits the 2006-2007 Cadillac CTS V8 6.0L and the 2006 Chevrolet Corvette V8 6.0L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1 set
    • Pieces in the set: 3
    • Crankshaft sprocket keyways: 9
    • Crankshaft sprocket adjustability: +/- 8 degrees
    • Chain roller diameter: 0.250"

    Build and materials

    • Chain: single roller, true roller "Z" chain
    • Sprockets: billet steel, heat treated
    • Camshaft sprocket thrust bearing: captured needle
    • Condition: New

    In the box

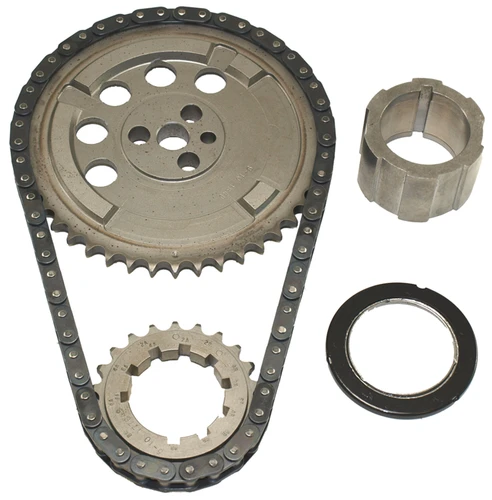

    A 3-piece set with a crankshaft sprocket, a camshaft sprocket and a "Z" chain, plus a captured needle camshaft sprocket thrust bearing.

    Frequently Asked Questions

    Does the Cloyes 9-3672TX9Z fit a 2006 Chevrolet Corvette V8 6.0L?

    Yes, Cloyes 9-3672TX9Z fits the 2006 Chevrolet Corvette V8 6.0L, and this listing is one set.

    Is this Cloyes timing set a single or double roller design?

    It is a single roller set. The chain is a true roller "Z" chain with a 0.250" roller diameter.

    What parts are in this engine timing set?

    Cloyes 9-3672TX9Z is a 3-piece set with a billet crankshaft sprocket, a camshaft sprocket and a "Z" chain, plus a captured needle camshaft sprocket thrust bearing.

    How far can the crankshaft sprocket be adjusted?

    This billet crankshaft sprocket has nine keyways for +/- 8 degrees of adjustability.

    Why does this timing set include a captured needle thrust bearing?

    The captured needle camshaft sprocket thrust bearing is there to minimize friction on the block thrust surface.
