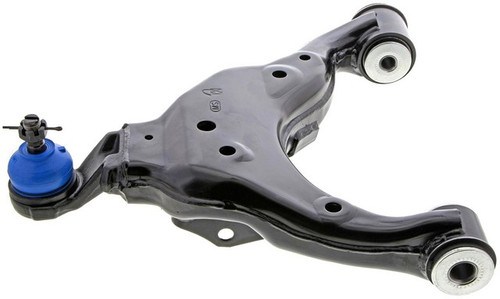

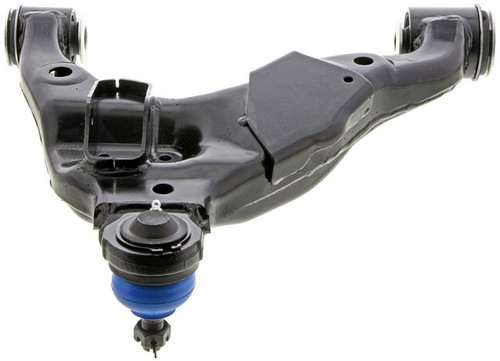

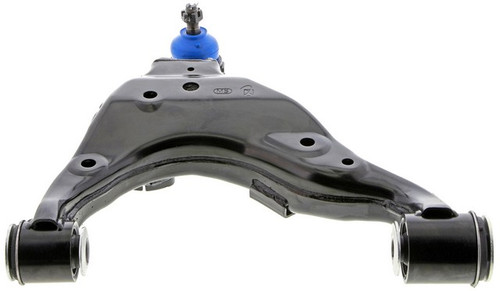

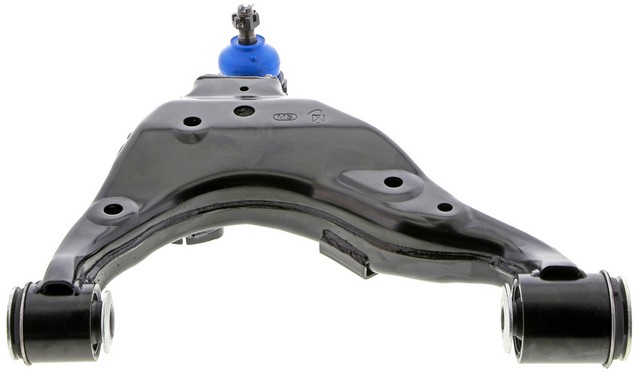

Mevotech Supreme CMS861038 front left lower control arm with ball joint for the 2005-2015 Toyota Tacoma links the wheel to the chassis and lets it pivot. It is sold as a control arm and ball joint assembly with a threaded ball joint stud.
- Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability
- Labor Saver designs and hardware for faster, easier installation
- Knurling locks the control arm bushing to the sub-frame
- Stamped steel construction
- Protective surface treatment to resist rust build-up
- In-house and third-party durability testing for performance and strength
Quick facts
- Part: Mevotech Supreme CMS861038 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2015 Toyota Tacoma
- Position: Front left lower
- Material: Steel
- Condition: New
A worn lower arm or ball joint can show up as a clunk over bumps, loose steering or uneven wear on the front left tire. Worn shocks, tie rod ends, sway bar links or a wheel bearing can be behind these signs too, so find the cause before buying. If this arm is the cause, this assembly replaces it.
Fits
It is a lower control arm for the 2005-2015 Toyota Tacoma, sold as a direct-fit replacement, and its stamped steel construction matches or beats OE specifications. The 2005-2015 Toyota Tacoma takes one on the front left; the front right is its own part, ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: front left lower
- Quantity: 1 for the front left
- Maximum width: 17.6 in
- Maximum length: 17.25 in
- Ball joint stud type: threaded
Build and materials
- Construction: stamped steel
- Control arm material: steel
- Bushing material: rubber
- Bearing material: sintered metal
- Dust boot material: neoprene
- Greaseable: yes, pre-greased
- Condition: new
- Country of origin: China
In the box
One control arm with the ball joint, bushings, dust boot, grease fitting, castle nut and cotter pin.
Installation notes
- Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
- The ball joint comes pre-greased.
Interchange: 102-6431 · 810-84779B · 622.44064 · 622.44940 · 522-719
19356893 · TC5789 · CB74063 · CB74063PR · CA14635 · GCA14635 · CK623262 · RK621294 · RK623262 · 2606703 · 30031323 · 9CB86338X · 5072112 · X50CJ0517 · JTC2523 · 4806904040 · 4806904050 · TK621294
This part cross-references / interchanges with the following part numbers:
19356893, 102-6431, 810-84779B, 622.44064, 622.44940, TC5789, 522-719, CB74063, CB74063PR, CA14635, GCA14635, CK623262, RK621294, RK623262, CMS861038, 2606703, 30031323, 9CB86338X, 5072112, X50CJ0517, JTC2523, 4806904040, 4806904050, TK621294
Frequently Asked Questions
Is this one of the A-arms for the 2005-2015 Toyota Tacoma?
Yes. Mevotech Supreme CMS861038 is the front left lower control arm for the 2005-2015 Toyota Tacoma; the front right side uses a separate arm.
Does the Mevotech Supreme suspension control arm come with a castle nut and cotter pin?
Yes. Mevotech Supreme CMS861038 includes the ball joint, bushings, dust boot, grease fitting, castle nut and cotter pin.
What are the bushing and boot materials on this front left lower control arm?
The bushings are rubber, the bearing is sintered metal and the dust boot is neoprene. The arm itself is steel.
Is the ball joint on this control arm greaseable?
Yes. This ball joint has a grease fitting and comes pre-greased.
Does number CK623262 cross to Mevotech Supreme CMS861038?
Yes. CK623262 is listed as an interchange number for Mevotech Supreme CMS861038, along with 102-6431 and 522-719.
