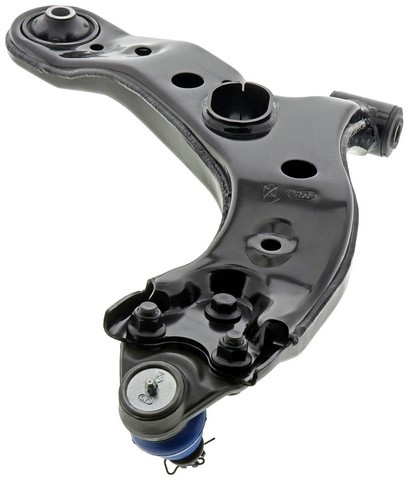

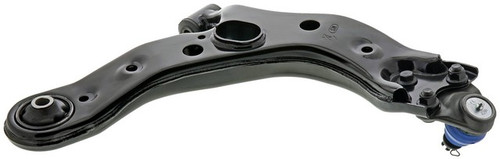

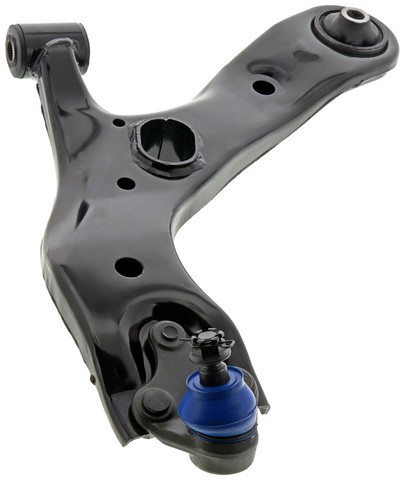

Mevotech Supreme CMS86197 front left lower control arm with ball joint for the 2013-2018 Toyota RAV4 and other vehicles connects the steering knuckle to the vehicle body. This Mevotech Supreme suspension control arm is a control arm and ball joint assembly, with the ball joint already assembled to the arm.
- Mevotech Supreme line, engineered in-house with application-specific upgrades
- Stamped steel construction with a protective surface treatment against rust
- Sintered bearings for longer-lasting performance
- 180 degree SAE grease fitting for easy servicing
- Labor Saver design, tools and hardware that make installation faster
Quick facts
- Part: Mevotech Supreme CMS86197 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2013-2018 Toyota RAV4 and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose-feeling steering can mean a worn control arm or ball joint. Sway bar links, struts, tie rod ends and wheel bearings can be behind those signs too, so find the cause before buying. Left and right arms are normally replaced together; this listing is one arm for the front left, and the front right is ordered separately.
Fits
It is listed for a wide range of Toyota and Lexus models, led by the 2013-2018 Toyota RAV4, the 2018-2021 Lexus NX300 and the 2015-2021 Lexus NX300h. If your car is not one of these, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1 for this position
- Maximum width: 14.45 in
- Maximum length: 11.6 in
- Ball joint mounting: bolt in
- Ball joint stud: threaded
Build and materials
- Control arm material: steel
- Bushing material: rubber
- Bearing material: sintered metal
- Dust boot material: neoprene
- Greaseable: yes
- Condition: new
- Country of origin: China
In the box
One control arm with ball joint, rubber bushings, dust boot, grease fitting, slotted castle nut and cotter pin.
Installation notes
- Secure the ball joint to the vehicle with the part-specific slotted castle nut and the snap cotter pin provided.
- The arm comes pre-greased, and the grease fitting is included for later servicing.
Interchange: 810-528444B
88879246 · TC3428 · CA75133 · 4806942060 · RK620586 · 2608126 · 30031047 · X50CA4159 · X50CJ4158 · 480690R030 · 4806942051
This part cross-references / interchanges with the following part numbers:
88879246, 810-528444B, TC3428, CA75133, 4806942060, RK620586, CMS86197, 2608126, 30031047, X50CA4159, X50CJ4158, 480690R030, 4806942051
Frequently Asked Questions
Will this RAV4 control arm fit a 2013-2018 Toyota RAV4?
Yes. Mevotech Supreme CMS86197 is the front left lower control arm with ball joint for the 2013-2018 Toyota RAV4. If your car is a different one, find it in the "Vehicles it fits" section.
Is this RAV4 lower control arm for the left or right side of a 2013-2018 Toyota RAV4?
This lower control arm is for the front left side. The front right is a separate part and is ordered on its own.
Is the Mevotech Supreme control arm greaseable?
Yes. This arm is pre-greased and includes a 180 degree SAE grease fitting; its bearing material is sintered metal.
Does the CMS86197 arm come with the ball joint, castle nut and cotter pin?
Yes. The ball joint is pre-assembled, and the rubber bushings, neoprene dust boot, grease fitting, slotted castle nut and snap cotter pin are included with Mevotech Supreme CMS86197.
Does Mevotech Supreme CMS86197 replace the number 4806942060?
Yes. 4806942060 is one of the numbers this arm replaces. Every number it replaces is printed on the Interchange line at the bottom of the page.
