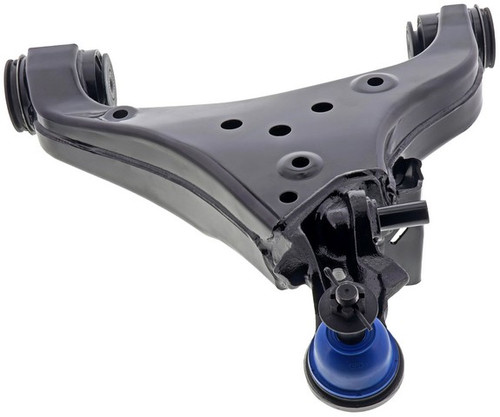

Mevotech Supreme CMS861334 front left lower control arm with ball joint for the 2022-2026 Toyota Tundra and other vehicles links the wheel to the chassis. It is built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks.
- Engineered in-house with application-specific upgrades for increased durability and performance
- Sintered metal bearing for toughness
- Greaseable ball joint with a 90 degree SAE grease fitting
- Thicker, stronger ball joint flange to prevent deformation during installation
- Stamped steel construction
- Protective surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech Supreme CMS861334 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2022-2026 Toyota Tundra and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
This control arm and ball joint assembly replaces the arm together with its ball joint. A clunk over bumps, loose steering or uneven tire wear can mean the arm is worn. Worn bushings, shocks, tie rods or a wheel bearing can be behind the same signs too, so find the cause before buying.
Fits
This listing is one control arm for the 2022-2026 Toyota Tundra and the 2023-2025 Toyota Sequoia; each takes one at the front left lower position. The front right is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1
- Control arm maximum width: 19.8 in
- Control arm maximum length: 20.25 in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Steel
- Bushing material: Rubber
- Bearing material: Sintered metal
- Dust boot material: Neoprene
- Pre-greased: Yes
- Condition: New
- Country of origin: China
In the box

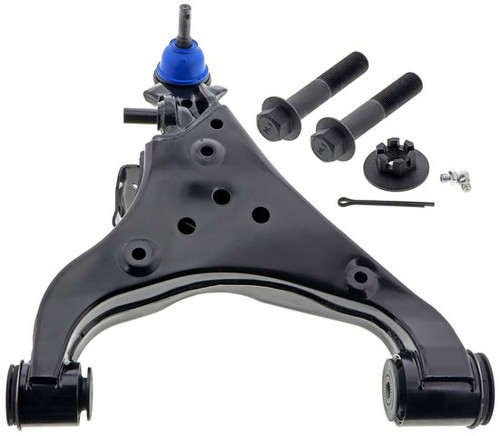

One control arm with ball joint, bushings, dust boot, grease fitting, castle nut, cotter pin and mounting hardware.
Installation notes
- Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
- Labor Saver™ design, tools and hardware are made to speed up installation.
Interchange: 2609696 · 480690C011
This part cross-references / interchanges with the following part numbers:
CMS861334, 2609696, 480690C011
Frequently Asked Questions
Is this a lower control arm for the 2022-2026 Toyota Tundra?
Yes. Mevotech Supreme CMS861334 is a front left lower control arm with ball joint for the 2022-2026 Toyota Tundra. The front right side is a separate part.
Will this arm fit the 2023-2025 Toyota Sequoia?
Yes, it fits the 2023-2025 Toyota Sequoia at the front left lower position, and that side takes one.
Is the Mevotech Supreme control arm greaseable?
Yes. The Mevotech Supreme CMS861334 has a greaseable ball joint and includes a 90 degree SAE grease fitting for servicing it.
What is the Mevotech Supreme suspension control arm made of?
The arm is steel with stamped steel construction and a protective surface treatment. The bushings are rubber, the bearing is sintered metal and the dust boot is neoprene.
Does this control arm come with the castle nut and cotter pin?
Yes. A part-specific castle nut and cotter pin are included, along with the bushings, dust boot, grease fitting and mounting hardware.
