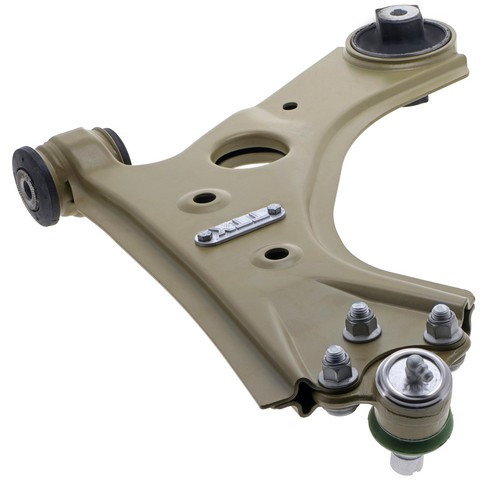

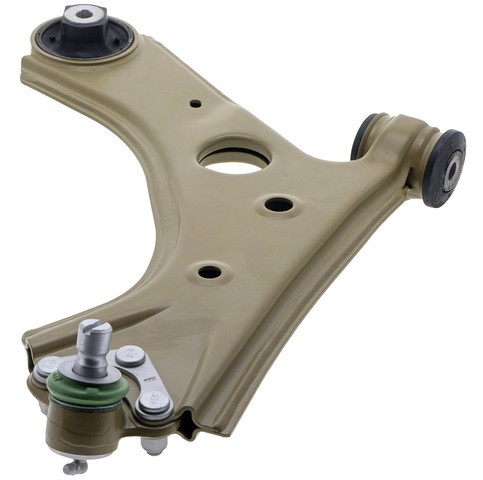

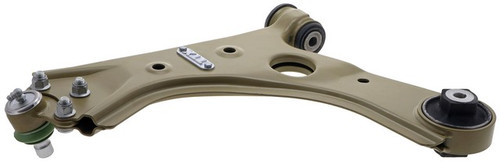

Mevotech TTX CTXMS251214 front right lower control arm with ball joint for the 2015-2022 Ram ProMaster City holds the front right wheel in position while letting it move with the suspension. This Mevotech TTX control arm is an assembly with a ball joint, rubber bushings and a dust boot.
- Mevotech TTX line, built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
- Patented sintered bearings for longer-lasting performance
- Bushings with a double bonded, solid cross section for added stiffness and durability
- 90 degree SAE grease fitting for servicing the ball joint
- Application-specific ball stud system with a larger sphere
- Repel-TEK surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech TTX CTXMS251214 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2015-2022 Ram ProMaster City
- Position: Front right lower
- Material: Steel
- Condition: New
A worn lower control arm can show up as a clunk over bumps, uneven tire wear or a loose steering feel. These signs alone do not prove the arm is at fault, since a worn tie rod end can cause similar looseness.
Fits
It fits the 2015-2022 Ram ProMaster City.
Specifications
Fit and size
- Position: Front right lower
- Quantity per application: 1
- Maximum length: 13.96 in
- Maximum width: 11.65 in
- Ball joint mounting type: Bolt in
- Ball joint stud type: Grooved
Build and materials
- Control arm material: Steel, stamped
- Bushing material: Rubber
- Bearing material: Sintered metal
- Dust boot material: Neoprene
- Greaseable: Yes
- Condition: New
- Country of origin: China
In the box

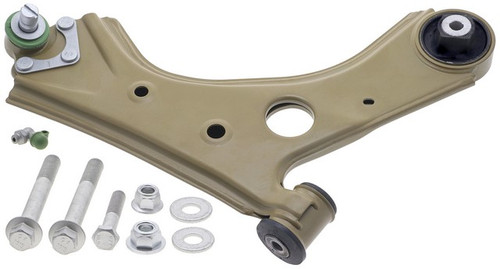

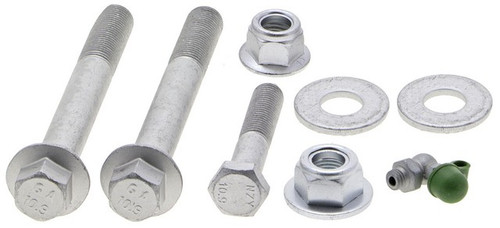

One control arm with ball joint, bushings, dust boot, a 90 degree SAE grease fitting, and an application-specific pinch bolt and locking nut. This listing is one arm for the front right; this side takes one, the front left is a separate part ordered separately, and both sides are normally replaced together.
Installation notes
- Arrives pre-greased.
- Labor Saver designs, tools and hardware are intended to make installation faster.
Interchange: 19531537 · 68263229AA
This part cross-references / interchanges with the following part numbers:
19531537, 68263229AA, CTXMS251214
Frequently Asked Questions
Does the Mevotech TTX CTXMS251214 fit the 2015-2022 Ram ProMaster City?
Yes. Mevotech TTX CTXMS251214 is a front right lower control arm with ball joint for the 2015-2022 Ram ProMaster City. The front left side is a separate part.
Is this Mevotech TTX suspension control arm and ball joint assembly greaseable?
Yes. Mevotech TTX CTXMS251214 comes pre-greased and includes a 90 degree SAE grease fitting for later servicing of the ball joint.
Does this Mevotech TTX lower control arm come with the pinch bolt and locking nut?
Yes. It includes an application-specific pinch bolt and locking nut, plus the bushings, dust boot and the 90 degree SAE grease fitting.
What are the bearing and bushing materials in this control arm?
The bearings are sintered metal and the bushings are rubber. The control arm itself is steel, and the dust boot is neoprene.
Is 68263229AA a number this control arm replaces?
Yes. Mevotech TTX CTXMS251214 is listed as an interchange for 68263229AA.
