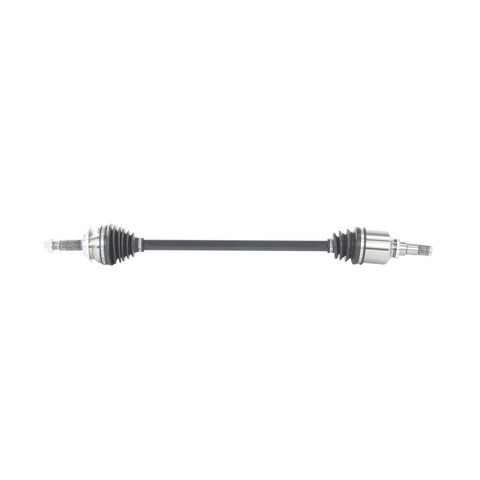

Front Right CV Axle Shaft for 2008-2014 Scion xD - TrakMotive TO-8288

$143.99

TrakMotive CV Axle Shaft TO-8288 - view 2

TrakMotive CV Axle Shaft TO-8288 - view 3

Part number: TO-8288

UPC: 844084082886

Condition: New

Weight: 18.00 LBS

Item Package Quantity: 1

$143.99

Current Stock: 13

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:TO-8288

$143.99

Description

TrakMotive TO-8288 front right CV axle shaft for the 2008-2014 Scion xD transfers drive torque to the front right wheel. This TrakMotive CV axle has a joint at each end that flexes with steering and suspension movement.

Male inboard joint with 20 splines and conventional outboard joint with 26 splines
Neoprene boots on both the inboard and outboard joints
Axle nut included, with an M22x1.5 thread, 30 mm hex and stake-type locking
Overall compressed length of 908 mm (35.75 in)

Quick facts

Part: TrakMotive TO-8288 CV axle shaft
Fits: 2008-2014 Scion xD
Position: Front right
Condition: New

A torn boot, a clicking noise on turns or vibration under acceleration can mean a CV axle shaft is worn. Before replacing it, look over the visible boot with the engine off, since clicking can also come from other worn parts; a shop can test the joints. Replacing the front pair together is usual practice; this listing is one shaft.

Fits

This is a direct-fit replacement for the 2008-2014 Scion xD, which takes one shaft on its front right side; the front left shaft is ordered separately.

Specifications

Fit and size

Position: front right
Quantity per application: 1
Overall compressed length: 908 mm (35.75 in)
Splines: 20 inboard, 26 outboard
Axle nut thread size: M22x1.5
Axle nut hex size: 30 mm (1.17 in)

Build and materials

Inboard joint: male
Outboard joint: conventional
Joint boots: neoprene, inboard and outboard
Axle nut: included, stake locking
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: 66-5284 · 60-5284 · TO-8-8855
329288 · NCV69541 · 90326 · 40751123 · 4341052250 · SC10508

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

329288, 66-5284, 60-5284, NCV69541, 90326, 40751123, TO-8-8855, 4341052250, SC10508, TO-8288

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive TO-8288 fit the front right side of a 2008-2014 Scion xD?

Yes. TrakMotive TO-8288 is a front right CV axle shaft that fits the 2008-2014 Scion xD. The front left side is a separate part.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive TO-8288 includes its axle nut, which has an M22x1.5 thread, a 30 mm hex and stake-type locking. The ABS tone ring is not included.

How many splines does this CV axle shaft have?

The male inboard joint has 20 splines, and the conventional outboard joint has 26 splines.

How do I tell if the neoprene boots on this axle shaft need attention?

Tears, cracks or grease thrown around a joint can mean a boot has failed, and a clicking noise on turns can mean the joint is worn. A shop can test the joints.

Is TrakMotive TO-8288 the same as NCV69541?

Yes. NCV69541 is one of the numbers this TrakMotive TO-8288 front right CV axle shaft replaces; the rest are on the Interchange line.
