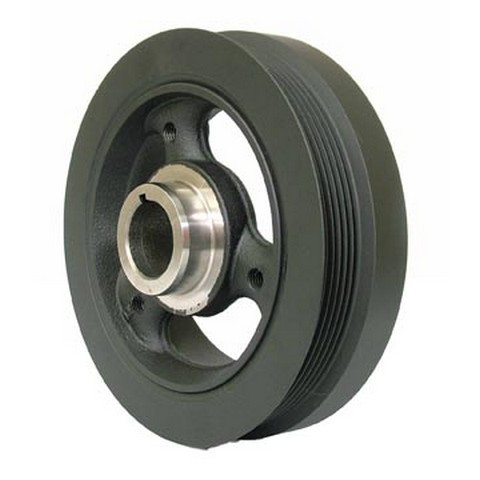

Dayco PB1116N harmonic balancer for the 2004-2010 Ford F-150 V8 5.4L and other vehicles damps crankshaft vibration. This Dayco harmonic balancer sits on the front of the crankshaft, and its built-in pulley carries the serpentine belt.
- Outer ring made of cast iron
- Integrated serpentine pulley with a 6.615 in (168.000 mm) outside diameter
- Timing marks on the balancer
- Neutral balance with no counterweight
Quick facts
- Part: Dayco PB1116N harmonic balancer
- Also called: engine harmonic balancer
- Fits: 2004-2010 Ford F-150 V8 5.4L and other vehicles
- Material: Cast iron (outer ring)
- Condition: New
Belt noise or vibration at the front of the engine can come from a worn balancer, but the belt, a tensioner or an idler pulley can produce them too. With the engine off and cool, look at the belt and at the balancer's outer ring for cracks before you order.
Fits
The 2004-2010 Ford F-150 V8 5.4L, the 2005-2014 Ford Expedition and the 2007-2016 Ford E-350 Super Duty V8 5.4L are among the vehicles this balancer fits. Each engine takes one, at the front of the crankshaft. If your vehicle is not named here, look up your own year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Overall outside diameter: 7.048 in (179.00 mm)
- Overall width: 2.323 in (59.00 mm)
- Crank bore: 1.249 in (31.71 mm)
- Nose outside diameter: 1.876 in (47.65 mm)
- Ring width: 1.830 in (46.48 mm)
- Pulley outside diameter: 6.615 in (168.000 mm)
- Bolt holes: 3
- Quantity per vehicle: 1
Build and materials
- Outer ring material: cast iron
- Integrated pulleys: 1, serpentine
- Counterweight balance: neutral, no counterweight
- Timing marks: yes
- Condition: new
In the box
One harmonic balancer. Hardware, a Woodruff key, installation instructions and a crank trigger/exciter plate are not included, so plan on new bolts rather than reusing the old ones.
Interchange: 594-205 · 594-347 · DA-3301
102186 · 6002674
This part cross-references / interchanges with the following part numbers:
102186, 594-205, 594-347, 6002674, DA-3301
Frequently Asked Questions
Is this Ford F-150 harmonic balancer correct for a 2004-2010 Ford F-150 V8 5.4L?
Yes. Dayco PB1116N fits the 2004-2010 Ford F-150 V8 5.4L, and each engine takes one balancer.
Will Dayco PB1116N fit a 2005-2014 Ford Expedition?
Yes. Dayco PB1116N fits the 2005-2014 Ford Expedition. For other Ford or Lincoln models, look up the year and engine in the "Vehicles it fits" section.
Does this harmonic balancer come with bolts or a Woodruff key?
No. Hardware, a Woodruff key, installation instructions and a crank trigger/exciter plate are not included. Plan on new bolts rather than reusing the old ones.
What size is the pulley on this engine harmonic balancer?
The built-in serpentine pulley measures 6.615 in (168.000 mm) across. The balancer itself is 7.048 in (179.00 mm) in outside diameter with a 1.249 in (31.71 mm) crank bore.
Does Dayco PB1116N cross-reference to 594-205?
Yes. 594-205 is listed as an interchange number for Dayco PB1116N, along with 594-347, DA-3301, 102186 and 6002674.
