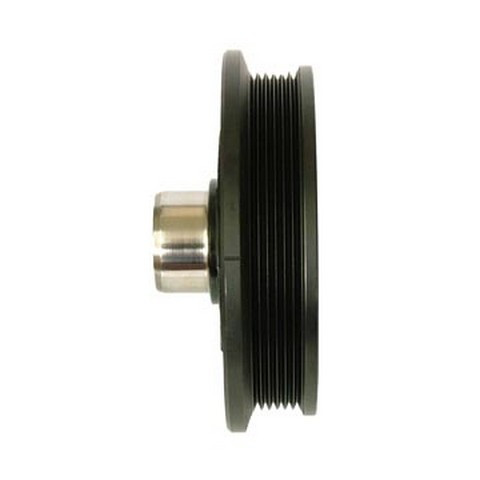

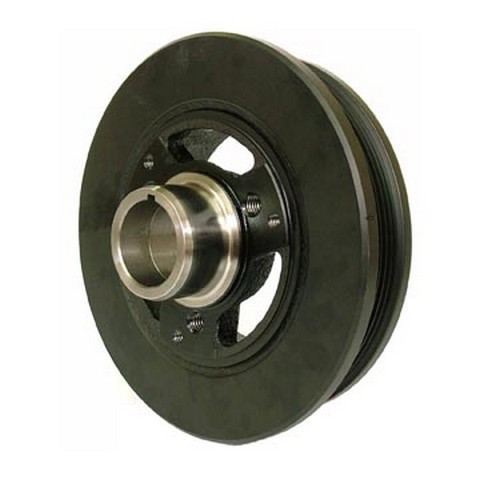

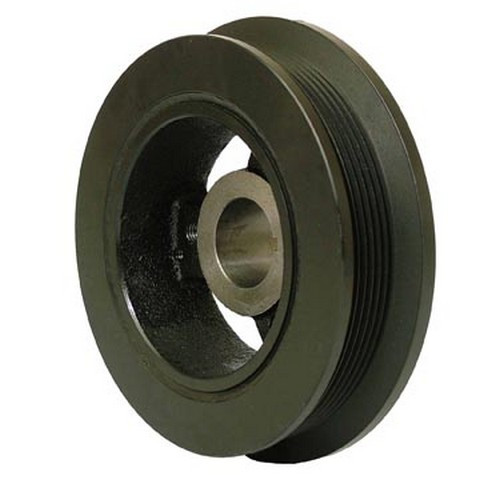

Dayco PB1496N harmonic balancer for the 1996 Ford F-150 6-cylinder 4.9L and other vehicles damps crankshaft vibration and carries the engine's serpentine belt.
- Grey iron outer ring
- One integrated serpentine pulley
- Timing marks on the balancer
- Neutral balance with no counterweight
- Three bolt holes
Quick facts
- Part: Dayco PB1496N harmonic balancer
- Also called: engine harmonic balancer
- Fits: 1996 Ford F-150 6-cylinder 4.9L and other vehicles
- Material: Grey iron (outer ring)
- Condition: New
Also called an engine harmonic balancer, this part can show wear as a visible wobble, a cracked or damaged ring, or a belt that will not stay in line. Before you replace the balancer, rule out the serpentine belt, the tensioner and the accessory pulleys as the source of the noise or vibration, since a worn belt or a failing accessory can sound similar.
Fits
It fits the 1996 Ford F-150 6-cylinder 4.9L, the 1996 Ford F-250 6-cylinder 4.9L and the 1996 Ford F-350 6-cylinder 4.9L. Each engine takes one balancer.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall outside diameter: 6.890 in (175.00 mm)
- Pulley outside diameter: 6.103 in (155.000 mm)
- Nose outside diameter: 1.876 in (47.65 mm)
- Crank bore: 1.374 in (34.88 mm)
- Overall width: 2.845 in (72.25 mm)
- Ring width: 1.582 in (40.18 mm)
- Bolt holes: 3
Build and materials
- Outer ring material: grey iron
- Integrated pulleys: 1, serpentine
- Counterweight balance: neutral, no counterweight
- Timing marks: yes
- Crank trigger/exciter plate: none
- Condition: new
In the box
One harmonic balancer. Hardware, a woodruff key and installation instructions are not included, so plan on new bolts rather than reusing the old ones.
Interchange: 594-391 · DA-3000
102103
This part cross-references / interchanges with the following part numbers:
102103, 594-391, NA, DA-3000
Frequently Asked Questions
Is this Ford F-150 harmonic balancer made for the 1996 Ford F-150 6-cylinder 4.9L?
Yes. Dayco PB1496N fits the 1996 Ford F-150 6-cylinder 4.9L, and each engine takes one.
Does this Dayco harmonic balancer come with bolts?
No. This Dayco PB1496N balancer comes without hardware, a woodruff key or installation instructions, so plan on new bolts.
What size is the crank bore on this balancer?
The crank bore is 1.374 in (34.88 mm). The overall outside diameter is 6.890 in (175.00 mm).
How can I check a harmonic balancer for wear?
With the engine off and cool, look for cracks or damage on the ring and for worn or hard-to-read timing marks. A wobble or a belt that drifts out of line can mean a shop should look at it.
Does the PB1496N have timing marks and a serpentine pulley?
Yes. Dayco PB1496N has timing marks and one integrated serpentine pulley. The pulley is 6.103 in (155.000 mm) across.
