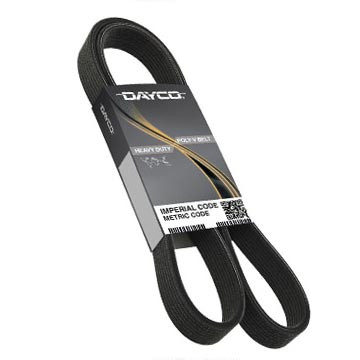

Dayco 5081300 serpentine belt for the 2013-2018 Ram 2500 6-cylinder 6.7L and other vehicles drives the engine's belt-driven accessories. This Dayco serpentine belt sits on the main drive, which uses a single belt.
- EPDM belt body with aramid reinforcement
- K-section profile with a straight rib and standard rib depth
- Operating temperature range from -45 °F to 212 °F (-42.7 °C to 100 °C)
- Standards: SAE J1459 and SAE J2432
Quick facts
- Part: Dayco 5081300 serpentine belt
- Fits: 2013-2018 Ram 2500 6-cylinder 6.7L and other vehicles
- Position: Main drive
- Material: EPDM, aramid reinforced
- Condition: New
Cracks, fraying or glazing on the ribs, or a squeal from the belt drive, can mean the belt is worn. A weak tensioner, a worn idler pulley or a seized accessory pulley can be behind a noisy or damaged belt too, so find out which part is at fault before you buy.
Fits
This belt is made for the 2013-2018 Ram 2500 6-cylinder 6.7L, the 2013-2019 Ram 3500 6-cylinder 6.7L and the 2013-2018 Ram 4500, along with other vehicles. If yours is not one of these, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Main drive
- Quantity per vehicle: 1
- Cross section: K-section
- Rib profile: Straight rib
- Rib depth: Standard
Build and materials
- Material: EPDM, aramid reinforced
- Operating temperature: -45 °F to 212 °F (-42.7 °C to 100 °C)
- Standards: SAE J1459, SAE J2432
- Condition: New
Interchange: JK8-1304 · 25-081298 · 25-081298HD
8K1298 · K081298HD · K081298 · 4081298 · 5081295 · JK81304A
This part cross-references / interchanges with the following part numbers:
8K1298, K081298HD, K081298, 4081298, 5081295, JK81304, JK8-1304, JK81304A, 25-081298, 25-081298HD, 04627589AA, 4267589AA, 3947109, 3C2E-8620-AB, 3C2E-8620-AC, 3C2Z-8620-AA, 3C2Z-8620-AB, 6C2E-8620-DA, 4627589AA
Frequently Asked Questions
Is this the 2013-2018 Ram 2500 serpentine belt for the 6-cylinder 6.7L?
Yes. Dayco 5081300 fits the 2013-2018 Ram 2500 6-cylinder 6.7L. The "Vehicles it fits" section covers the other vehicles it fits.
What temperature range is this Dayco drive belt rated for?
This belt operates from -45 °F to 212 °F (-42.7 °C to 100 °C).
What is the Dayco 5081300 belt made of?
The Dayco 5081300 belt body is EPDM with aramid reinforcement. It has a K-section cross section with a straight rib and standard rib depth.
Which SAE standards apply to this serpentine belt?
This serpentine belt lists SAE J1459 and SAE J2432 as its standards.
Does Dayco 5081300 replace the K081298 belt?
Yes. K081298 is one of the numbers Dayco 5081300 replaces. The other cross-reference numbers are on the Interchange line.
