CVT Belt for 2015 Arctic Cat Bearcat 5000 XT GS & More - Dayco XTX5038

$190.99
Dayco XTX Automatic Continuously Variable Transmission (CVT) Belt XTX5038
Dayco XTX Automatic Continuously Variable Transmission (CVT) Belt XTX5038

Vehicles this part fits
    Part number: XTX5038
    UPC: 036687660909
    Condition: New
    Weight: 1.70 LBS
    Item Package Quantity: 1
    $190.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Dayco XTX Automatic Continuously Variable Transmission (CVT) Belt P/N:XTX5038
    Dayco XTX Automatic Continuously Variable Transmission (CVT) Belt P/N:XTX5038
    $190.99
    $190.99

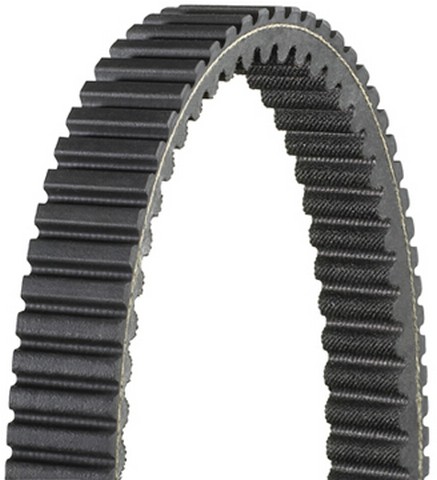

    Dayco XTX5038 CVT belt for the 2015 Arctic Cat Bearcat 5000 XT GS and other vehicles carries engine power between the drive and driven pulleys of the transmission. It is sold as a single belt.

    • Rubber top material
    • Deep top cogs and round bottom cogs
    • 26-degree angle with a 1.448 in (36.780 mm) top width
    • Operating range from -40 °F to 235 °F (-40 °C to 112.7 °C)

    Quick facts

    • Part: Dayco XTX5038 CVT belt
    • Also called: cvt transmission belt
    • Fits: 2015 Arctic Cat Bearcat 5000 XT GS and other vehicles
    • Position: Drive belt
    • Material: Rubber top
    • Condition: New

    Slipping under load, weak acceleration, or cracks, glazing and missing cogs on the belt can mean it is worn. Trouble in the drive clutch or driven clutch can look much the same, so find the cause before replacing the belt.

    Fits

    This CVT belt is a direct-fit replacement for the 2009-2014 Arctic Cat TZ1 Turbo LXR and the 2012-2014 Arctic Cat Bearcat Z1 XT GS, and each of those takes one. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: drive belt
    • Quantity per vehicle: 1
    • Outside circumference: 43.547 in (1106.094 mm)
    • Top width: 1.448 in (36.780 mm)
    • Thickness: 0.655 in
    • Angle: 26 degrees

    Build and materials

    • Top material: rubber
    • Top cog type: deep
    • Bottom cog type: round
    • EBS (Engine Braking System) belt: no
    • Operating temperature: -40 °F to 235 °F (-40 °C to 112.7 °C)
    • Condition: new

    Interchange: XS818 · XS820 · 43R4210

    This part cross-references / interchanges with the following part numbers:

    XS818, XS820, NA, 43R4210, 0627-066, 0627-073, 0627-076

    Frequently Asked Questions

    Does the Dayco XTX5038 CVT belt fit the 2012-2014 Arctic Cat Bearcat Z1 XT GS?

    Yes. Dayco XTX5038 fits the 2012-2014 Arctic Cat Bearcat Z1 XT GS, and that snowmobile takes one belt.

    What size is the Dayco XTX5038 belt?

    Outside circumference is 43.547 in (1106.094 mm), top width is 1.448 in (36.780 mm), thickness is 0.655 in and the angle is 26 degrees.

    What temperatures can this CVT belt run in?

    This belt's operating range runs from -40 °F to 235 °F (-40 °C to 112.7 °C).

    Is the XTX5038 an EBS (Engine Braking System) belt?

    No. Dayco XTX5038 is not an EBS belt. It has a rubber top with deep top cogs and round bottom cogs.

    Is this Dayco belt the same thing as a cvt transmission belt?

    Yes. Dayco XTX5038 is a CVT belt, also called a cvt transmission belt, and it goes in the drive belt position.
