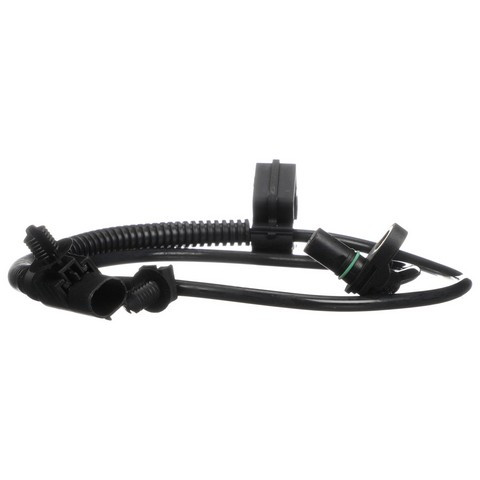

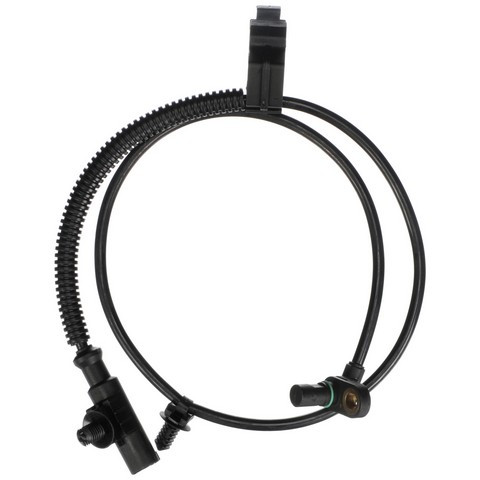

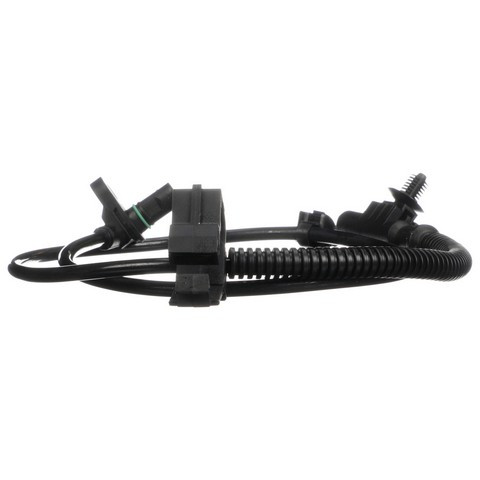

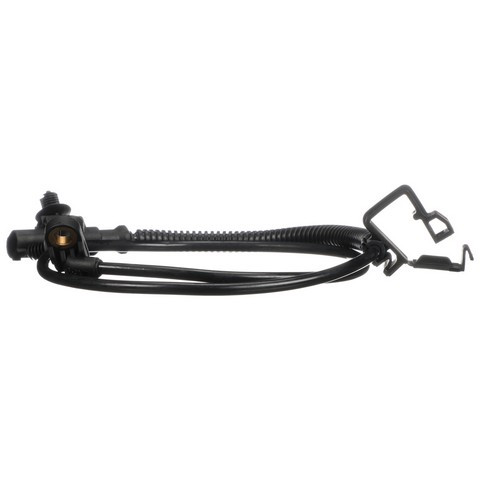

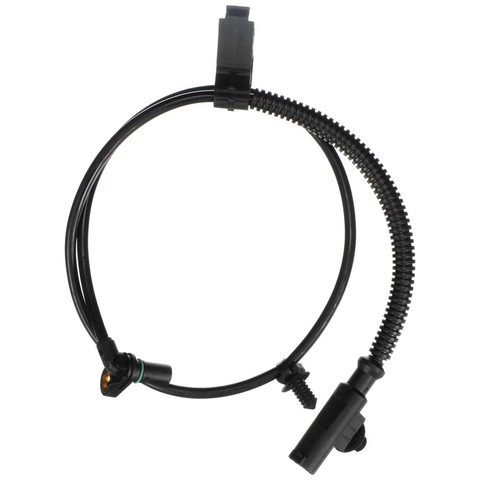

Front ABS Wheel Speed Sensor for 2004-2010 Dodge Dakota & More - Delphi SS11586

Delphi SS11586 front ABS wheel speed sensor for the 2004-2010 Dodge Dakota and other vehicles senses wheel speed and sends it to the ABS module. It is tested and calibrated to OE standards.

• Plated connectors help prevent corrosion and failure commonly caused by internal and cable short circuits
• Sensor design helps prevent mechanical damage to the sensor wheel, soiling and increased wheel bearing free play
• Sensor performance holds up through drastic temperature changes
• Digital output designed for maximum signal to noise ratio

Quick facts

• Part: Delphi SS11586 ABS wheel speed sensor
• Fits: 2004-2010 Dodge Dakota and other vehicles
• Position: Front

A lit ABS or traction control warning light can mean a wheel speed sensor has failed, but wiring, a damaged sensor wheel or wheel bearing play can set it off too. When the wheel is off for brake or tire service, look over the sensor wiring and connector for damage and the sensor tip for debris; otherwise a shop can read the ABS codes.

Fits

It fits the 2004 Dodge Dakota V6-3.7L, the 2005-2010 Dodge Dakota, the 2011 Ram Dakota and the 2006-2008 Mitsubishi Raider.

Specifications

In the box

One ABS wheel speed sensor and one instruction sheet. This listing is a single sensor, and the 2004-2010 Dodge Dakota takes two.

Interchange: 5142 770AA
ABS369 · 530959 · ALS259
