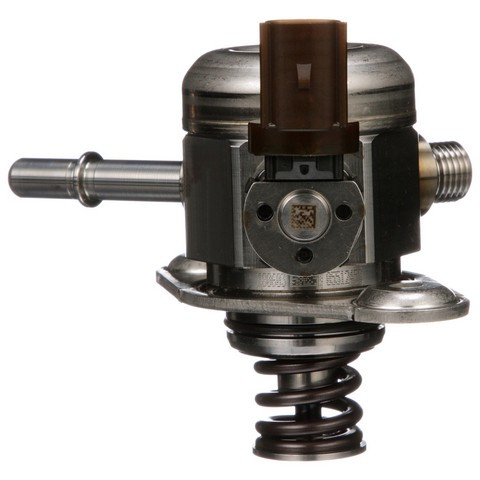

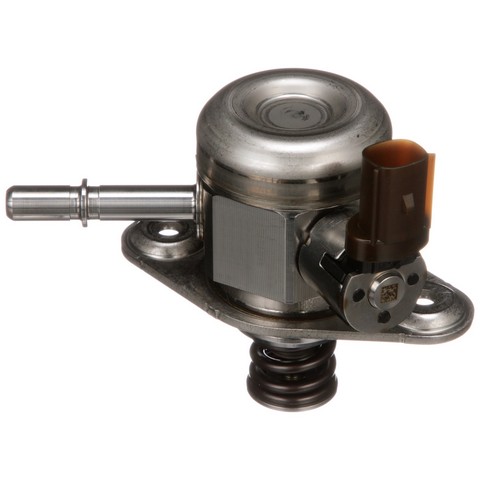

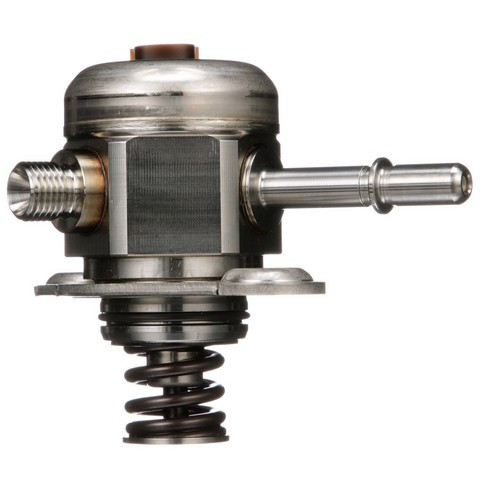

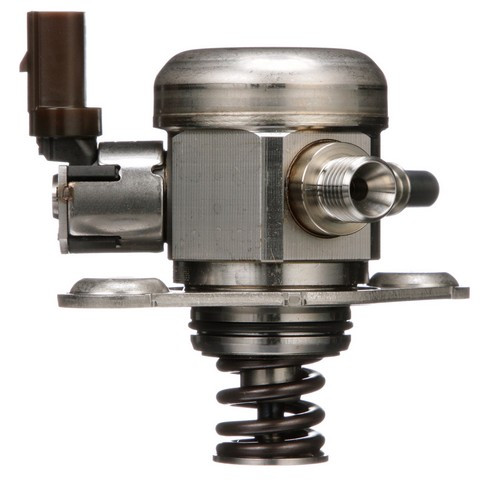

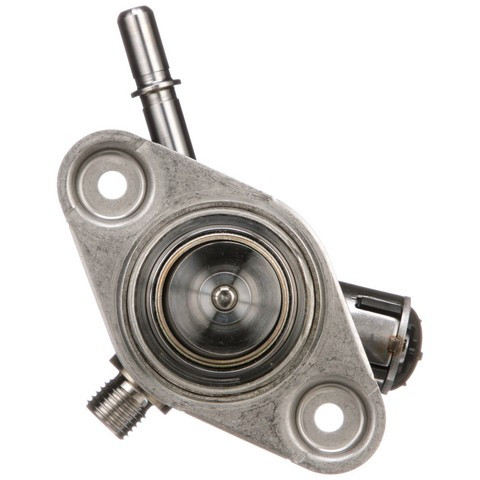

Delphi HM10122 direct injection high pressure fuel pump for the 2017-2020 Ford F-150 V6 3.5L and other vehicles supplies fuel to a gasoline direct injection engine at high pressure. It builds pressure in the fuel rail so the injectors can deliver fuel straight into the cylinders.
- Delivers fuel at pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10122 direct injection high pressure fuel pump
- Fits: 2017-2020 Ford F-150 V6 3.5L and other vehicles
- Condition: New
A weak or worn pump can show up as long cranking, hesitation under load or a check engine light. These signs alone do not prove the pump is at fault; a weak low-pressure fuel supply is another common source of hard starting. The engine takes one pump.
Fits
The 2017-2020 Ford F-150 V6 3.5L, the 2018-2021 Ford Expedition V6 3.5L and the 2018-2022 Lincoln Navigator V6 3.5L all take this pump, and so do other vehicles. If your car is not named here, look up your own year, model and engine in the "Vehicles it fits" section. The pump meets OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V6-3.5L
Build and materials
- Pressure range: 2,000 to 2,800 PSI
- Drive: mechanical
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump, one gasket and one instruction sheet.
Interchange: HL3Z 9350-A · HL3Z 9350-B
CHM10122 · GDP738
This part cross-references / interchanges with the following part numbers:
CHM10122, HL3Z 9350-A, HL3Z 9350-B, GDP738
Frequently Asked Questions
Will the Delphi HM10122 fit a 2018-2021 Ford Expedition V6 3.5L?
Yes. Delphi HM10122 fits the 2018-2021 Ford Expedition V6 3.5L and other vehicles, including the 2017-2020 Ford F-150 V6 3.5L.
What comes with the Delphi HM10122 fuel pump besides the pump itself?
The package includes a gasket and an instruction sheet along with the Delphi HM10122 pump.
What fuel pressure can this high pressure fuel pump deliver?
This pump can deliver fuel at pressures ranging from 2,000 to 2,800 PSI. It is mechanically driven and built for high fuel flow.
What symptoms can a failing direct injection high pressure fuel pump cause?
Long cranking, hesitation under load and a check engine light can be signs of a failing pump. A shop can test the fuel pressure.
Is part number HL3Z 9350-A interchangeable with this Delphi pump?
Yes. HL3Z 9350-A is one of the numbers this Delphi HM10122 pump replaces, along with HL3Z 9350-B, CHM10122 and GDP738.
