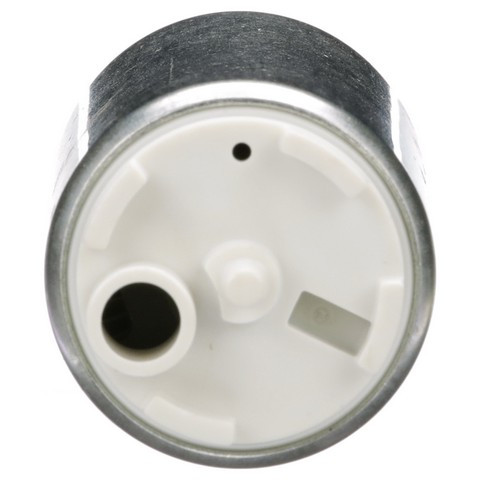

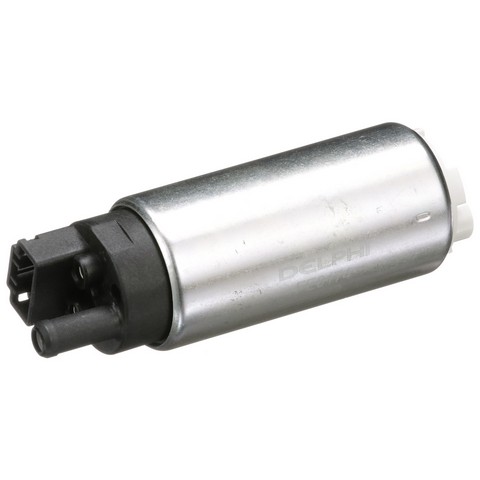

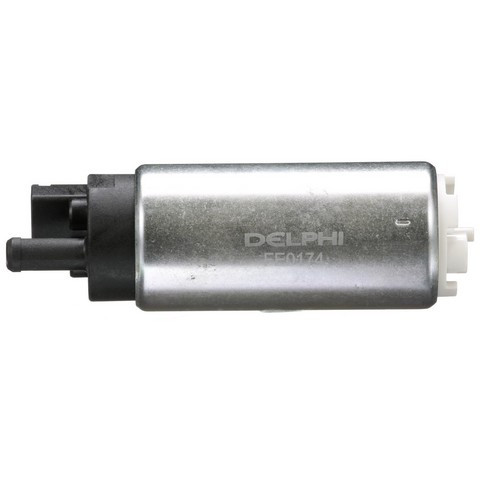

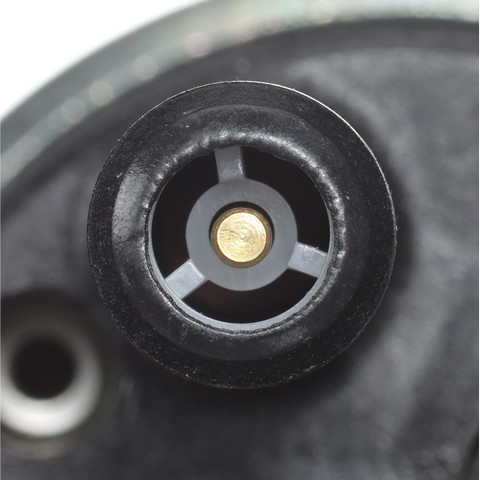

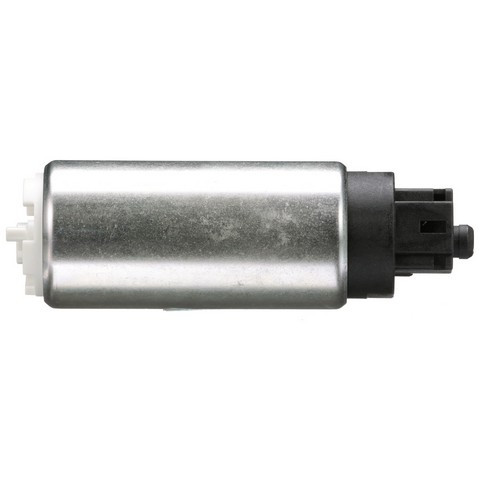

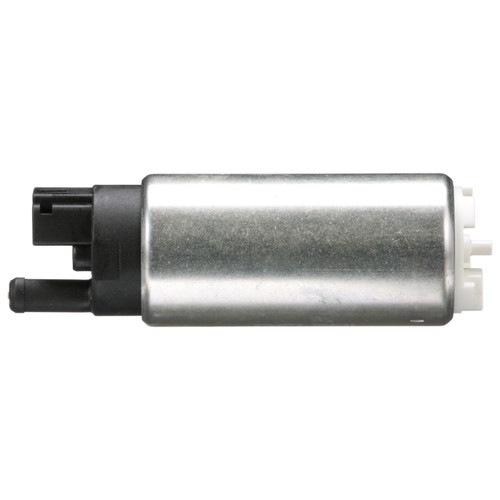

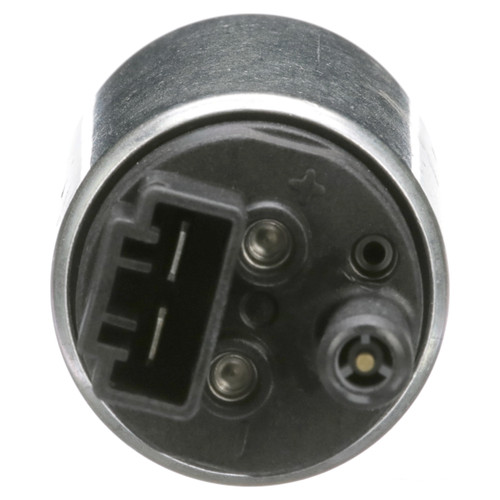

Delphi FE0174 electric fuel pump for the 2003-2004 Toyota Tundra V8 4.7L and other vehicles moves fuel from the tank to the engine. The pump mounts in-tank, and this listing is a single pump.
- Designed to operate under extreme temperatures with quick engine starts
- Lower amperage draw puts less load on the vehicle's electrical system
- Helps restore fast pressure performance and system integrity while using less energy
- Validated and tested, then matched to the right vehicle application
Quick facts
- Part: Delphi FE0174 electric fuel pump
- Fits: 2003-2004 Toyota Tundra V8 4.7L and other vehicles
- Position: In-tank
- Condition: New
Hard starting, stalling or a drop in power can mean a fuel pump is wearing out. Before replacing it, look at the fuel pump fuse with the engine off, since a blown fuse can also leave the engine without fuel. A shop can test fuel pressure.
Fits
It fits the 2003-2004 Toyota Tundra V8 4.7L and the 2003-2004 Toyota Sequoia V8 4.7L, and a single pump goes in each.
Specifications
- Position: In-tank
- Quantity per vehicle: 1
- Condition: New
In the box

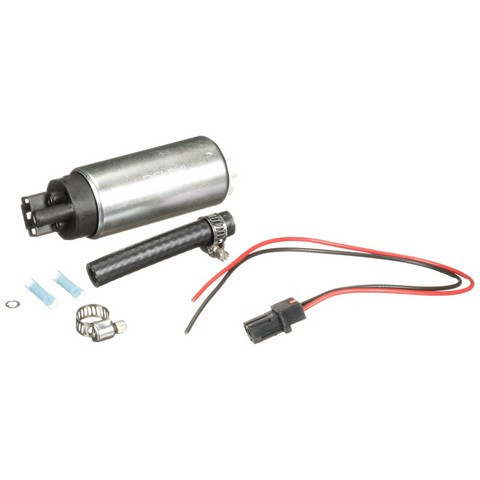

One electric fuel pump, two hose clamps, a hose piece, a pall nut, two splices, a 2-wire harness with connector and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the pump.
- Replace the fuel strainer whenever the fuel pump is repaired.
- An instruction sheet comes with the pump.
Frequently Asked Questions
Is this Delphi electric fuel pump the right one for a 2003-2004 Toyota Sequoia V8 4.7L?
Yes. Delphi FE0174 is listed for the 2003-2004 Toyota Sequoia V8 4.7L and the 2003-2004 Toyota Tundra V8 4.7L, and it is an in-tank pump.
Does the Delphi FE0174 come with a wire harness and clamps?
Yes. The box holds the pump, two hose clamps, a hose piece, a pall nut, two splices, a 2-wire harness with connector and an instruction sheet.
Does this fuel pump draw less amperage?
Yes. The pump is designed for a lower amperage draw, which puts less load on the vehicle's electrical system.
Can hard starting mean the in-tank fuel pump is weak?
It can, though other causes are possible. Fuel pressure is tested by opening into the fuel system, so that test is left to a shop.
Should the fuel strainer be replaced along with the Delphi FE0174?
Yes. The fuel strainer should be replaced during a fuel pump repair, and the fuel tank should be checked and cleaned first. An instruction sheet comes with the pump.
