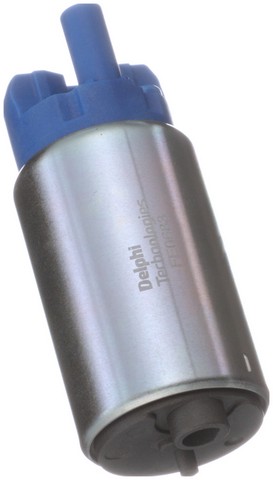

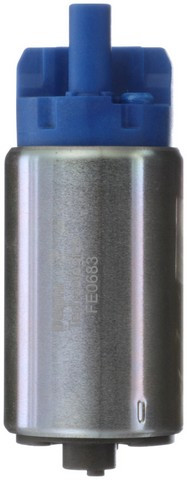

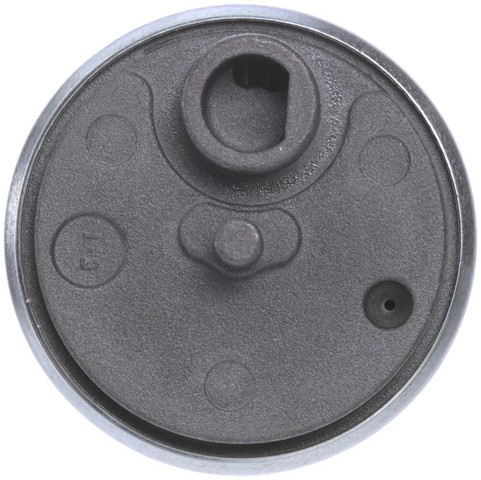

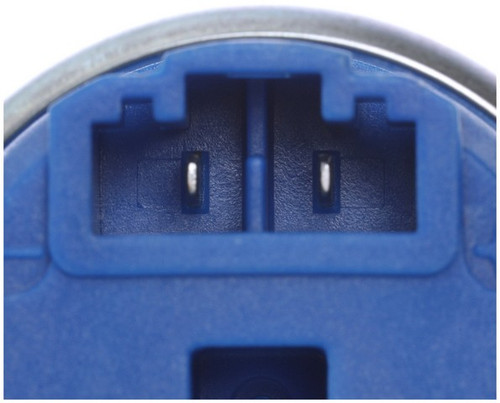

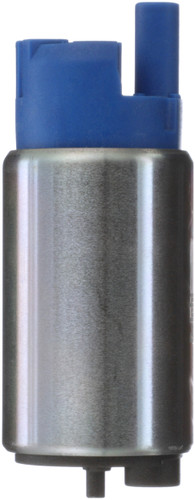

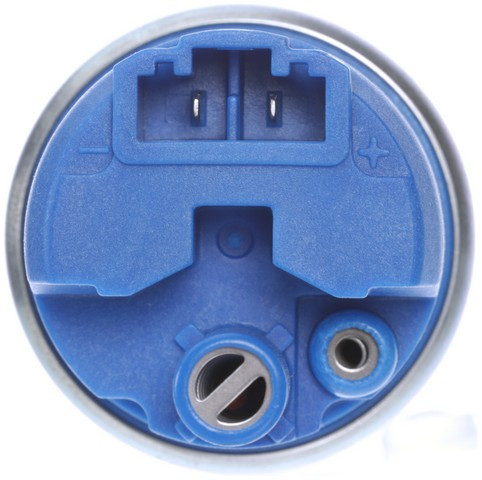

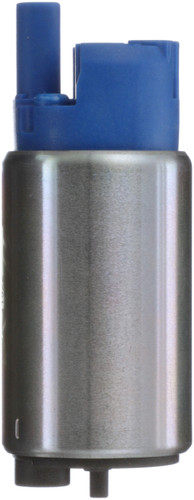

Delphi FE0683 electric fuel pump for the 2013-2016 Mazda CX-5 4-cylinder 2.0L, the 2014-2016 CX-5 4-cylinder 2.5L and other vehicles delivers fuel from the tank to the engine. The pump mounts inside the fuel tank.
- Designed to operate under extreme temperatures with quick engine starts
- Designed to restore fast pressure performance and system integrity with less energy
- Validated and tested pump
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi FE0683 electric fuel pump
- Fits: the 2013-2016 Mazda CX-5 4-cylinder 2.0L, the 2014-2016 CX-5 4-cylinder 2.5L and other vehicles
- Position: In-Tank
- Condition: New
Hard starting, a whine from the tank, or sputtering and stalling under load can point to a worn fuel pump. A clogged fuel strainer is another common cause, so these signs alone do not prove the pump is the problem.
Fits
The 2014-2020 Mazda 6 4-cylinder 2.5L, the 2013-2018 Mazda 3 4-cylinder 2.0L and the 2014-2018 3 4-cylinder 2.5L also fit this pump, along with more vehicles; each takes one. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: In-Tank
- Quantity per vehicle: 1
- Engine codes: L4-2.0L, L4-2.5L
Build and materials
- Condition: New
- Country of origin: Thailand
In the box

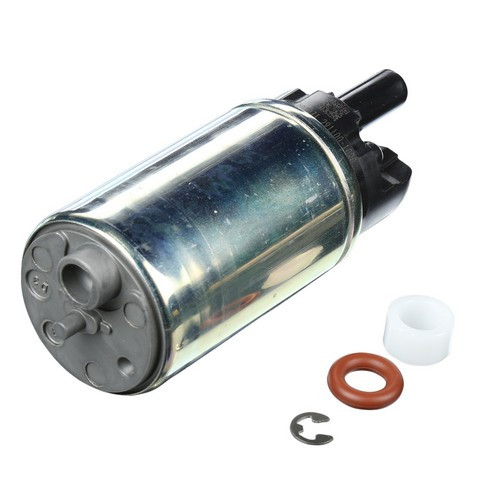

Electric fuel pump, retainer, seal, steel clip and instruction sheet.
Installation notes
- An instruction sheet comes with the pump for the installation steps.
- Replace the fuel strainer whenever the fuel pump is repaired.
- Check and clean the fuel tank during the repair.
Interchange: PE01-13-350
4020339 · CFE0683 · P76906 · E16466 · SP1462
This part cross-references / interchanges with the following part numbers:
4020339, CFE0683, P76906, E16466, PE01-13-350, SP1462
Frequently Asked Questions
Does the Delphi FE0683 fit the 2014-2020 Mazda 6 4-cylinder 2.5L?
Yes. Delphi FE0683 fits the 2014-2020 Mazda 6 4-cylinder 2.5L. For another model or engine, open the "Vehicles it fits" section and check there.
Does the FE0683 fuel pump come with a retainer and seal?
Yes. Delphi FE0683 comes with a retainer, a seal, a steel clip and an instruction sheet along with the electric fuel pump.
Is the FE0683 an in-tank pump?
Yes. This pump mounts inside the fuel tank, and each vehicle it fits takes one.
Which symptoms can a failing in-tank fuel pump cause?
Hard starting, a whine from the tank and sputtering or stalling under load. Fuel pressure testing needs the engine running, so a shop is the place for it.
Should I replace the fuel strainer when installing the Delphi FE0683?
Yes. Replace the fuel strainer whenever the fuel pump is repaired, and check and clean the fuel tank during the job. The instruction sheet in the box covers the steps.
