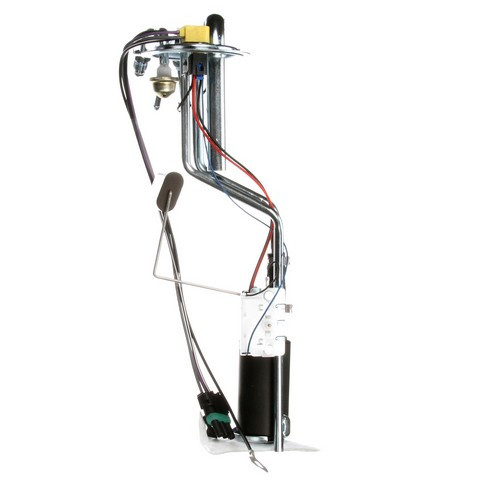

Delphi HP10000 fuel pump and sender assembly for the 1988-1995 Chevrolet C1500 V6 4.3L, V8 5.0L or 5.7L, the 1990-1993 C1500 V8 7.4L and other vehicles is a Delphi fuel pump that moves fuel from the tank to the engine. Its float arm reports the fuel level to the gauge, and the part is also listed as a fuel pump hanger assembly.
- Delphi pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration during vehicle operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Each assembly is validated and tested
Quick facts
- Part: Delphi HP10000 fuel pump and sender assembly
- Fits: the 1988-1995 Chevrolet C1500 V6 4.3L, V8 5.0L or 5.7L, the 1990-1993 C1500 V8 7.4L and other vehicles
- Condition: New
Long cranking, stalling or a fuel gauge that reads wrong can mean the pump or sender is worn. Before you replace it, rule out a blown fuse, a faulty relay or a restricted fuel filter, and have a shop test fuel pressure if you are unsure. If the pump is at fault, this Delphi fuel pump replacement covers it.
Fits
The 1988-1995 Chevrolet K1500 V6 4.3L, V8 5.0L or 5.7L, the 1988-1995 Chevrolet C2500 V6 4.3L, V8 5.0L or 5.7L and the 1991-1993 C2500 V8 7.4L are among the vehicles it fits, along with many other Chevrolet and GMC models. A 1991-1993 Chevrolet C2500 V8 7.4L takes one assembly.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump and sender assembly with float arm, one seal, one lock ring, two O-rings and one instruction sheet.
Installation notes
- An instruction sheet comes with the part for the steps.
- Check and clean the fuel tank before installing the new pump.
Interchange: 692-000 · 402-P3621S · 150096-A
25028610 · 25028611 · FLS1015 · 4010009 · 4010049 · 4017025 · E3621S · DHP10000 · F2732A · 66300 · HS283825 · P80000S · 19111396 · 25028499 · MPA30029 · C0100H · A30029 · FG01A · SP01A1H · SP01A2H · C5341002 · USEP3621S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
25028610, 25028611, FLS1015, 4010009, 4010049, 4017025, E3621S, DHP10000, F2732A, 66300, HS283825, P80000S, 692-000, 19111396, 25028499, MPA30029, C0100H, 402-P3621S, A30029, FG01A, SP01A1H, SP01A2H, 150096-A, C5341002, USEP3621S
Frequently Asked Questions
Does this C1500 fuel pump fit the 1990-1993 Chevrolet C1500 V8 7.4L?
Yes. Delphi HP10000 fits the 1990-1993 Chevrolet C1500 V8 7.4L and the 1988-1995 C1500 V6 4.3L, V8 5.0L or 5.7L. For a different truck, look up its year and engine in the "Vehicles it fits" section.
Does this Delphi fuel pump assembly include the float arm and lock ring?
Yes. Delphi HP10000 comes with the float arm, a seal, a lock ring, two O-rings and an instruction sheet.
Is the float on this fuel pump and sender assembly set to the right empty height?
Yes. Empty float height and float retention match OE specifications, so the gas gauge should read correctly.
Do the metal tubes on this fuel pump and sender assembly touch the fuel tank?
No. The metal tubes are routed so they do not contact the tank at any point, which removes noise and vibration during vehicle operation.
Does this fuel pump and sender assembly need anything done to the tank before it goes in?
Yes. The fuel tank should be checked and cleaned first, and an instruction sheet comes with the Delphi HP10000 for the installation steps.
