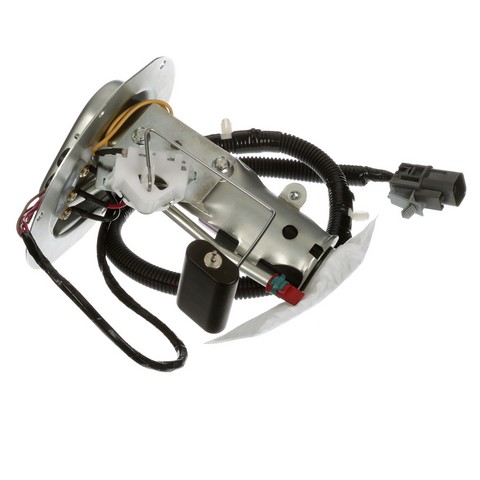

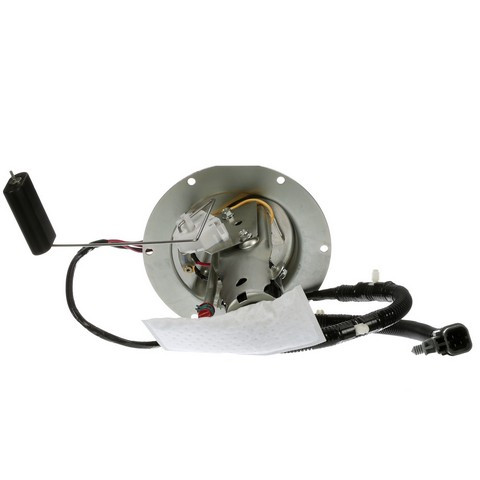

Delphi HP10211 fuel pump and sender assembly for the 1993-1997 Mercury Villager V6 3.0L moves fuel from the tank toward the engine and carries the float arm for the fuel gauge. This Delphi fuel pump assembly, also called a fuel pump hanger assembly, is built to Delphi's OE standards and validated and tested for its application.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Designed to restore fast pressure performance and system integrity while using less energy
Quick facts
- Part: Delphi HP10211 fuel pump and sender assembly
- Fits: 1993-1997 Mercury Villager V6 3.0L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or sender is wearing out. A clogged fuel filter, a weak relay or a wiring fault can be behind these signs too, so find the cause before buying.
Fits
This listing is one assembly for the 1993-1997 Mercury Villager V6 3.0L, which takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
- Condition: New
In the box
One fuel pump and sender assembly with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part for the steps.
Interchange: 950-3013 · F4XY 9A407-A · F8XZ 9H307-FA · F8XZ 9H307-FB · PFS-89
4010041 · E2067 · E2493S · CHP10211 · 69127 · P74144 · P77226S · P77228S · AFS0028P · AFS0070F · RE0028P · RE0070F · A30164 · SP1169 · SP2114H · USEP2493S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4010041, E2067, E2493S, CHP10211, 69127, P74144, P77226S, P77228S, 950-3013, AFS0028P, AFS0070F, RE0028P, RE0070F, F4XY 9A407-A, F8XZ 9H307-FA, F8XZ 9H307-FB, PFS-89, A30164, SP1169, SP2114H, USEP2493S
Frequently Asked Questions
Does this fuel pump fit the 1993-1997 Mercury Villager V6 3.0L?
Yes. Delphi HP10211 fits the 1993-1997 Mercury Villager V6 3.0L, which takes one.
Does this Delphi fuel pump replacement include the float arm and seal?
The Delphi HP10211 assembly comes with the float arm, a seal and an instruction sheet.
How does the Delphi pump handle extreme temperatures and quick starts?
This pump is designed to operate under extreme temperatures with quick engine starts. Its lower amperage draw also puts less load on the vehicle's electrical system.
Will the float on this assembly give a correct gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Should I clean the tank before installing this fuel pump and sender assembly?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with the part.
