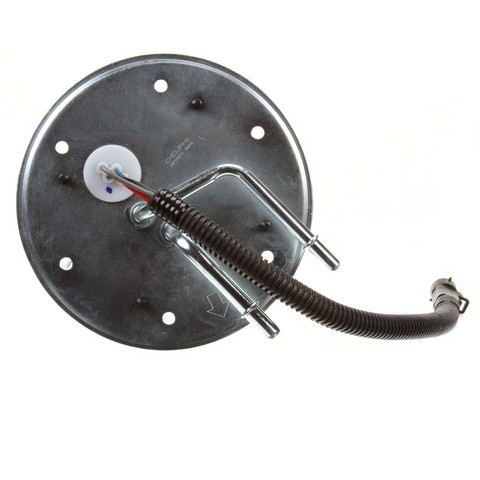

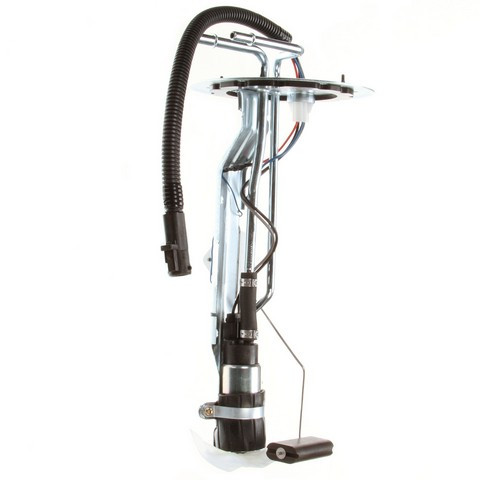

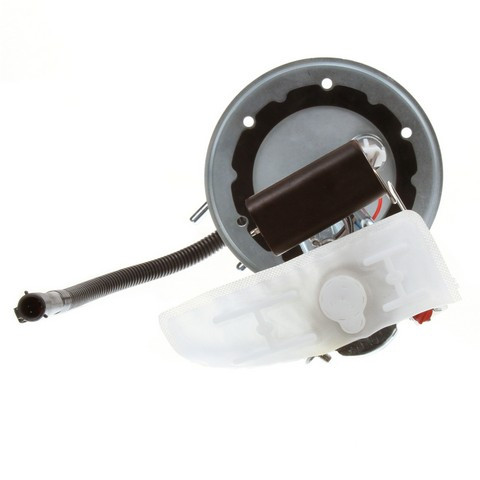

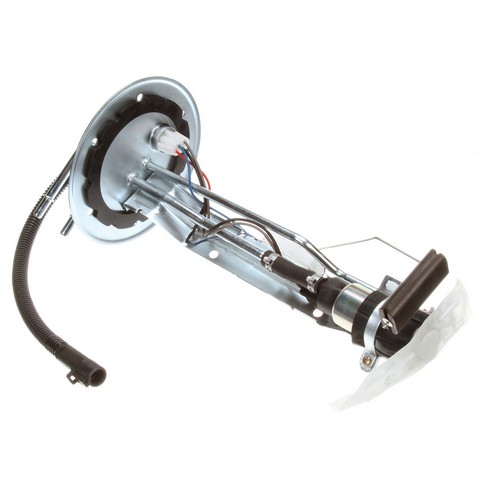

Keep fuel moving from the tank to the engine with the Delphi Fuel Pump Hanger Assembly HP10071, a specific-fit, in-tank assembly built to Delphi's OE standards. It drops in as a direct-fit replacement for the 1999-2003 Ford F-150 and the 2004 Ford F-150 Heritage in V6-4.2L, V8-4.6L, and V8-5.4L configurations.

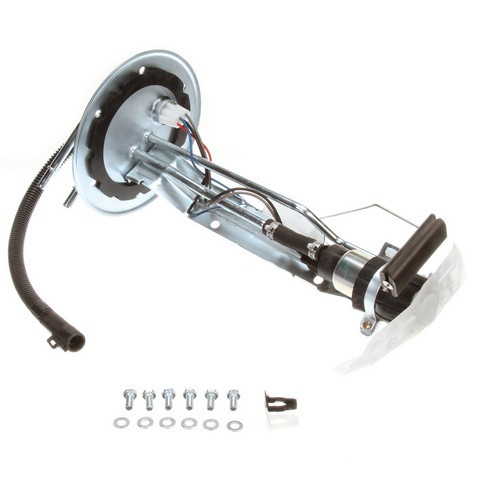

Complete assembly: includes the electric fuel pump, float arm, external strainer, and gasket/seal.
Routed metal tubes: positioned so they don't contact the tank, helping reduce operating noise and vibration.
OE-matched float: float height and retention are designed to match OE specifications for accurate fuel-gauge readings.
Efficient draw: lower amperage places less load on the vehicle's electrical system.
The unit uses a quick-connect outlet, a strainer-type inlet, and a four-terminal male pin connector in a round female housing. Mounting hardware is included — six bolts, six washers, and two retainer clips, plus an instruction sheet. A lock ring is not included; consult the vehicle service information for the correct retaining hardware and whether any fasteners may be reused. Delphi advises inspecting and cleaning the fuel tank during installation. Fuel type: gas. Country of origin: Mexico.
Interchange: Manufacturer part number HP10071.
Frequently Asked Questions
Which vehicles does this fuel pump hanger assembly fit?
It fits the 1999-2003 Ford F-150 and the 2004 Ford F-150 Heritage in the V6-4.2L, V8-4.6L, and V8-5.4L engines. See the Buyer's Guide tab to confirm your vehicle.
Does it include the fuel pump?
Yes. This assembly includes the electric fuel pump, float arm, external strainer, and gasket/seal, so you replace the hanger and pump together.
Is a lock ring included?
No, a lock ring is not included. Consult the vehicle service information for the correct retaining hardware and whether any original fasteners may be reused.
What mounting hardware comes in the box?
Mounting hardware is included: six bolts, six washers, two retainer clips, and an instruction sheet, along with the hanger assembly and float arm.
Where does this unit install?
It is an in-tank assembly with a quick-connect outlet and a strainer-type inlet. Delphi recommends inspecting and cleaning the fuel tank during installation.
