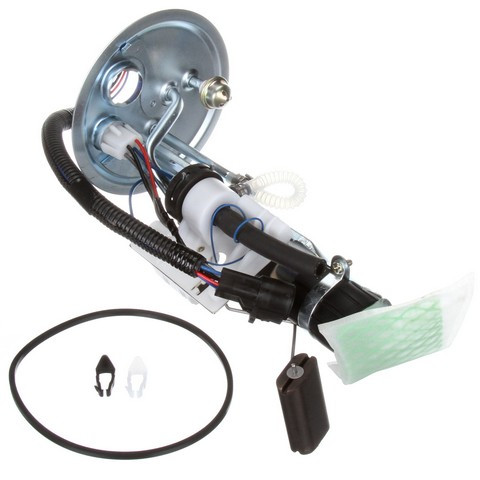

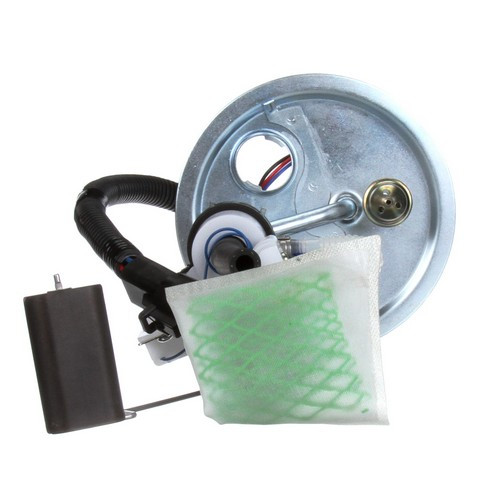

Delphi HP10230 fuel pump and sender assembly for the 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L moves fuel from the tank to the engine and carries the float arm for the gas gauge. This Delphi fuel pump comes mounted on its hanger, also listed as a fuel pump hanger assembly.
- Designed to operate in extreme temperatures with quick engine starts
- Metal tubes routed clear of the tank at every point to avoid noise and vibration while driving
- Empty float height and float retention matched to specification for correct gas gauge readings
- Designed to restore fast pressure performance and system integrity with less energy for pumping
- Lower amperage draw places less load on the electrical system
Quick facts
- Part: Delphi HP10230 fuel pump and sender assembly
- Fits: 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L
- Condition: New
A pump that is wearing out can bring hard starting, stalling or a gas gauge that reads wrong. Before you replace the assembly, rule out the fuel pump fuse, the relay and the wiring, since a fault in any of them can look the same.
Fits
It is a direct-fit replacement for the 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump and sender assembly with float arm, one seal, two retainer clips and an instruction sheet. This listing holds one assembly, and the truck takes one.
Installation notes
- Check and clean the fuel tank before installing.
- The instruction sheet in the box gives the steps.
Interchange: 951-0008 · YL5Z 9H307-DA · YL5Z 9H307-DC · YL5Z 9H307-DD · YL5Z 9H307-DF · YL5Z 9H307-DG · PFS-1010 · PFS-430
4011146 · E2269S · E2471 · DHP10230 · 67156 · 69134 · P74852S · RE0341S · C0079H · A30157 · SP1113 · SP2269H · USEP2269S
This part cross-references / interchanges with the following part numbers:
4011146, E2269S, E2471, DHP10230, 67156, 69134, P74852S, 951-0008, RE0341S, YL5Z 9H307-DA, YL5Z 9H307-DC, YL5Z 9H307-DD, YL5Z 9H307-DF, YL5Z 9H307-DG, PFS-1010, PFS-430, C0079H, A30157, SP1113, SP2269H, USEP2269S
Frequently Asked Questions
Is this Ford Ranger fuel pump right for the 2000-2001 Ranger 4-cylinder 2.5L?
Yes. Delphi HP10230 fits the 2000-2001 Ranger 4-cylinder 2.5L, and the truck takes one assembly.
Is this a 2000 Ford Ranger fuel pump replacement for the V6 3.0L or 4.0L?
Yes. Delphi HP10230 fits the 2000 Ford Ranger with either the V6 3.0L or the V6 4.0L engine.
What does this Delphi fuel pump assembly include besides the pump?
The fuel pump and sender assembly comes with its float arm, a seal, two retainer clips and an instruction sheet.
How does the float on this assembly relate to the gas gauge reading?
Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does the fuel tank need cleaning before this fuel pump and sender assembly goes in?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the assembly for the steps.
